🔧 Camry - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can add the right amount of fuel. Replacing it is usually quick because it sits on the air intake tube right next to the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the car OFF and keep the key/fob at least 10 feet away.
• ⚠️ Let the engine bay cool so you don’t burn your hands.
• ⚠️ Do not touch the sensor wire/film inside the MAF; it’s very delicate.
• ⚠️ If you disconnect the 12V battery, you may lose radio presets and the car may need a short relearn.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4" drive)
• Phillips #2 screwdriver
• Torx T20 screwdriver
• Flathead screwdriver (small)
• Inch-pound torque wrench (specialty)
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• Air intake tube clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and make sure the car is fully OFF.
• If you choose to disconnect power: use a 10mm socket to remove the 12V battery negative terminal, then isolate it so it can’t spring back. Optional, but reduces accidental shorts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

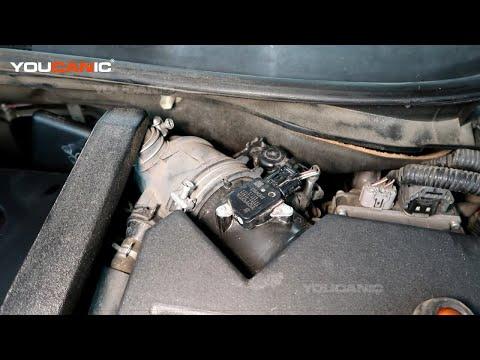

Step 1: Locate the MAF sensor

• Find the air filter box and the large black intake tube coming out of it.
• The MAF sensor is mounted in that tube (usually right after the air box) with an electrical connector.

Step 2: Unplug the MAF electrical connector

• Press the locking tab and pull the connector straight off.
• If it’s stuck, use a flathead screwdriver (small) to gently help the tab—don’t pry hard.

Step 3: Make working room (if needed)

• If your hands don’t fit well, loosen the intake tube clamp using a 10mm socket (or use a Phillips #2 screwdriver if it’s a screw-type clamp).
• Wiggle the tube slightly for access—don’t tear any rubber couplers.

Step 4: Remove the MAF sensor screws

• Use a Phillips #2 screwdriver if the screws are Phillips, or a Torx T20 screwdriver if they are Torx.
• Remove both screws and set them somewhere safe.
• When reinstalling: Torque to 1.7 Nm (15 in-lbs).

Step 5: Remove the old MAF sensor

• Gently pull the sensor straight out of the housing.
• Do not drop it, and do not touch the sensing element inside.
• Wipe the housing opening with shop towels only if dirty—don’t let anything fall inside the intake.

Step 6: Install the new MAF sensor

• Match the orientation of the old sensor and slide the new one into place (it should sit flat).
• Install the screws by hand first to avoid cross-threading.
• Tighten using a Phillips #2 screwdriver or Torx T20 screwdriver, then finish with an inch-pound torque wrench (specialty): Torque to 1.7 Nm (15 in-lbs).

Step 7: Reconnect intake tube and plug the connector back in

• If you loosened the intake tube, re-seat it fully and tighten the clamp using a 10mm socket (or Phillips #2 screwdriver depending on clamp type).
• Push the electrical connector onto the MAF until it clicks.

Step 8: Reconnect 12V battery (if disconnected)

• Reinstall the negative terminal and tighten using a 10mm socket.
• Make sure the terminal is fully seated and doesn’t rotate by hand.

---

✅ After Repair

• Start your Camry and let it idle for 2-3 minutes.
• Check that the idle is smooth and the check engine light stays off.
• If you have a scan tool, clear any stored MAF-related codes and verify none return.
• Take a short test drive and recheck that the intake tube is fully clamped (no hissing/whistling).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $60-$250 (parts only)

You Save: $120-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
