🔧 RAV4 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air enters your engine so the computer can add the right amount of fuel. When it fails or gets contaminated, you can get rough idle, hesitation, poor MPG, or a check engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the ignition OFF and remove the key before unplugging the sensor.
• ⚠️ Let the engine cool so you don’t burn yourself on hot parts.
• ⚠️ If you disconnect the battery, you may lose radio presets (normal).
• ⚠️ Never touch the sensing element inside the MAF (it’s very delicate).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" drive ratchet
• 3" socket extension
• Phillips #2 screwdriver
• Security Torx T20 screwdriver
• Flat-blade screwdriver (small)
• Torque wrench (in-lb)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring / seal (if equipped) - Qty: 1
• Mass air flow sensor cleaner (aerosol) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground and set the parking brake.
• Open the hood and locate the air box and intake tube.
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Find the black plastic air filter box and the large intake tube that runs toward the engine.
• The MAF sensor is mounted in the intake air housing right after the air box and has an electrical connector on it.

Step 2: Unplug the electrical connector

• Use a flat-blade screwdriver (small) only if needed to gently help lift the locking tab.
• Pull the connector straight off (don’t pull on the wires). Wiggle gently if it’s stuck.

Step 3: Remove the MAF sensor screws

• Look at the two screws holding the sensor in place.
• If they are Phillips-head, remove them with a Phillips #2 screwdriver.
• If they are tamper-resistant/star-shaped, remove them with a Security Torx T20 screwdriver.
• Keep the screws safe—they’re easy to drop.

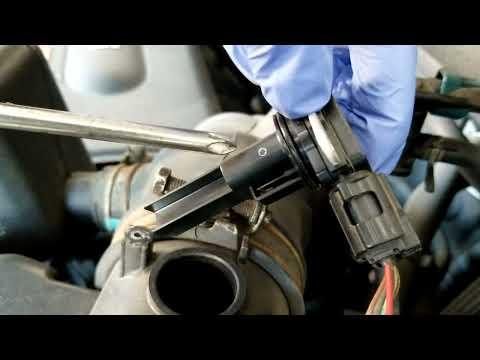

Step 4: Remove the MAF sensor

• Pull the sensor straight out by the plastic body.
• If there is an O-ring/seal, note how it sits so the new one goes in the same way.
• Do not touch the tiny sensing element inside the opening.

Step 5: (Optional) Clean the housing seating area

• Use MAF sensor cleaner (aerosol) to lightly clean the bore where the sensor seats, if dirty.
• Let everything air-dry completely before reassembly.

Step 6: Install the new MAF sensor

• If applicable, install the new MAF sensor O-ring / seal onto the sensor.
• Slide the sensor in straight and fully seated.
• Install the screws by hand first to avoid cross-threading.
• Use a torque wrench (in-lb) to tighten the MAF screws: Torque to 18 in-lbf (2.0 N·m).

Step 7: Reconnect the connector (and battery if disconnected)

• Push the electrical connector on until it clicks.
• If you disconnected the battery, reconnect the negative terminal using a 10mm socket (snug, do not overtighten).

---

✅ After Repair

• Start the engine and let it idle for 3-5 minutes.
• Check for a smooth idle and make sure the connector is fully latched.
• If you had a check engine light, clear codes with a scan tool, or drive a few trips to see if it stays off.
• Test drive: light acceleration first, then normal driving. If it stumbles, recheck the connector and air intake clamps for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $70-$250 (parts only)

You Save: $110-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
