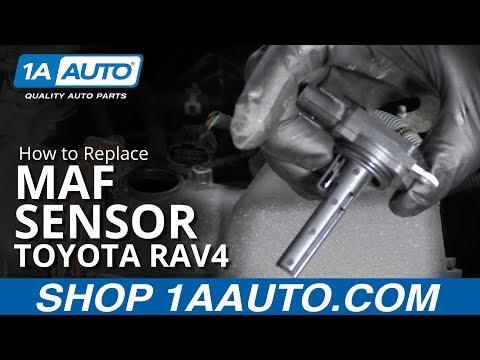

🔧 RAV4 - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air is entering your engine so the computer can add the right amount of fuel. If it fails or gets contaminated, you may get a check engine light, rough idle, or poor fuel economy. This job is quick because the sensor sits in the intake tube right next to the air filter box.

Difficulty Level: Beginner | Estimated Time: 0.3-0.7 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns around the radiator and intake area.
• ⚠️ Turn the ignition fully OFF and keep the key away from the vehicle while unplugging sensors.
• ⚠️ If you disconnect the battery, use a 10mm wrench and remove the negative terminal first.
• ⚠️ Don’t touch the sensing element inside the MAF—it's delicate and can be ruined by fingers or tools.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• Phillips #2 screwdriver
• Torx T20 screwdriver
• Pick tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring seal - Qty: 1
• Mass air flow sensor cleaner spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool.
• If you choose to disconnect the battery: use a 10mm wrench to remove the negative (-) terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Use a flashlight to find the sensor mounted in the intake tube right after the air filter box.
• You’ll see an electrical connector plugged into it and two small screws holding it in.

Step 2: Unplug the electrical connector

• Press the connector lock tab by hand and pull the connector straight off.
• If the tab is stubborn, use a pick tool to gently lift the lock while pulling. (A pick tool is a small hook used to release clips without breaking them.)
• Don’t pull on the wires.

Step 3: Remove the MAF sensor screws

• Remove the two retaining screws using a Phillips #2 screwdriver.
• If your screws are Torx instead of Phillips, remove them using a Torx T20 screwdriver.
• Set the screws somewhere safe so they don’t fall into the engine bay.

Step 4: Pull the MAF sensor out

• Gently wiggle and pull the sensor straight out by hand.
• Inspect the sealing area: there is usually an O-ring seal. If it’s hard, cracked, or flattened, replace it.
• If you’re re-using the old sensor temporarily, spray only MAF sensor cleaner into the sensing area and let it air-dry completely.

Step 5: Install the new MAF sensor

• Make sure the O-ring is seated correctly on the sensor.
• Slide the sensor straight into the intake tube, keeping it aligned so it doesn’t pinch the O-ring.
• Reinstall the screws using a Phillips #2 screwdriver or Torx T20 screwdriver.
• Torque to 3.0 Nm (27 in-lbs)

Step 6: Reconnect the connector and battery (if removed)

• Push the electrical connector on until it clicks.
• If you disconnected the battery, reconnect the negative (-) terminal using a 10mm wrench.

---

✅ After Repair

• Start the engine and let it idle for 2–3 minutes. A slightly rough idle at first can be normal.
• Check that the check engine light is off. If it’s on, the connector may not be fully seated.
• If you have a code reader, clear any stored MAF-related codes and verify they do not return.
• Take a short 10-minute drive and confirm normal acceleration and idle.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $90-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.7 hours.

---
