🔧 Tacoma - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures how much air your engine is breathing so the computer can set the right fuel mixture. If it’s failing, you may get rough idle, hesitation, poor MPG, or a check-engine light.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine; hot intake parts can burn you.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and to protect the sensor electronics.
• ⚠️ Do not touch the sensing element inside the MAF; it’s delicate and can be damaged easily.
• ⚠️ Keep dirt out of the intake tube; anything that falls in can be sucked into the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension
• Phillips #2 screwdriver
• Torx T20 security bit
• Small flathead screwdriver
• Inch-pound torque wrench (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring seal - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in neutral, and set the parking brake.
• Open the hood and let the engine cool.
• Have a clean rag ready so you can cover the intake opening if needed.
• Know your fastener type: the MAF is usually held by 2 screws that are either Phillips or security Torx.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket with a 1/4" ratchet to loosen the negative (-) battery terminal clamp.
• Lift the clamp off and tuck it aside so it can’t spring back onto the post.
• When reinstalling later: Torque to 5.4 Nm (48 in-lbs)

Step 2: Locate the MAF sensor

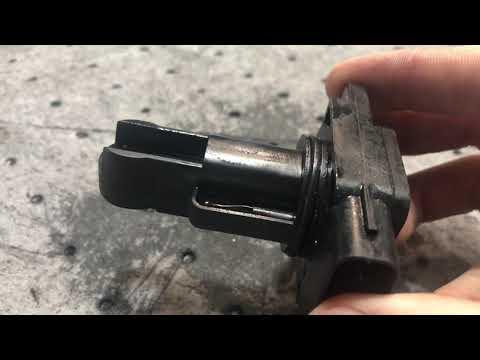

• Look at the air intake tube right after the air filter box; the MAF is the small rectangular sensor with an electrical connector.
• Don’t remove the whole air box.

Step 3: Unplug the MAF electrical connector

• Press the connector lock tab and pull the plug straight off.
• If the tab is stubborn, use a small flathead screwdriver gently to help lift the lock while you pull. (Be gentle—don’t break the tab.)

Step 4: Remove the MAF sensor screws

• Remove the two mounting screws using either a Phillips #2 screwdriver or a Torx T20 security bit (use whichever matches your screws).
• Set the screws somewhere safe; they’re easy to drop.

Step 5: Remove the old sensor

• Pull the sensor straight out of the housing.
• Check that the O-ring seal comes out with it and isn’t stuck in the bore.
• Do not touch the sensing element inside the sensor opening.

Step 6: Install the new MAF sensor

• Lightly seat the new O-ring seal on the new sensor (or confirm it’s already installed).
• Install the sensor in the same orientation as the old one (airflow direction should point toward the engine if marked).
• Install the two screws by hand first to avoid cross-threading.
• Use an inch-pound torque wrench (specialty) to tighten the screws evenly: Torque to 2.0 Nm (18 in-lbs)

Step 7: Reconnect the connector and battery

• Push the connector on until it clicks.
• Reconnect the negative battery clamp using the 10mm socket and 1/4" ratchet.
• Torque to 5.4 Nm (48 in-lbs)

---

✅ After Repair

• Start your Tacoma and let it idle for 2-3 minutes. The idle may hunt briefly while it relearns.
• Check that the check-engine light stays off and the idle is smooth.
• Take a short test drive and verify there’s no hesitation on light acceleration.
• If the check-engine light is on, scan for codes; a loose connector or air leak at the intake tube can trigger MAF-related codes.

---

💰 DIY vs Shop Cost

Shop Cost: $200-$450 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $120-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
