🔧 Corolla - Mass Air Flow (MAF) Sensor Replacement

The MAF sensor measures the air coming into your engine so the computer can add the right amount of fuel. If it fails, you can get rough idle, hesitation, poor MPG, or a check-engine light. Replacing it is a simple bolt-on job on your Corolla’s air filter housing.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🧤 Work with the engine off and cool to avoid burns.
• 🧯 Do not spray or touch the sensing element (the delicate “wire/film” inside).
• 🔌 Disconnecting the battery is recommended to prevent accidental shorts and to reset learned airflow values.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm wrench
• 1/4" drive ratchet
• 1/4" drive extension 3"
• Phillips #2 screwdriver
• Torx T20 security bit (specialty)
• Inch-pound torque wrench (specialty)
• Small flat trim tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAF sensor O-ring/seal - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• Open the hood and locate the air filter box on the driver-side of the engine bay.
• If you’ll disconnect the battery: use a 10mm wrench to remove the negative (-) cable and tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

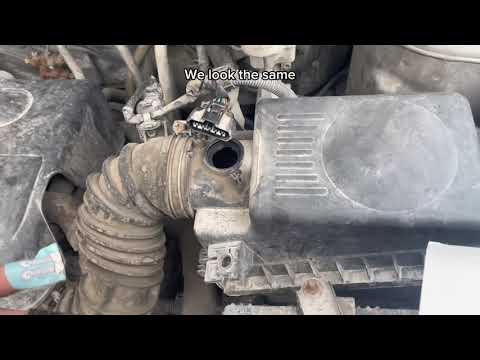

Step 1: Locate the MAF sensor

• Find the sensor plugged into the air filter housing/air intake tube area (it has an electrical connector and is held in by 2 small screws).
• Use a flashlight built into your phone if needed to see the screw heads clearly.

Step 2: Unplug the electrical connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, use a small flat trim tool to gently help lift the tab while you pull. Don’t pry on the wires.

Step 3: Remove the MAF mounting screws

• Look closely at the screw head and use the matching tool:
• Remove with a Phillips #2 screwdriver (if Phillips head), OR remove with a Torx T20 security bit (specialty) on a 1/4" drive ratchet (if tamper-proof Torx).
• Set the screws aside where they can’t fall into the engine bay.

Step 4: Pull the sensor out carefully

• Gently twist and pull the MAF straight out of the housing.
• Do not touch the inside sensing element. It’s very easy to damage.
• Remove the old O-ring/seal if it stayed behind on the housing or on the old sensor.

Step 5: Install the new MAF sensor

• Lightly seat the new O-ring/seal onto the new sensor (or into the housing—match how the old one was installed).
• Slide the sensor into place the same direction as the old one (do not force it).
• Start both screws by hand first to avoid cross-threading.
• Tighten the screws using a Phillips #2 screwdriver or Torx T20 security bit (specialty).
• Final tighten with an inch-pound torque wrench (specialty): Torque to 27 in-lb (3.0 N·m).

Step 6: Reconnect the connector and battery

• Push the connector on until it clicks.
• If using, apply a tiny amount of dielectric grease (optional) to the connector seal area only (not inside the sensor opening).
• If disconnected, reconnect the negative (-) battery cable using a 10mm wrench and tighten securely.

---

✅ After Repair

• 🔍 Start the engine and let it idle for a few minutes. The idle may be slightly different at first while the computer relearns.
• Check that the check-engine light stays off (or doesn’t come back on after a short drive).
• Take a 10-15 minute test drive with gentle acceleration, then recheck for any warning lights.
• If the light returns, you likely have a stored code and should scan it (common causes are connector not fully clicked, wrong part, or an intake air leak).

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $90-$300 (parts only)

You Save: $130-$150+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
