🔧 1500 - MAP Sensor Replacement

Your 1500 does not use a traditional MAF sensor. It uses manifold absolute pressure sensors instead, so the correct repair is replacing the MAP sensor if you have an airflow-related code or drivability issue. This job is straightforward, but the sensor and wiring are easy to damage if you rush it.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Work with the engine off and cool.
• Disconnect the negative battery cable before unplugging sensors.
• Do not pull on the wiring harness; release the connector lock first.
• Keep dirt out of the intake opening while the sensor is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 1/4-inch ratchet
• Extension bar
• Trim tool
• Flat-blade screwdriver
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• MAP sensor - Qty: 1
• MAP sensor O-ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key fob from the vehicle.
• Let the engine cool fully before touching the intake area.
• Disconnect the negative battery cable before starting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power

• Use an 8mm socket to remove the negative battery cable from the battery terminal.
• Move the cable aside so it cannot spring back and touch the terminal.

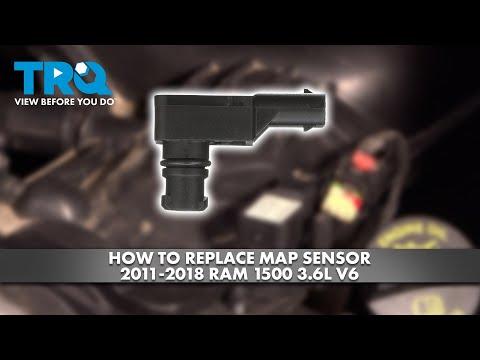

Step 2: Locate the MAP sensor

• Open the hood and find the sensor mounted on the intake manifold or intake air tract.
• It is a small electrical sensor with a connector and usually one retaining screw.
• Tip: Trace the wiring plug first.

Step 3: Unplug the sensor

• Use a flat-blade screwdriver or trim tool to release the connector lock if needed.
• Press the tab and pull the connector straight off the sensor.
• Do not twist the connector side to side.

Step 4: Remove the sensor

• Use an 8mm socket and 1/4-inch ratchet with an extension bar to remove the retaining screw.
• Pull the sensor straight out of the housing.
• Remove the old MAP sensor O-ring if it stays behind.

Step 5: Install the new sensor

• Lightly seat the new MAP sensor O-ring on the replacement sensor.
• Insert the new sensor straight into place.
• Install the retaining screw and Torque to 4 Nm (35 in-lbs).

Step 6: Reconnect the wiring and battery

• Push the connector onto the sensor until it clicks.
• Reinstall the negative battery cable with an 8mm socket.
• Make sure the cable is tight and secure.

---

✅ After Repair

• Start the engine and let it idle.
• Check for a check-engine light or rough idle.
• If you have a scan tool, clear any stored codes.
• Take a short road test and confirm normal throttle response.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $25-$80 (parts only)

You Save: $125-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
