🔧 Wrangler - Intake Air Sensor Replacement (MAF/MAP Clarification)

Your Wrangler’s 3.6L does not use a traditional Mass Air Flow (MAF) sensor. It uses a MAP sensor (Manifold Absolute Pressure) and an IAT sensor (Intake Air Temperature) to calculate airflow.

Quick check: Are you trying to replace the MAP sensor on the intake manifold, or the IAT sensor in the intake tube/air box duct? (Most “MAF” complaints on your Wrangler are actually the MAP.)

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool before working near the intake manifold.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and fault codes.
• ⚠️ Don’t pull on wiring; always release the connector lock first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 1/4" drive extension (3"-6")
• Torx T20 bit socket
• Flat trim tool
• Torque wrench (inch-pound)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• MAP sensor - Qty: 1
• MAP sensor O-ring (if not included with sensor) - Qty: 1
• IAT sensor - Qty: 1
• IAT sensor O-ring (if not included with sensor) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove the key from the vehicle.
• Use a 10mm socket to disconnect the negative (-) battery cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which sensor you’re replacing

• MAP sensor location: On top of the intake manifold (small sensor with an electrical connector, held by a Torx screw).
• IAT sensor location: In the plastic intake tube/ducting near the air box/throttle body area (small sensor with an electrical connector).

Step 2: Remove the engine cover (if equipped)

• Lift the cover straight up using your hands; it’s held by rubber grommets.
• If it resists, pull evenly at corners.

Step 3 (MAP): Unplug the MAP sensor connector

• Use a flat trim tool to gently lift the connector lock (if present), then pull the connector straight off.
• Inspect for oil or corrosion in the connector.
• Don’t pry on the sensor body.

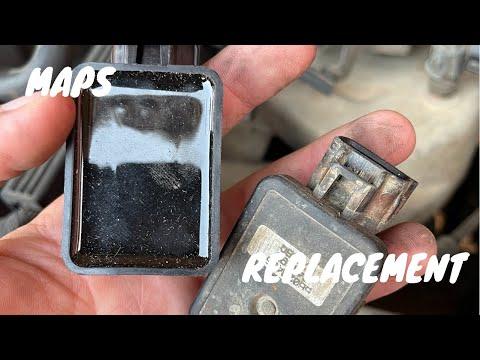

Step 4 (MAP): Remove the MAP sensor

• Use a Torx T20 bit socket with a 1/4" ratchet and extension to remove the retaining screw.
• Pull the sensor straight up to remove it from the manifold.
• Remove the old O-ring if it stayed in the manifold (an O-ring is a rubber sealing ring).

Step 5 (MAP): Install the new MAP sensor

• Lightly lubricate the new O-ring with a clean fingertip of engine oil if it’s dry, then seat it on the sensor.
• Push the MAP sensor straight into place until fully seated.
• Install the retaining screw by hand first, then use the torque wrench (inch-pound) to finish: Torque to 5 N·m (44 in-lb).
• Apply a tiny amount of dielectric grease to the connector seal (dielectric grease helps keep moisture out), then reconnect the plug until it clicks.

Step 6 (IAT, if that’s the one you meant): Unplug and remove the IAT sensor

• Release the connector lock and unplug the IAT connector by hand.
• If retained by a screw: use a Torx T20 bit socket to remove it.
• If retained by a twist-lock: rotate the sensor slightly by hand and pull it straight out.
• Remove and replace the IAT O-ring if applicable.

Step 7 (IAT): Install the new IAT sensor

• Seat the new O-ring, then push the sensor in squarely.
• If it uses a screw, tighten with a torque wrench (inch-pound): Torque to 3 N·m (27 in-lb).
• Reconnect the electrical connector until it clicks.

Step 8: Reassemble and reconnect the battery

• Reinstall the engine cover (if removed) by pressing it down into the grommets.
• Reconnect the negative battery cable using the 10mm socket and tighten securely.

---

✅ After Repair

• Start your Wrangler and let it idle for 2-3 minutes.
• Check for a rough idle, check engine light, or hissing/vacuum leak sound around the intake.
• If you had a check engine light before, clear codes with a scan tool if available, then verify they don’t return.
• Take a short test drive and confirm normal throttle response.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$300 (parts + labor)

DIY Cost: $30-$120 (parts only)

You Save: $30-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
