🔧 Wrangler - Air Metering Sensor Replacement (MAF vs MAP/IAT)

Your Wrangler’s 3.8L does not use a Mass Air Flow (MAF) sensor from the factory. It uses a MAP sensor (manifold absolute pressure) to calculate engine load, and an IAT sensor (intake air temperature) in the intake tube/airbox area.

If you were told “MAF,” you almost always need to replace/inspect the MAP and/or IAT sensor instead. This guide shows both procedures.

Difficulty Level: Beginner | Estimated Time: 0.3-0.8 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns around the intake and throttle body.
• ⚠️ Keep tools/clothing clear of the fan and belt area.
• ⚠️ Disconnect the battery if you’re prone to bumping the starter wiring: remove the negative (-) cable first.
• ⚠️ Do not use oily cleaners on sensors unless labeled sensor-safe.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 1/4" drive ratchet
• 1/4" drive extension (3")
• 8mm socket
• 10mm socket
• Torx T20 bit
• Flat-blade screwdriver (medium)
• Needle-nose pliers
• Shop towel
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• MAP sensor - Qty: 1
• IAT sensor - Qty: 1
• Dielectric grease (electrical connector safe) - Qty: 1
• Throttle body/intake cleaner (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park on level ground, transmission in neutral, and set the parking brake.
• Open the hood and locate the intake tube from the air box to the throttle body.
• If disconnecting the battery: use a 10mm socket and remove the negative (-) cable, then isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which sensor you’re replacing (MAP vs IAT)

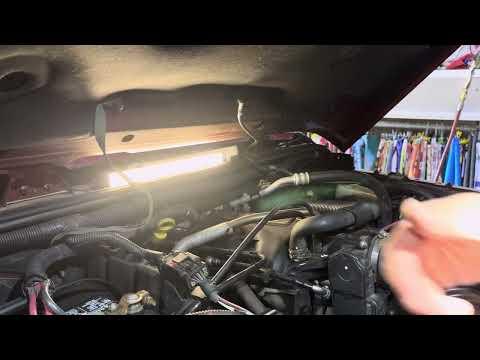

• MAP sensor: mounted on the intake manifold (usually near the throttle body area) with an electrical connector and a small mounting screw/bolt.
• IAT sensor: mounted in the plastic intake tube/airbox area, twists/locks into place with an electrical connector.
• If you have a trouble code, share it.

Step 2 (MAP path): Unplug the MAP sensor connector

• Press the connector lock tab and pull the connector straight off.
• If it’s stuck, use needle-nose pliers gently on the tab (don’t pull on the wires).
• Wipe dirt away with a shop towel so nothing falls into the port.

Step 3 (MAP path): Remove the MAP sensor

• Remove the mounting fastener using a Torx T20 bit (some are hex—use an 8mm socket if yours is hex).
• Pull the sensor straight out with a gentle wiggle.
• Inspect the sensor O-ring (the rubber seal). If it’s damaged, replace the sensor (most replacements include a new seal).

Step 4 (MAP path): Install the new MAP sensor

• Lightly clean the mounting area with a shop towel. Do not drop debris into the opening.
• Push the new sensor straight in until it fully seats.
• Install the fastener using a Torx T20 bit (or 8mm socket if equipped) and Torque to 4 Nm (35 in-lbs).
• Apply a tiny amount of dielectric grease to the connector seal (not the metal pins), then reconnect the plug until it clicks.

Step 5 (IAT path): Access the IAT sensor on the intake tube

• If needed for access, loosen the intake tube clamp at the throttle body using an 8mm socket or flat-blade screwdriver (medium).
• Move the tube slightly for room—don’t force it.

Step 6 (IAT path): Unplug and remove the IAT sensor

• Press the connector lock tab and remove the plug.
• Twist the sensor counterclockwise and pull it out (it’s a twist-lock style on most setups).
• Make sure the old rubber seal/O-ring comes out with the sensor (don’t leave it stuck in the tube).

Step 7 (IAT path): Install the new IAT sensor

• Insert the new sensor into the opening, then twist clockwise until it locks.
• Reconnect the electrical plug until it clicks.
• Re-tighten the intake clamp using an 8mm socket or flat-blade screwdriver (medium) (snug—do not strip the clamp).

Step 8: Clear codes and verify the fix

• If you disconnected the battery, reconnect the negative cable using a 10mm socket.
• Use an OBD2 scan tool to clear any stored codes.
• Start the engine and let it idle for 2–3 minutes. Watch for rough idle, check engine light, or hissing (vacuum leak sound).

---

✅ After Repair

• Test drive 10–15 minutes with a few gentle accelerations.
• Re-scan using an OBD2 scan tool to confirm no codes return.
• If you still have lean codes (P0171/P0174), inspect for cracked intake tube, loose clamps, or vacuum leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $150-$350 (parts + labor)

DIY Cost: $30-$120 (parts only)

You Save: $120-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.3-0.8 hours.

---
