🔧 Niro - Mass Air Flow (MAF) Sensor Replacement

On your Niro, many “MAF problems” are actually caused by a different sensor (usually the MAP sensor on the intake manifold). I’ll show you how to identify which sensor you have, then how to replace it without damaging the connector or the sensor seal.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Turn the car fully OFF and keep the smart key 10+ feet away.
• ⚠️ Do not touch any orange high-voltage cables or connectors.
• ⚠️ Work on a cool engine; hot intake parts can burn you.
• ⚠️ If you’ll be tugging on wiring, disconnect the 12V negative terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 3" extension (1/4")
• Phillips screwdriver #2
• Flat trim tool
• Pick tool (small)
• Torque wrench (inch-pound)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow (MAF) sensor - Qty: 1
• MAP sensor O-ring (if replacing MAP instead of MAF) - Qty: 1
• MAF-safe sensor cleaner (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground and power the car OFF.
• Open the hood and let the engine bay cool down.
• If disconnecting 12V: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Quick ID check (so you replace the right part): the MAF is usually mounted in the air duct near the air box; the MAP is usually bolted into the intake manifold and uses an O-ring seal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify whether you have a MAF sensor or a MAP sensor

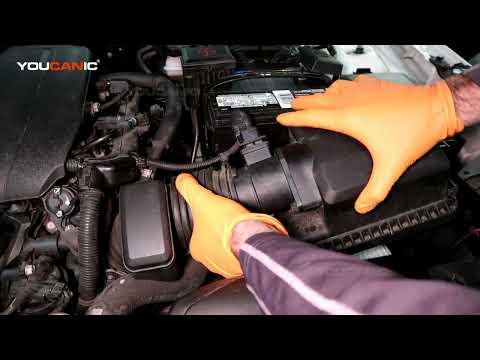

• Look at the air intake tube coming off the air box.
• If you see a small sensor body inserted into the tube with an electrical plug: that’s the likely MAF.
• If there is no sensor in the tube, look on the intake manifold for a small sensor with a plug and a single hold-down bolt: that’s the MAP.
• Tell me which location you see if unsure.

Step 2A: Replace the MAF sensor (if equipped)

• Press the connector lock tab and unplug the sensor. Use a flat trim tool gently if the tab is stubborn (don’t pry hard).
• Remove the MAF mounting screws using a Phillips screwdriver #2 (some versions use small bolts; if yours does, use a 10mm socket).
• Pull the sensor straight out. Avoid touching the sensing element inside.
• Install the new sensor in the same orientation and start the screws by hand.
• Tighten screws evenly: Torque to 2.5-3.5 Nm (22-31 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 2B: Replace the MAP sensor (common on the Niro)

• Unplug the MAP sensor connector by pressing the lock tab. Use a pick tool (small) only to lift the tab slightly if needed.
• Remove the MAP hold-down bolt using a 10mm socket, 1/4" ratchet, and 3" extension.
• Twist and pull the sensor straight out. The O-ring may feel stuck.
• Inspect the O-ring. Replace it if it’s flat, torn, or hard.
• Lightly lubricate the O-ring with a clean film of engine oil (finger wipe only), then reinstall the sensor straight in.
• Reinstall the bolt: Torque to 8-10 Nm (71-89 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 3: Reconnect power (if disconnected)

• If you disconnected the 12V battery, reinstall the negative cable using a 10mm socket.
• Snug it firmly: Torque to 5-6 Nm (44-53 in-lbs).

---

✅ After Repair

• Start the car and let it idle for 1-2 minutes. Confirm idle is smooth.
• If you had a check engine light, clear codes (or it may clear after a few drive cycles if the issue is fixed).
• Test drive 10-15 minutes and verify no warning lights return.
• If codes return (like P0101/P0102/P0103/P0106), check for cracked intake tubing, loose clamps, or a dirty throttle body.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $60-$200 (parts only)

You Save: $120-$150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
