🔧 Mass Air Flow (MAF) Sensor - Replacement

The MAF sensor on your Beetle measures incoming air so the engine computer can set fuel delivery correctly. If it fails, you may see rough idle, reduced power, poor fuel economy, or a check engine light. Replacing it is usually a quick job on the intake tube or air box.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Turn the ignition off and remove the key before unplugging the sensor.
• Let the engine cool if the intake tube or air box is hot.
• Do not touch the sensing element inside the MAF sensor.
• If the intake duct must be loosened, make sure all clamps are fully seated during reassembly to avoid unmetered air leaks.
• Battery disconnect is not usually required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Torx T20 screwdriver
• Torx T25 screwdriver
• Flathead trim tool
• 1/4-inch ratchet
• 7mm socket
• 10mm socket
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow sensor - Qty: 1
• Intake duct clamp - Qty: 1
• Air intake seal or O-ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and wait at least 2 minutes before disconnecting the sensor.
• Open the hood and locate the air filter housing and intake tube.
• Make sure the replacement sensor matches the connector shape and mounting style.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• Open the hood and find the MAF sensor in the air intake tract, usually near the air filter box or on the intake tube.
• Look for the electrical connector first.

Step 2: Remove the sensor connector

• Use a flathead trim tool to lift the connector lock, if equipped.
• Press the release tab and unplug the connector by hand.
• Do not pull on the wires.

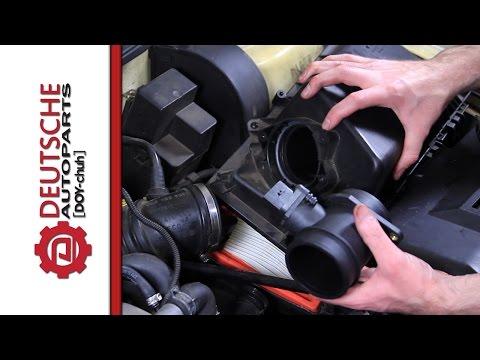

Step 3: Remove the MAF sensor

• Use a Torx T20 screwdriver or Torx T25 screwdriver to remove the sensor screws.
• Lift the sensor straight out of the housing.
• Check the opening for dirt or damaged seals.

Step 4: Install the new sensor

• Place the new MAF sensor in the same orientation as the old one.
• Use the Torx T20 screwdriver or Torx T25 screwdriver to install the screws snugly.
• Torque to 3-4 Nm (27-35 in-lbs).
• Do not overtighten the plastic housing.

Step 5: Reconnect the electrical connector

• Push the connector on until it clicks.
• Reinstall the lock tab, if equipped.
• Make sure the connector is fully seated.

Step 6: Recheck the intake system

• If you loosened the intake duct, use the 7mm socket or 10mm socket to tighten the clamp.
• Check that all hoses and clamps are secure.
• Torque to 5-7 Nm (44-62 in-lbs) for small intake clamps if a spec is provided on the clamp style.

---

✅ After Repair

• Start the engine and let it idle.
• Check for a smooth idle and no intake air leaks.
• If the check engine light was on, clear codes with a scan tool and road test the vehicle.
• Drive gently for a few miles so the computer can relearn airflow values.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$380 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $110-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
