🔧 Renegade - Mass Air Flow (MAF) Sensor Replacement

Your Renegade’s 2.4L engine typically does not use a traditional MAF sensor like many other vehicles. It usually calculates airflow using the MAP sensor (manifold absolute pressure) and an IAT sensor (intake air temperature), which people often call a “MAF” by mistake.

Assumption: You’re replacing the sensor in the air intake tube/airbox area (commonly the IAT sensor) or the MAP sensor on the intake manifold.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool engine to avoid burns.
• ⚠️ Turn ignition OFF and keep the key fob away from the vehicle.
• ⚠️ If you disconnect electrical connectors, pull on the connector body, not the wires.
• ⚠️ Battery disconnect is not required, but it’s OK to disconnect the negative terminal if you want extra safety.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4")
• Torx T20 driver
• Torx T25 driver
• Flat-blade screwdriver (small)
• Pick tool (small)
• OBD2 scan tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Intake Air Temperature (IAT) sensor - Qty: 1
• Manifold Absolute Pressure (MAP) sensor - Qty: 1
• Sensor O-ring seal - Qty: 1
• Electrical contact cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and use a flashlight to find the sensor you’re replacing:
  • IAT sensor is usually on the air intake duct/airbox area.
  • MAP sensor is mounted on the intake manifold (plastic manifold on the engine).
• If you’ll disconnect the battery: use a 10mm socket to remove the negative terminal and keep it from touching the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the “MAF” sensor you’re actually working with

• Use a flashlight and look along the air intake tube/airbox for a small sensor with an electrical connector (commonly the IAT sensor).
• If you don’t see one there, look at the intake manifold for a small sensor with a connector (commonly the MAP sensor).

Step 2: Unplug the electrical connector

• Use a flat-blade screwdriver (small) to gently lift the lock tab if needed.
• Press the release and pull the connector straight off.
• Don’t yank the wires.
• If dirty/greenish: spray electrical contact cleaner into the connector and let it dry.

Step 3A: Replace the IAT sensor (air intake tube/airbox style)

• If the sensor is held by a screw: remove it using a Torx T20 driver or Torx T25 driver.
• Twist and pull the sensor straight out.
• Use a pick tool (small) to remove the old O-ring if it stayed behind.
• Lightly seat the new O-ring on the new sensor, then push the sensor in fully.
• Reinstall the screw with a Torx T20 driver or Torx T25 driver and Torque to 3 Nm (27 in-lbs).
• Plug the connector back in until it clicks.

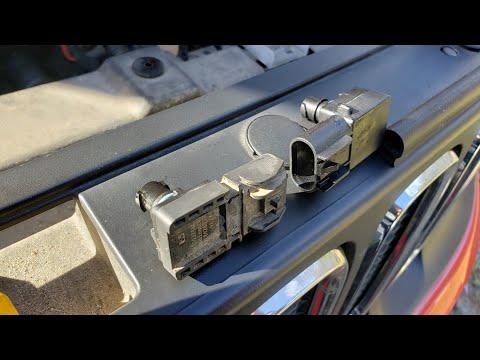

Step 3B: Replace the MAP sensor (intake manifold style)

• Remove the mounting bolt(s) using a 10mm socket, 1/4" drive ratchet, and 6" extension (1/4").
• Pull the sensor straight out (it seals with an O-ring).
• Use a pick tool (small) to remove the old O-ring if it stayed in the manifold.
• Install the new sensor (O-ring seated) and push it in straight.
• Reinstall the bolt(s) using a 10mm socket and Torque to 8 Nm (71 in-lbs).
• Plug the connector back in until it clicks.

Step 4: Reassemble anything you removed for access

• If you loosened intake clamps or moved the air duct, tighten them using a flat-blade screwdriver (small) (or the same tool you used to loosen them).
• Make sure the intake duct is fully seated so you don’t create a vacuum/air leak.

Step 5: Clear codes and do a quick relearn check

• Use an OBD2 scan tool to clear any stored codes.
• Start the engine and let it idle for 2-3 minutes.
• Watch for rough idle, a check engine light, or hissing (intake leak sound).

---

✅ After Repair

• Test drive 10-15 minutes with mixed speeds.
• Use an OBD2 scan tool to confirm no codes return.
• If you get lean codes (like P0171) after replacement, re-check the intake tube clamps and that the sensor O-ring is not pinched.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$380 (parts + labor)

DIY Cost: $35-$140 (parts only)

You Save: $145-$240 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
