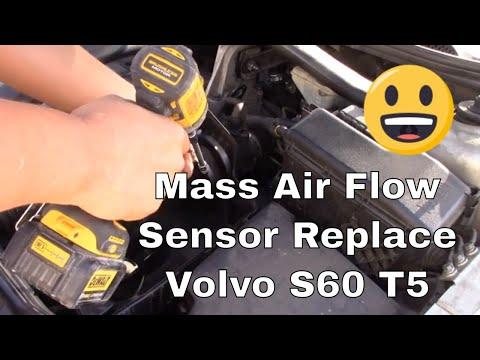

🔧 Mass Air Flow (MAF) Sensor - Replacement

The MAF sensor on your S60 measures incoming air so the engine computer can set fuel correctly. If it fails, you can get rough idle, hesitation, poor fuel economy, or check engine lights. This is a straightforward job if the sensor is mounted in the intake tube or air box lid.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Let the engine cool before working near the intake and turbo piping.
• Disconnect the negative battery terminal if the sensor connector is stubborn or if you want to avoid setting codes.
• Do not touch the MAF sensing element. It is very delicate.
• Keep dirt and tools out of the intake opening.
• Use care around the turbo inlet and any nearby hose clamps.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Flat-blade screwdriver
• Torx T20 screwdriver
• Torx T25 screwdriver
• 10mm socket
• Ratchet
• Extension bar
• Trim clip tool
• Gloves
• Safety glasses
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow sensor - Qty: 1
• MAF sensor seal or O-ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key or fob from the vehicle.
• Let the engine cool fully before opening the intake tract.
• Take a photo before disconnecting anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the air intake area

• Open the hood and locate the air filter housing and intake tube.
• If needed, use a 10mm socket and ratchet to loosen the airbox hold-down or nearby covers.
• If there are push clips, use a trim clip tool to lift them carefully.

Step 2: Disconnect the MAF electrical connector

• Find the MAF sensor connector on the intake tube or airbox outlet.
• Press the locking tab and pull the connector straight off by hand.
• If the lock is tight, use a flat-blade screwdriver gently on the release tab only.
• Do not pull on the wires.

Step 3: Remove the sensor

• Use a Torx T20 screwdriver or Torx T25 screwdriver to remove the MAF sensor screws.
• Lift the sensor straight out of the housing.
• Inspect the seal or O-ring and remove it if it comes out with the sensor.

Step 4: Install the new sensor

• Compare the old and new sensor to make sure they match.
• Install the new MAF sensor seal or O-ring if required.
• Insert the new sensor in the same direction as the old one.
• Start the screws by hand first, then tighten with the Torx T20 screwdriver or Torx T25 screwdriver.
• Torque to 3-4 Nm (27-35 in-lbs).
• Snug is enough here.

Step 5: Reconnect and reassemble

• Push the electrical connector on until it clicks.
• Reinstall any airbox bolts using the 10mm socket if removed.
• Reinstall any clips and covers.
• Check that all intake hoses are fully seated and clamps are tight.

Step 6: Restore power if disconnected

• If you disconnected the battery, reconnect the negative terminal using a 10mm socket.
• Torque to 6-8 Nm (53-71 in-lbs) if a clamp-style terminal was removed.

---

✅ After Repair

• Start the engine and let it idle.
• Check for warning lights and listen for air leaks or hissing.
• Take a short test drive and confirm smooth acceleration.
• If the check engine light stays on, clear codes with a scan tool and recheck for intake leaks.
• Idle should settle within a minute.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $120-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
