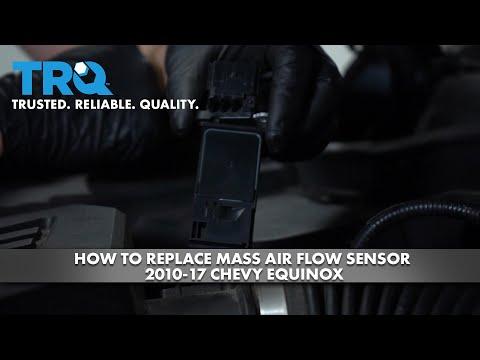

🔧 Equinox - Mass Air Flow (MAF) Sensor Replacement

You’ll be removing the old MAF sensor from the air intake tube and installing a new one. This sensor measures how much air goes into the engine; a bad one can cause rough idle, poor fuel economy, and warning lights.

Difficulty Level: Beginner | Estimated Time: 20–30 minutes

---

⚠️ Safety & Precautions

• 🔹Always work with the engine off and key removed from the ignition.
• 🔹Let the engine cool for at least 15–20 minutes so you don’t burn your hands on hot parts.
• 🔹Disconnect the negative battery cable to avoid accidental shorts or check engine lights during the swap.
• 🔹Do not touch the tiny sensor wires or elements on the MAF; your fingers can damage or contaminate them.
• 🔹Keep dirt and debris out of the intake tube while the sensor is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔹10mm socket
• 🔹1/4" drive ratchet
• 🔹6" 1/4" drive extension
• 🔹T20 Torx screwdriver
• 🔹Small flathead screwdriver
• 🔹Mechanic’s gloves
• 🔹Safety glasses
• 🔹Clean shop rag

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔹Mass air flow (MAF) sensor - Qty: 1
• 🔹MAF sensor O-ring or gasket - Qty: 1 (if not included with sensor)
• 🔹Electrical contact cleaner (sensor-safe) - Qty: 1 (optional, for connector cleaning)
• 🔹Dielectric grease - Qty: 1 small tube (optional, for connector pins)

---

📋 Before You Begin

• 🔹Park the Equinox on level ground, set the parking brake, and put the transmission in Park.
• 🔹Turn off the engine and remove the key from the ignition.
• 🔹Open the hood and secure it with the hood prop rod.
• 🔹Disconnect the negative battery cable:
  • Use the 10mm socket and ratchet to loosen the negative (-) terminal clamp on the battery.
  • Lift the cable off the battery post and tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the MAF sensor

• 🔹Stand at the front of the vehicle with the hood open.
• 🔹Find the air filter box on the driver’s side of the engine bay (black plastic box with a large hose going toward the engine).
• 🔹Follow the large black intake tube coming out of the air box. The MAF sensor is mounted in this tube, close to the air filter box, with a small electrical connector plugged into it.
• MAF is a small rectangular sensor on the intake tube.

Step 2: Unplug the MAF electrical connector

• 🔹Put on your mechanic’s gloves and safety glasses.
• 🔹Locate the plastic connector plugged into the top or side of the MAF sensor.
• 🔹Use your fingers or a small flathead screwdriver to gently lift the locking tab on the connector:
  • Slide the screwdriver under the tab and lightly pry up while pulling the connector straight back.
• 🔹Pull the connector off and move it aside so it doesn’t get in your way.
• 🔹If you have electrical contact cleaner, lightly spray the inside of the connector and let it dry.

Step 3: Remove the old MAF sensor

• 🔹Look for the two small Torx screws holding the MAF sensor to the intake tube.
• 🔹Use the T20 Torx screwdriver to loosen and remove both screws. Keep them in a safe spot; you may reuse them.
• 🔹Gently pull the MAF sensor straight out of the intake tube:
  • If it feels stuck, gently twist it a few millimeters back and forth while pulling.
• 🔹Inspect the opening in the intake tube. Use a clean shop rag around the outside of the opening if there’s dust, but do not push lint or dirt inside the tube.
• Do not drop screws into engine bay; they’re hard to find.

Step 4: Prepare the new MAF sensor

• 🔹Compare the new MAF sensor to the old one:
  • Check that the shape, connector, and mounting holes match.
• 🔹Make sure the new O-ring or gasket (if used) is seated properly on the sensor body.
• 🔹Do not touch the thin wires or sensing elements inside the sensor opening.
• Handle the sensor by the plastic body only.

Step 5: Install the new MAF sensor

• 🔹Align the new MAF sensor with the opening in the intake tube in the same direction as the old one (there is usually an arrow indicating airflow direction, pointing toward the engine).
• 🔹Carefully slide the sensor into the opening until it is fully seated against the tube.
• 🔹Install the two Torx screws by hand a few turns to avoid cross-threading.
• 🔹Use the T20 Torx screwdriver to tighten the screws evenly:
  • Torque to 3 Nm (27 in-lbs) if you have a small torque wrench.
  • If you don’t have a torque wrench, snug them gently—firm, but not “cranked down” hard.

Step 6: Reconnect the electrical connector

• 🔹If you have dielectric grease, apply a tiny amount to the connector pins on the sensor (optional).
• 🔹Push the connector straight onto the MAF sensor until it clicks into place.
• 🔹Gently tug on the connector to make sure it is locked and secure.

Step 7: Reconnect the battery

• 🔹Go back to the battery.
• 🔹Place the negative (-) cable back onto the battery post.
• 🔹Use the 10mm socket and ratchet to tighten the clamp:
  • Torque to 6–8 Nm (53–71 in-lbs) if you have a torque wrench.
  • Make it snug so the terminal does not move if you twist it by hand.

---

✅ After Repair

• 🔹Start the engine and let it idle for a few minutes. The idle may be slightly different at first while the computer “relearns” the new sensor.
• 🔹Check that there are no warning lights on the dash. If a check engine light was on before, it may clear after a few drive cycles; if not, you may need a scan tool to clear stored codes.
• 🔹Listen for any air leaks or hissing around the MAF sensor area. If you hear leaks, shut off the engine and recheck the sensor seating and screws.
• 🔹Take a short test drive: verify smooth acceleration, no hesitation, and no stalling.

---

💰 DIY vs Shop Cost

Shop Cost: $220–$350 (parts + labor)

DIY Cost: $80–$150 (parts only)

You Save: $140–$200 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.5–1.0 hours.

---
