🔧 Mass Air Flow Sensor - Replacement

The mass air flow sensor measures the air entering your RAV4 so the engine computer can control fuel delivery correctly. If it fails, you may see rough idle, hesitation, poor fuel economy, or a check engine light. This is a simple replacement on your RAV4 and usually takes only a few minutes.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Turn the engine off and let it cool before starting.
• Disconnect the negative battery terminal before unplugging the sensor.
• Do not touch the sensor element inside the MAF. It is very delicate.
• Keep dirt, leaves, and loose hardware out of the intake tube.
• Use only non-residue electronics cleaner if you are cleaning nearby parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• Flat-blade screwdriver
• Trim clip removal tool
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Mass air flow sensor - Qty: 1
• Intake duct clamp, if damaged - Qty: 1

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Turn the ignition off and remove the key or keep the fob away from the vehicle.
• Let the engine cool if it was recently running.
• Disconnect the negative battery cable before touching the sensor connector.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Open the hood and find the air intake assembly

• Lift the hood and secure it.
• Locate the air filter box and the intake tube running to the engine.
• The MAF sensor is mounted in the intake tract near the air filter housing.

Step 2: Disconnect the battery

• Use a 10mm wrench to loosen the negative battery terminal.
• Move the cable aside so it cannot spring back and touch the post.
• Keep the cable isolated.

Step 3: Unplug the MAF sensor

• Press the locking tab on the connector and pull it straight off the sensor.
• If needed, gently help the connector release with a flat-blade screwdriver.

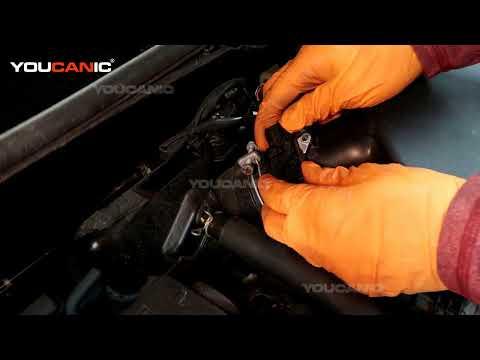

Step 4: Remove the sensor

• Use a flat-blade screwdriver to loosen the intake clamp if the duct needs to move for access.
• Remove the sensor screws with the correct fastener driver if equipped with tamper-resistant screws.
• Lift the MAF sensor straight out of the housing.
• Do not drop debris inside.

Step 5: Install the new sensor

• Place the new MAF sensor into the same position as the old one.
• Install the screws by hand first, then snug them down evenly.
• Torque to 3 Nm (27 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 6: Reassemble the intake

• If you loosened the intake duct, reposition it and tighten the clamp with a flat-blade screwdriver.
• Make sure the air tube is fully seated and not twisted.
• Reinstall any clips or covers removed during access.

Step 7: Reconnect the battery and verify operation

• Reattach the negative battery cable with a 10mm wrench.
• Start the engine and let it idle.
• Check for warning lights, rough idle, or air leaks around the intake.

---

✅ After Repair

• Take a short test drive and make sure acceleration feels normal.
• If the check engine light stays on, clear codes with a scan tool and recheck for intake leaks.
• Listen for hissing noises that could mean an air leak at the duct or sensor seal.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹14,000 (parts + labor)

DIY Cost: ₹2,500-₹7,000 (parts only)

You Save: ₹3,500-₹7,000 by doing it yourself!

Shop labor rates vary but typically run ₹2,500-₹7,000/hour. This repair takes a shop approximately 0.5-1 hour.

---
