🔧 CR-V - Mass Air Flow (MAF) Sensor Replacement

You’ll be removing the old MAF sensor from the air intake tube/air filter housing on your CR-V and installing a new one. This helps the engine computer measure incoming air correctly, which can fix rough running, poor fuel economy, or check engine lights related to the MAF.

Difficulty Level: Beginner | Estimated Time: 0.5–1 hour

---

⚠️ Safety & Precautions

• 🔸Always work with the engine off and the key removed from the ignition.
• 🔸Let the engine cool if it was running; parts around the intake can be hot.
• 🔸Disconnect the negative battery terminal so the engine computer resets and to avoid short circuits.
• 🔸Do not touch the sensing element (the tiny wire or film) inside the MAF; oils from your skin can ruin it.
• 🔸Keep dirt out of the open intake tube while the sensor is removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔸10mm socket
• 🔸1/4" drive ratchet
• 🔸3" extension (1/4" drive)
• 🔸Phillips #2 screwdriver
• 🔸Flathead screwdriver (medium)
• 🔸Needle-nose pliers
• 🔸Digital multimeter (optional, for testing)
• 🔸Mechanic’s gloves
• 🔸Safety glasses
• 🔸Shop rag or clean cloth

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔸Mass air flow (MAF) sensor with integrated intake air temperature sensor - Qty: 1
• 🔸MAF sensor O-ring or gasket - Qty: 1
• 🔸MAF sensor mounting screws (if not included) - Qty: 2
• 🔸Battery terminal protector spray - Qty: 1
• 🔸Electronic contact cleaner (sensor-safe) - Qty: 1

---

📋 Before You Begin

• Park your CR-V on level ground, shift to Park, and set the parking brake.
• Open the hood and secure it with the hood prop rod.
• Locate the battery on the left side of the engine bay as you face the vehicle.
• Plan to reset your radio presets and clock afterward; they may be lost when you disconnect the battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use the 10mm socket with the 1/4" drive ratchet to loosen the nut on the negative (black) battery terminal.
• Twist and lift the negative cable off the battery post and tuck it to the side so it cannot spring back.
• Always remove negative cable first for safety.

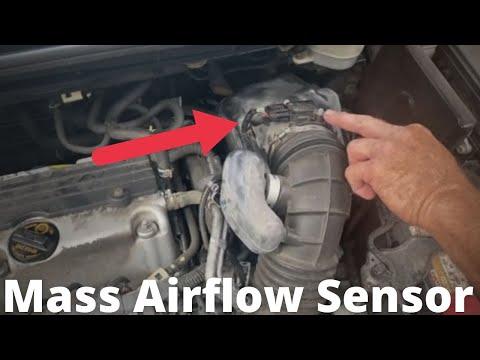

Step 2: Locate the MAF sensor

• The MAF sensor is mounted on or just after the air filter box, on the plastic air intake tube leading toward the engine.
• Look for a small black plastic unit with an electrical connector and two screws holding it in place.
• Follow the big plastic tube from air filter toward engine.

Step 3: Disconnect the MAF electrical connector

• Press down the locking tab on the MAF connector with your thumb or the tip of the flathead screwdriver.
• While holding the tab, gently pull the connector straight off the sensor body.
• If it’s stuck, wiggle it gently; do not pull on the wires. Use needle-nose pliers only on the plastic plug if needed.

Step 4: Remove the MAF mounting screws

• Use the Phillips #2 screwdriver to loosen and remove the two MAF sensor mounting screws.
• Keep the screws in a safe place if you’re reusing them.
• On this CR-V, the screws are small—do not overtighten when reinstalling later.

Step 5: Remove the old MAF sensor

• Gently pull the MAF sensor straight out of the air intake housing.
• If it feels stuck, rock it slightly side to side while pulling—do not pry hard with tools.
• Use a shop rag or clean cloth to lightly cover the opening in the intake so no dirt falls in.

Step 6: Inspect and prepare the mounting area

• Remove the old O-ring or gasket from the MAF mounting hole using your fingers or needle-nose pliers if needed.
• Wipe the sealing surface lightly with the shop rag to remove dust. Do not push dirt into the intake.
• If the electrical connector looks dirty or corroded, spray a small amount of electronic contact cleaner on it and let it dry completely.

Step 7: Install the new O-ring/gasket

• Place the new MAF O-ring or gasket into its groove on the new sensor or in the housing, matching the original position.
• Make sure it sits flat and is not twisted.
• A pinched O-ring can cause air leaks.

Step 8: Install the new MAF sensor

• Remove the shop rag from the intake opening.
• Align the new MAF sensor with the mounting hole; the screw holes should line up exactly.
• Slide the sensor straight in until it seats against the housing; do not force it.

Step 9: Reinstall the MAF mounting screws

• Start both mounting screws by hand to avoid cross-threading.
• Use the Phillips #2 screwdriver to tighten the screws evenly, alternating between them.
• Torque spec is light on this part: Torque to 2.2 Nm (1.6 ft-lbs). Since most people don’t have a torque screwdriver, just snug them gently—firm but not “cranked down.”
• Overtightening can crack the sensor housing.

Step 10: Reconnect the electrical connector

• Push the MAF electrical connector straight onto the new sensor until you hear or feel a click.
• Gently tug on the connector to confirm it is locked in place.

Step 11: Reconnect the battery

• Place the negative (black) cable back on the negative battery post.
• Use the 10mm socket and 1/4" drive ratchet to tighten the negative terminal nut.
• Do not overtighten; just good and snug is enough.
• You can spray a light coat of battery terminal protector spray on the terminal to reduce corrosion.

---

✅ After Repair

• Turn the key to ON (engine off) for about 10 seconds, then start the engine and let it idle for a few minutes. The engine computer will begin to relearn the new sensor.
• Check that the idle is smooth and that there are no warning lights on the dash. If you had a check engine light, it may clear on its own after a few drive cycles; if not, it can be cleared with a scan tool.
• Take a short test drive with gentle acceleration and deceleration, listening for any odd noises and checking that the engine responds normally.
• Verify all accessories work (radio presets, clock, power windows auto-up/down) after the battery disconnect and reset as needed.

---

💰 DIY vs Shop Cost

Shop Cost: $220–$350 (parts + labor)

DIY Cost: $70–$140 (parts only)

You Save: $150–$210 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 0.5–1.0 hours.

---
