RAV4 - Mass Air Flow (MAF) Sensor Replacement 🚗

This guide is for your 2018 RAV4 2.5L. The MAF is easy to reach and a good first DIY job.

Quick Questions ❓

Before we start, reply with:

• ✅ Do you have a basic socket set and a small flat screwdriver?
• ✅ Are you planning to replace the whole MAF sensor, not just clean it?

I’ll assume “yes” to both if you don’t answer and give you the full replacement steps.

Safety & Prep ⚠️

• 🧯 Engine off & cool: Let the engine cool for at least 15–20 minutes.
• 🔋 Disconnect battery negative terminal: This helps avoid check-engine lights and accidental shorts.
  • Use a 10 mm wrench to loosen the nut on the negative (–) terminal and lift the cable off.
• 😷 Avoid touching the MAF element: The tiny wire/film inside is very delicate.

Tools & Parts Needed 🧰

• 🛠️ Tools
  • 10 mm wrench or socket (battery terminal).
  • Small flat-head screwdriver (to help release clips if tight).
  • Phillips screwdriver or small socket (usually 8 mm) for MAF screws (Toyota often uses Phillips).
  • Gloves (optional but helpful).
• 🧩 Part
  • MAF sensor for 2018 RAV4 2.5L (OEM-style replacement).
  • Make sure the connector shape and mounting holes match your old one.

Locate the MAF Sensor 📍

• 📦 Open the hood and stand in front of the vehicle.
• 📦 Find the air filter box (black plastic box on the driver side, near the front).

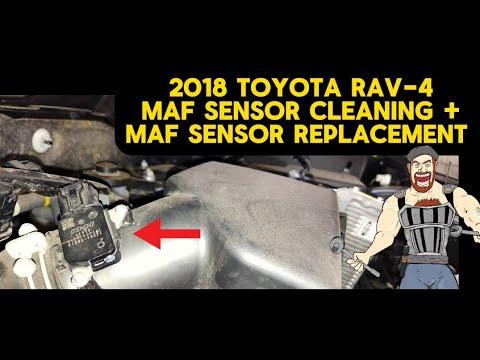

• 📦 The MAF sensor is mounted on the plastic tube just after the air filter box, with a small electrical connector plugged into it.

Step-by-Step: Remove the Old MAF 🔧

• 🧲 1. Disconnect the MAF electrical connector
  • Press down on the locking tab on the connector.
  • Gently pull the connector straight off the sensor body.
  • If it’s stuck, use a small flat screwdriver to gently lift the tab while pulling. Do not pry hard on the plastic.
• 🧲 2. Remove the MAF mounting screws
  • There are usually two small screws holding the MAF to the air duct.
  • Use a Phillips screwdriver (or small socket if they are hex-head) to remove them.
  • Keep the screws safe; you will reuse them.
• 🧲 3. Remove the MAF sensor
  • Gently pull the sensor straight out of the housing.
  • Do not twist or bend the sensor; it should slide out smoothly.
  • Do not touch the thin wire or film inside the sensor opening.

Install the New MAF Sensor 🆕

• 🧩 4. Compare old and new sensors
  • Check that:
    • Mounting holes line up.
    • O-ring or seal is present and in good shape.
    • Connector shape is identical.
• 🧩 5. Install the new MAF into the housing
  • Slide the new sensor into the opening the same way the old one came out.
  • Make sure it sits flush and the O-ring is not pinched.
• 🧩 6. Reinstall the screws
  • Install the two screws by hand first to avoid cross-threading.
  • Tighten them snugly with the screwdriver. Do not over-tighten—they thread into plastic.
  • Torque spec (typical Toyota small sensor screws): about 2–3 N·m (18–27 in-lb) – basically just “snug plus a tiny bit.”
• 🧩 7. Reconnect the electrical connector
  • Push the connector onto the sensor until you hear or feel a click.
  • Gently tug to confirm it’s locked in place.

Reconnect Battery & Reset 🧠

• 🔋 8. Reconnect the battery negative terminal
  • Place the negative cable back on the battery post.
  • Tighten the 10 mm nut until snug; do not over-tighten.
• 🔁 9. Let the ECU relearn
  • Turn the ignition to ON (engine off) for about 10–15 seconds.
  • Then start the engine and let it idle for a few minutes.
  • During the first drive, the engine computer may adjust fuel trims; idle may feel slightly different at first, then smooth out.

Check Your Work ✅

• 🔍 Look and listen:
  • No check engine light after a short drive.
  • Idle is smooth, no stalling or surging.
  • No air leaks or hissing around the air intake tube.
• 📲 If you have an OBD2 scanner:
  • Clear any stored codes related to the MAF (like P0101, P0102, P0103).
  • Drive and confirm they do not return.

Tips & Common Mistakes 💡

• 🧠 Do not spray generic cleaners on the new MAF unless it is labeled “MAF cleaner.” Other chemicals can ruin it.
• 🧠 Check the air filter while you’re there. A very dirty filter can shorten MAF life.
• 🧠 If the engine runs worse after replacement, double-check:
  • Connector fully seated.
  • Correct part number for your RAV4.
  • No intake tube left loose or cracked.
