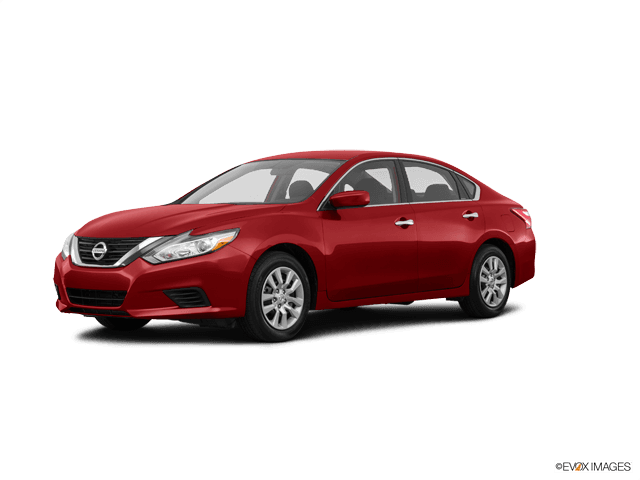

🔧 Altima - Left Rear Window Regulator Replacement

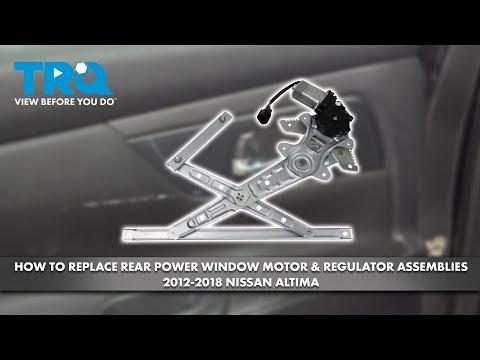

The left rear window regulator is the cable-and-track assembly that moves the glass up and down. When it fails, the window may drop, bind, move crooked, or stop moving even though you hear the motor.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: you’re replacing the left rear regulator assembly (with motor).

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the regulator scissors/cable path while testing.
• ⚠️ Support the window glass with tape before unbolting it, or it can drop suddenly.
• ⚠️ Use eye protection when removing door clips; they can pop loose fast.
• ⚠️ Battery disconnect is recommended before unplugging door wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Door panel clip pliers
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4" drive)
• Torque wrench (in-lb range)
• Painter’s tape (1" or 2" wide)
• Pick tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Left rear window regulator assembly (with motor) - Qty: 1
• Door panel trim clips - Qty: 1 set
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and switch the ignition OFF.
• Open the left rear door fully for working space.
• Use a 10mm socket to disconnect the negative battery terminal (recommended).
• If the window still moves: reconnect battery temporarily and position the glass about halfway down so the glass-to-regulator bolts are accessible, then turn ignition OFF again.
• A “vapor barrier” is the plastic sheet behind the panel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the window switch panel

• Use a plastic trim removal tool set to pry up the rear window switch panel from the armrest.
• Unplug the switch connector(s) by pressing the lock tab using a small flat-blade screwdriver.

Step 2: Remove hidden screws from the door trim panel

• Remove the screw(s) in the door pull/armrest area using a Phillips #2 screwdriver.
• If equipped with a small trim cap near the inside door handle, pop it off using a pick tool, then remove the screw with a Phillips #2 screwdriver.

Step 3: Remove the door trim panel (door card)

• Start at the lower edge and use door panel clip pliers (or a plastic trim removal tool set) to pop the panel clips loose one by one.
• Lift the panel straight up to unhook it from the window ledge.
• Disconnect any remaining connectors (courtesy light/speaker) using a small flat-blade screwdriver to help press lock tabs.

Step 4: Peel back the vapor barrier

• Use a plastic trim removal tool set to carefully peel the vapor barrier back.
• If the adhesive won’t stick later, plan to reseal it with butyl tape.
• Don’t tear the barrier; it prevents water leaks.

Step 5: Support the window glass

• Shine a flashlight through the access holes to locate the glass-to-regulator attachment points.
• Apply painter’s tape from the outside of the glass up and over the top of the door frame (use 2–3 long strips) to hold the glass up.
• If the glass is down and the regulator won’t move it: carefully pull the glass up by hand (straight up, no twisting) and tape it securely.

Step 6: Separate the glass from the regulator

• Through the door access holes, remove the glass-to-regulator bolts using a 10mm socket, 1/4" drive ratchet, and 6" socket extension.
• Once unbolted, push the glass fully up into the frame and add more painter’s tape so it cannot slide down.
• Torque (reinstall): 62 in-lbs (7 Nm)

Step 7: Unplug the regulator motor connector

• Locate the window motor connector and unplug it by pressing the lock tab with a small flat-blade screwdriver.

Step 8: Remove the regulator assembly

• Remove the regulator/motor mounting bolts using a 10mm socket, 1/4" drive ratchet, and 6" socket extension.
• Carefully maneuver the regulator out through the largest access opening.
• Torque (reinstall): 62 in-lbs (7 Nm)
• Move slowly—sharp door edges are common.

Step 9: Install the new regulator

• Feed the new regulator into the door in the same orientation as the old one.
• Hand-start all bolts first to avoid cross-threading, then tighten using a 10mm socket and 1/4" drive ratchet.
• Final tighten using a torque wrench (in-lb range): Torque to 62 in-lbs (7 Nm)

Step 10: Reattach the glass to the regulator

• Remove some painter’s tape so the glass can lower carefully into position.
• Align the glass mounting points to the regulator sliders, then install bolts using a 10mm socket and 1/4" drive ratchet.
• Final tighten using a torque wrench (in-lb range): Torque to 62 in-lbs (7 Nm)

Step 11: Test the window before reassembly

• Reconnect the switch temporarily and reconnect the battery negative terminal using a 10mm socket.
• Turn ignition ON and run the window fully down, then fully up. Watch for smooth movement and listen for popping/clicking.
• If the glass tilts forward/back: stop, loosen the glass bolts with a 10mm socket, re-seat the glass in the run channels, then retighten.

Step 12: Reinstall the vapor barrier and door trim panel

• Press the vapor barrier back into place. Add butyl tape where needed for a full seal.
• Reconnect all connectors (switch, speaker, courtesy light).
• Hang the door panel on the top lip first, then press the clips in around the perimeter using your hand.
• Reinstall screws using a Phillips #2 screwdriver.
• Reinstall the window switch panel using hand pressure until it clicks in.

---

✅ After Repair

• Cycle the left rear window 5–10 times to confirm smooth operation.
• Check that the door opens/closes normally and the lock/window switch works.
• Verify the vapor barrier is sealed all the way around (prevents water leaks and wet carpet).
• If the window acts “confused,” perform a reset: hold the switch UP for 5 seconds after fully closed, then hold DOWN for 5 seconds after fully open.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
