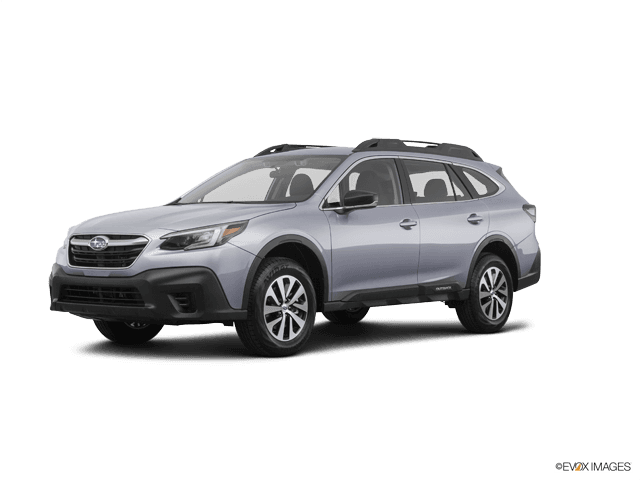

🔧 Outback - Headlight “Bulb” Replacement (Factory LED)

On your Outback, the headlights are factory LED units, so there aren’t serviceable “bulbs” you can swap from the back. If a headlight is out, the typical fix is replacing the complete headlamp assembly on that side (or repairing wiring/connector if that’s the cause).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the front end cool before working near radiators/condensers.
• ⚠️ Disconnect the negative battery cable before unplugging headlamp connectors to reduce short-circuit risk.
• ⚠️ Support the bumper cover so it doesn’t scratch paint or strain wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket

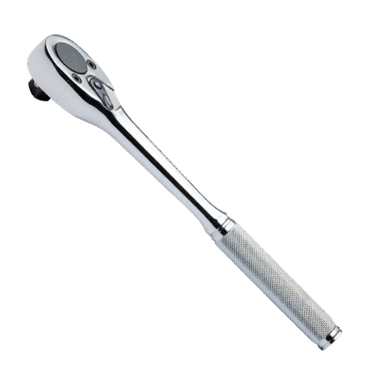

• 1/4" ratchet

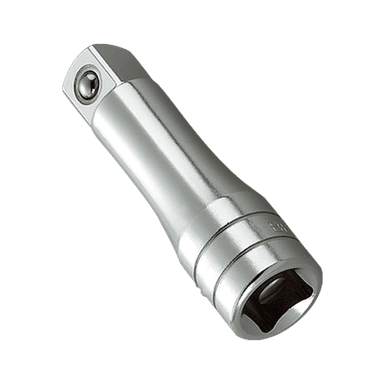

• 6" extension (1/4")

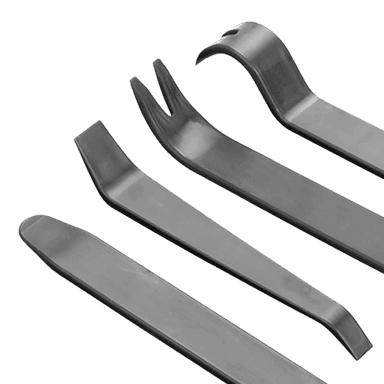

• Trim clip removal tool

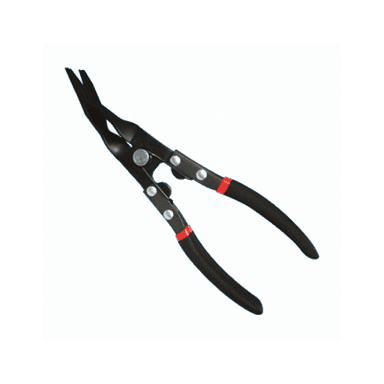

• Panel clip pliers
• Phillips #2 screwdriver
• Flat-blade trim screwdriver
• Torque wrench (inch-pound or small Nm range)
• Fender cover
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Left headlamp assembly (LED) - Qty: 1
• Right headlamp assembly (LED) - Qty: 1
• Front bumper cover retainer clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Turn the headlight switch OFF and remove the key/fob from the vehicle area.
• Open the hood and install a fender cover to protect paint.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which headlamp assembly is failed

• Turn the lights ON and verify which side is out (left/right). Then turn lights OFF.
• If both are out, check fuses first.

Step 2: Remove the upper bumper cover fasteners

• Open the hood.
• Use a trim clip removal tool and panel clip pliers to remove the plastic push-clips along the top edge of the bumper cover.
• Use a Phillips #2 screwdriver to remove any upper screws (if equipped).

Step 3: Release the bumper cover at the fender corners

• At each front wheel opening, use a trim clip removal tool to remove the fasteners securing the bumper cover edge to the fender liner.
• Gently pull the bumper cover corner straight outward to release the side retainers.
• Pull outward—don’t “peel” it forward.

Step 4: Remove the lower bumper cover fasteners

• From underneath, use a trim clip removal tool to remove the lower push-clips.
• If there are small bolts, remove them with a 10mm socket and 1/4" ratchet.

Step 5: Move the bumper cover forward for access

• With a helper supporting the cover, pull the bumper cover forward enough to access the headlamp area.
• If you have any electrical connectors on the bumper cover, unplug them by pressing the lock tab and pulling straight out (use a flat-blade trim screwdriver only if needed to gently lift the lock).
• Never pull on the wires—pull the connector body.

Step 6: Unbolt the headlamp assembly

• Remove the headlamp mounting bolts using a 10mm socket, extension, and 1/4" ratchet.
• Carefully slide the headlamp assembly forward to release alignment pins.
• Unplug the headlamp electrical connector (press the lock tab, pull straight off).

Step 7: Install the new headlamp assembly

• Plug in the headlamp connector until it clicks.
• Set the headlamp into place, aligning the locating pins.
• Install the mounting bolts by hand first to avoid cross-threading, then tighten with a 10mm socket.
• Torque to 7.5 Nm (66 in-lbs) using a torque wrench.

Step 8: Reinstall the bumper cover

• Position the bumper cover and snap the sides back into the fender retainers.
• Reinstall lower fasteners using a trim clip removal tool and 10mm socket (if equipped).
• Reinstall wheel-opening fasteners using a trim clip removal tool.
• Reinstall upper fasteners using a trim clip removal tool and Phillips #2 screwdriver.

Step 9: Reconnect the battery and function test

• Reconnect the negative battery terminal using a 10mm socket.
• Torque to 5.4 Nm (48 in-lbs) using a torque wrench.
• Turn headlights ON and verify left/right low beam operation and turn signals.

---

✅ After Repair

• Check the panel gaps around the headlamp and bumper cover—everything should sit even.
• At night, verify beam aim looks even side-to-side; adjust only if needed using the headlamp aiming adjuster (turn with a Phillips #2 screwdriver).
• Recheck for warning lights on the dash after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$2,200 (parts + labor)

DIY Cost: $650-$1,700 (parts only)

You Save: $250-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
