🔧 Jetta - Fuel Pump Replacement

On your Jetta, “fuel pump” can mean two different parts: the in-tank low-pressure fuel pump (inside the fuel tank, under the rear seat area) or the high-pressure fuel pump (mounted on the engine and driven by the camshaft). The replacement steps, tools, and safety precautions are very different, so we need to identify which one you’re replacing.

Difficulty Level: Intermediate | Estimated Time: 1.5-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Fuel is extremely flammable—no smoking, sparks, or hot work lights near the car.
• ⚠️ Relieve fuel pressure before opening any fuel line to prevent spray.
• ⚠️ Disconnect the negative battery terminal before unplugging pump wiring or opening the tank.
• ⚠️ Keep a class B fire extinguisher nearby.
• ⚠️ Clean around openings—dirt in the fuel system can damage injectors and the HP pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3" extension (3/8")
• Torx T20 screwdriver
• Torx T25 screwdriver
• Trim removal tool set
• Fuel line disconnect tool set (specialty)
• Brass punch and hammer set
• Torque wrench (10–60 Nm range)
• Needle-nose pliers
• Shop rags
• Drain pan
• Nitrile gloves
• Safety glasses
• Fire extinguisher (Class B)
• OBD2 scan tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Low-pressure in-tank fuel pump module - Qty: 1
• Fuel pump seal O-ring - Qty: 1
• Fuel line retaining clips - Qty: 1 set
• Shop absorbent pads - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the fuel door to relieve tank vapor pressure.
• Work with the tank as low as possible (under 1/4 tank is best) to reduce spills.
• Disconnect the negative battery terminal using a 10mm socket.
• Relieve fuel pressure: remove the fuel pump electrical connector (at the pump access area once opened), then crank the engine for 5–10 seconds to bleed pressure. It may start then stall—normal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the fuel pump opening

• Use a trim removal tool set to lift the rear seat bottom cushion (pull up firmly at the front edge).
• Locate the round access cover area above the fuel tank.
• Remove the access cover fasteners (if equipped) using a Torx T20 screwdriver or Torx T25 screwdriver.
• Clean the area around the pump top with shop rags so no dirt falls into the tank.

Step 2: Disconnect electrical and fuel lines

• Unplug the pump electrical connector by releasing the lock tab (use needle-nose pliers only if needed).
• Place shop rags and a drain pan under the lines to catch fuel.
• Disconnect the fuel line(s) using the fuel line disconnect tool set (specialty).
• If your line uses quick-connect tabs, press the tabs evenly and pull straight off—don’t twist hard.

Step 3: Remove the pump locking ring

• Mark the pump module orientation to the tank with a pen (helps alignment during install).
• Use a brass punch and hammer set to tap the locking ring counterclockwise to loosen it.
• Remove the locking ring and set it aside.

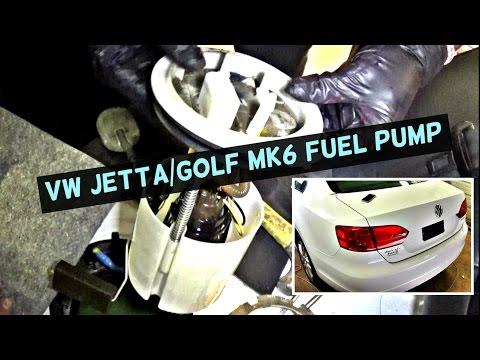

Step 4: Remove the fuel pump module

• Carefully lift the pump module out of the tank.
• Angle it as needed to clear the float arm (the fuel level sensor arm). Move slowly to avoid bending it.
• Remove and discard the old fuel pump seal O-ring.

Step 5: Install the new pump module and seal

• Wipe the tank sealing surface clean using shop rags.
• Install the new fuel pump seal O-ring in the groove (make sure it’s not twisted).
• Lower the new pump module into the tank, aligning it to your orientation marks.

Step 6: Reinstall the locking ring

• Install the locking ring and tighten it by tapping clockwise using the brass punch and hammer set.
• Tighten until the alignment marks line up and the ring is fully seated.
• If your replacement includes a specified torque method, use a torque wrench (10–60 Nm range) with the correct adapter. Torque to OEM spec (varies by ring style).

Step 7: Reconnect lines, connector, and close the access cover

• Reconnect the fuel line(s) until you hear/feel a click.
• Install any new fuel line retaining clips if equipped.
• Plug in the electrical connector.
• Reinstall the access cover using a Torx T20 screwdriver or Torx T25 screwdriver.
• Reinstall the rear seat bottom cushion (push down until it locks).

Step 8: Prime the fuel system

• Reconnect the negative battery terminal using a 10mm socket.
• Turn ignition ON (do not start) for 10 seconds, then OFF for 10 seconds; repeat 3 times to prime.
• Start the engine and let it idle.
• Check for leaks at the pump top and fuel line connections.

---

✅ After Repair

• Clear any stored fuel system codes with an OBD2 scan tool.
• With the engine idling, re-check for seepage around the locking ring and line fittings.
• Take a short test drive, then re-check for fuel smell or dampness under the seat access area.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $200-$650 (parts only)

You Save: $450-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
