🔧 Golf - Fuel Pump Replacement

On your Golf, “fuel pump” can mean two different parts: the in-tank low-pressure fuel pump module (inside the fuel tank, accessed from inside the car) or the high-pressure fuel pump (mounted on the engine and driven by the camshaft). The steps, tools, and safety precautions are very different, so we need to identify which one you’re replacing.

Difficulty Level: Intermediate | Estimated Time: 1.0-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Gasoline is extremely flammable—no smoking, sparks, or hot work lights.
• ⚠️ Relieve fuel pressure before disconnecting fuel lines to prevent spraying fuel.
• ⚠️ Work in a well-ventilated area and keep a fire extinguisher nearby.
• ⚠️ Disconnect the negative battery terminal if you’ll be opening fuel lines or removing the pump module.
• ⚠️ Clean dirt around openings—contamination can damage the fuel system.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• Trim removal tool set
• Flat-head screwdriver
• T25 Torx screwdriver
• Fuel line disconnect tool set
• Brass punch and hammer
• Torque wrench (5–60 Nm range)
• Needle-nose pliers
• Shop towels
• Drain pan
• Nitrile gloves
• Safety glasses
• Class B fire extinguisher
• OBD2 scan tool with VW fuel pump prime output test (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank fuel pump module - Qty: 1
• Fuel pump module seal O-ring - Qty: 1
• Fuel line quick-connect retaining clips - Qty: 1
• Fuel-safe cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open a window for ventilation.
• Run the fuel level down if possible—working with less fuel reduces spills.
• Relieve fuel pressure: remove the fuel pump fuse, start the engine, and let it stall; then crank for 3 seconds.
• Disconnect the negative battery terminal using a 10mm socket.
• Take photos of hose routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which “fuel pump” you mean

• If the pump is under the rear seat, that’s the in-tank low-pressure pump module (steps below apply).
• If the pump is on the engine with metal fuel lines, that’s the high-pressure fuel pump (different procedure).

Step 2: Access the fuel pump service cover

• Lift the rear seat bottom (release points vary; use a trim removal tool set to pop the front edge up carefully).
• Locate the round service cover panel.
• Remove cover fasteners using a T25 Torx screwdriver or pry the cover up gently with a flat-head screwdriver (depends on cover style).
• Vacuum/wipe all dirt around the opening using shop towels.

Step 3: Disconnect electrical connector and fuel lines

• Unplug the pump electrical connector by releasing the lock tab with a flat-head screwdriver.
• Place a drain pan and shop towels under the lines.
• Release the fuel line quick-connects using a fuel line disconnect tool set and/or needle-nose pliers for the clip (varies by connector style).
• Cap/cover the lines with towels to keep dirt out.

Step 4: Remove the fuel pump locking ring

• Mark the current position of the locking ring and pump module with a flat-head screwdriver (alignment reference).
• Use a brass punch and hammer to tap the locking ring counterclockwise to loosen it.
• Remove the locking ring and set it aside.
• Use brass to reduce spark risk.

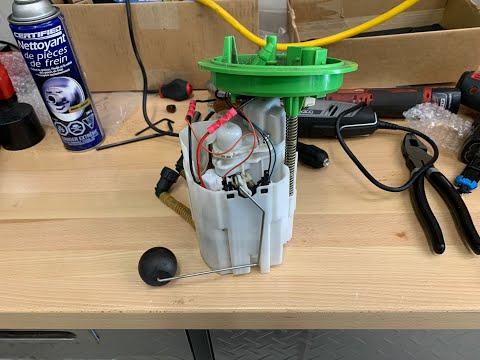

Step 5: Remove the pump module

• Lift the module straight up slowly, tilting as needed to clear the float arm.
• Let fuel drain from the module into the drain pan.
• Remove the old seal O-ring from the tank opening using a trim removal tool set.

Step 6: Install the new seal and pump module

• Clean the sealing surface with fuel-safe cleaner and shop towels.
• Install the new fuel pump module seal O-ring flat in its groove (no twists).
• Lower the new pump module into the tank, guiding the float arm carefully.
• Align the module to your reference marks.

Step 7: Reinstall the locking ring and reconnect lines

• Install the locking ring and tap it clockwise using the brass punch and hammer until fully seated at the alignment marks.
• Reconnect fuel lines until they click; gently tug to confirm they’re locked.
• Install new retaining clips if your connectors use them.
• Reconnect the electrical connector until it clicks.

Step 8: Reassemble interior

• Reinstall the service cover using a T25 Torx screwdriver (if applicable).
• Reinstall the rear seat bottom by pressing it down until it locks.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Prime the system: cycle ignition ON for 5 seconds, OFF for 5 seconds, repeat 3–5 times.
• If available, run a prime/output test with an OBD2 scan tool with VW fuel pump prime output test (specialty).
• Start the engine and inspect for leaks at the module and line connections for 2–3 minutes.
• Clear any fuel system codes if they appeared after the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $350-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-3 hours.

---
