🔧 Fuel Pump - Replacement

Assumption: This guide covers the in-tank fuel pump module under the rear seat, not the high-pressure fuel pump on the engine.

The fuel pump module on your Golf sits in the fuel tank and is accessed from inside the cabin. Replacing it means safely relieving fuel pressure, removing the access cover, swapping the module, and checking for leaks before driving.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Fuel vapors are flammable. Work outside or in a very well-ventilated area.
• No smoking, sparks, hot lamps, or open flames near the car.
• Disconnect the negative battery cable before opening the fuel system.
• Relieve fuel pressure before disconnecting any fuel lines.
• Keep a fire extinguisher rated for fuel fires nearby.
• Do not reuse damaged fuel line seals or the tank lock ring if it is worn.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Torx T20 screwdriver
• Torx T25 screwdriver
• Trim panel tool
• Flat-blade screwdriver
• Needle-nose pliers
• Fuel pump lock ring tool (specialty)
• Socket set
• Ratchet
• Safety glasses
• Nitrile gloves
• Drain pan
• Shop towels
• Floor jack (rated 3-ton minimum)
• Jack stands

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump module seal - Qty: 1
• Fuel tank lock ring - Qty: 1
• Fuel line seals - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Run the fuel level low if possible. Less fuel means less spill risk.
• Open the fuel filler cap to release tank pressure.
• Disconnect the negative battery cable.
• Have rags ready to catch fuel drips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure and power down

• Turn the ignition off and remove the key.
• Use a wrench or socket to disconnect the negative battery cable.
• Open the fuel filler cap to help release tank pressure.
• Let the car sit a few minutes.

Step 2: Remove the rear seat cushion

• Use your hands to lift the front edge of the rear seat cushion.
• If equipped with seat fasteners, use the correct socket or Torx driver to remove them.
• Set the cushion aside carefully.

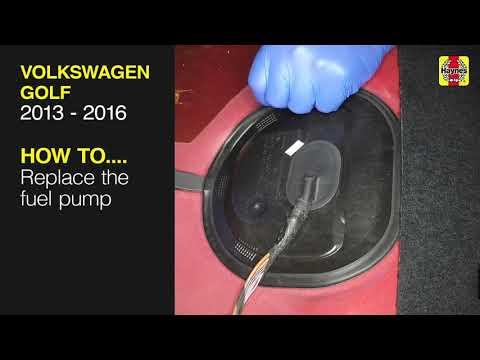

Step 3: Access the fuel pump cover

• Use a trim panel tool to lift the service cover from the floor.
• Remove any sound deadening material covering the access panel.
• Clean dirt from the area so nothing falls into the tank.

Step 4: Disconnect the electrical connector and fuel lines

• Use your fingers or a small flat-blade screwdriver to release the electrical connector lock.
• Disconnect the connector from the pump module.
• Use needle-nose pliers if a hose clip needs to be released.
• Wrap the line ends with shop towels to catch fuel drips.
• Mark hose locations before removal.

Step 5: Remove the lock ring

• Use the fuel pump lock ring tool to turn the retaining ring counterclockwise.
• Lift the ring off and keep it clean.
• Do not use a steel punch unless the ring is being replaced.

Step 6: Lift out the fuel pump module

• Carefully lift the module straight up.
• Angle it slightly if needed to clear the float arm.
• Drain any fuel from the old module into a drain pan.
• Remove the old seal from the tank opening.

Step 7: Install the new seal and pump module

• Install the new fuel pump module seal on the tank opening.
• Lower the new module into the tank in the same orientation as the old one.
• Make sure the float arm is not bent.
• Seat the module fully so the flange sits flat.

Step 8: Install and tighten the lock ring

• Use the fuel pump lock ring tool to tighten the ring clockwise.
• Tighten the ring to the factory specification for your Golf.
• Make sure the ring is fully seated and even all the way around.

Step 9: Reconnect lines and wiring

• Reconnect the fuel lines until they click or seat fully.
• Reconnect the electrical connector until the lock engages.
• Double-check that no hose is crossed or pinched.

Step 10: Reassemble the interior

• Reinstall the access cover.
• Reinstall any sound insulation.
• Reinstall the rear seat cushion.

Step 11: Prime the system and check for leaks

• Reconnect the negative battery cable using a socket or wrench.
• Turn the key on without starting the engine for 5 seconds.
• Turn it off and repeat 2-3 times to prime the fuel system.
• Start the engine and inspect the pump area for leaks.
• Torque to factory specification for any removed seat fasteners if equipped.

---

✅ After Repair

• Let the engine idle and watch for fuel smell or seepage.
• Check for a hard start, rough idle, or fuel pressure fault codes.
• Take a short test drive and recheck the rear seat access area for leaks.
• If the engine still stalls or will not start, the high-pressure fuel system may need diagnosis.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,100 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $420-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
