🔧 A6 - Fuel Pump Replacement

On your A6, “fuel pump” can mean the in-tank low-pressure fuel pump (most common DIY replacement) or the engine-mounted high-pressure fuel pump. This guide covers the in-tank fuel pump module, which supplies fuel from the tank to the engine.

Assumption: You’re replacing the in-tank pump/module accessed under the rear seat.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a very well-ventilated area; fuel vapors ignite easily.
• 🔥 No smoking, no flames, no hot work lights; use an LED light.
• 🧤 Wear nitrile gloves and safety glasses; fuel is a skin/eye irritant.
• 🔋 Disconnect the 12V battery negative terminal before opening the tank.
• ⛔ Relieve fuel pressure before disconnecting any fuel lines.
• 🧼 Clean around the pump opening first; dirt in the tank can damage the new pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher Class B
• LED work light
• 10mm socket
• 3/8" drive ratchet
• 3" extension
• Trim removal tool set
• Small flathead screwdriver
• Pick tool
• Needle-nose pliers
• Fuel line disconnect tool set
• Brass drift punch
• Small hammer
• Torque wrench (5–60 Nm range)
• Shop towels
• Catch pan
• Paint marker
• Hand vacuum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank fuel pump module assembly - Qty: 1
• Fuel pump module seal O-ring - Qty: 1
• Fuel line quick-connect retaining clips - Qty: 1 set
• Dielectric grease - Qty: 1
• Fuel-safe cleaner - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, turn the ignition off, and remove the key from the vehicle.
• 📉 Try to have the tank under 1/2 full; a full tank makes the module harder to lift out without spilling.
• 🔌 Relieve pressure: open the fuel filler door and loosen the gas cap.
• 🔋 Disconnect battery: use a 10mm socket to remove the negative battery terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood and remove the engine cover (pull straight up by hand).
• Remove the fuel pump fuse/relay (location varies by fuse panel). Use a trim removal tool set to open the fuse cover and a pick tool to pull the fuse.
• Start the engine and let it run until it stalls. Crank for 2–3 seconds once more to bleed off remaining pressure.
• Turn ignition OFF.
• Tip: This reduces fuel spray at the tank.

Step 2: Access the fuel pump cover under the rear seat

• Open the rear doors and remove the rear seat bottom cushion. Use a trim removal tool set to pop the front clips (pull up firmly near the clip points).
• Fold the seat cushion forward and set it aside.
• Vacuum around the access area using a hand vacuum so dirt doesn’t fall into the tank.

Step 3: Remove the access panel

• Remove the round/oval access cover to the pump (usually sealed with butyl). Use a small flathead screwdriver and trim removal tool set to lift it without bending it.
• Wipe the top of the module clean using shop towels and fuel-safe cleaner.

Step 4: Disconnect the electrical connector and fuel lines

• Unplug the pump electrical connector. Use a small flathead screwdriver to release the lock tab (don’t force it).
• Place a catch pan and shop towels under the lines.
• Disconnect the quick-connect fuel lines:
  • Use fuel line disconnect tool set if needed.
  • Use needle-nose pliers to remove any retaining clips.
  • Pull the line straight off while holding the fitting steady.
• Tip: Expect a small spill—keep towels ready.

Step 5: Mark orientation and remove the lock ring

• Use a paint marker to mark the pump module position relative to the tank (helps install the new one correctly).
• Remove the locking ring:
  • Use a brass drift punch (soft metal reduces spark risk) and small hammer.
  • Tap the ring counterclockwise in small steps until it loosens.
• Set the ring aside and remove the old seal O-ring.

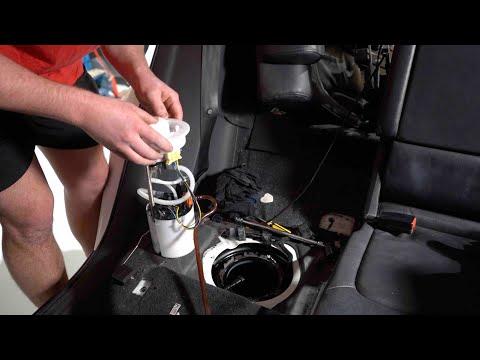

Step 6: Remove the fuel pump module

• Carefully lift the module straight up, slowly, to avoid bending the float arm (the float is the “gas gauge” arm inside the tank).
• Angle it as needed to clear the opening without forcing it.
• Drain the module into the tank opening briefly, then move it to the catch pan.

Step 7: Install the new seal and new module

• Install the new fuel pump module seal O-ring in the tank groove. Lightly lubricate it with clean fuel or a tiny film of dielectric grease.
• Lower the new module into the tank, keeping the float arm from snagging.
• Align it to the paint marks you made earlier.

Step 8: Reinstall and tighten the lock ring

• Install the lock ring by hand first to avoid cross-threading/binding.
• Tighten the lock ring using the brass drift punch and small hammer until it is fully seated against its stops.
• Torque note: Audi uses a special lock-ring socket for exact torque. If you have the special socket, use a torque wrench (5–60 Nm range) and Torque to 60 Nm (44 ft-lbs). If not, tighten firmly to the factory stop marks and ensure the ring is fully seated.

Step 9: Reconnect fuel lines and electrical

• Reconnect the fuel lines until you hear/feel a click.
• Install new retaining clips (if equipped). Use needle-nose pliers if needed.
• Reconnect the electrical connector; apply a tiny amount of dielectric grease to the seal if desired.
• Gently tug each line to confirm it’s locked.

Step 10: Reinstall access cover and rear seat

• Reinstall the access panel and press it down evenly. Use shop towels to clean any fuel residue first.
• Reinstall the rear seat bottom cushion by lining up the rear tabs, then pushing down at the front clip points until it snaps in.

Step 11: Restore power, prime the system, and check for leaks

• Reconnect the battery negative terminal using a 10mm socket. Torque to 6 Nm (53 in-lbs).
• Reinstall the fuel pump fuse/relay using a pick tool.
• Prime the system: turn ignition ON (do not start) for 10 seconds, then OFF for 10 seconds. Repeat 3 times.
• Start the engine and let it idle while you check the pump area for any seepage.

---

✅ After Repair

• 🔍 With the engine idling, re-check for fuel smell or dampness around the access panel area.
• 🛣️ Test drive 10–15 minutes, then re-check for leaks again.
• 🧰 If a check engine light appears, scan for codes (often from low pressure during the swap) and clear if appropriate.
• ⛽ Re-tighten the gas cap and make sure the filler door closes normally.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $400-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
