🔧 F-150 - Fuel Pump Replacement

On your F-150, the fuel pump is part of an in-tank fuel pump module. Replacing it means relieving fuel pressure, disconnecting the fuel lines/electrical connector, then removing the module from the tank and installing a new seal and pump module.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• 🧯 Work outdoors or in a very well-ventilated area; fuel vapors are extremely flammable.
• 🚭 No smoking, no sparks, no hot lights; keep a Class B fire extinguisher nearby.
• 🔋 Disconnect the negative battery cable before opening the fuel system.
• 🛑 Relieve fuel pressure before disconnecting any fuel line to prevent spray.
• ⬆️ If lifting the truck, support it with jack stands on the frame—never rely on a jack.
• 🧤 Wear safety glasses and fuel-resistant gloves; gasoline is a skin/eye irritant.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Fuel-resistant gloves
• Class B fire extinguisher
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet
• Socket set (8mm, 10mm, 13mm, 15mm, 18mm, 21mm)
• Wrench set (10mm, 13mm, 15mm)
• Torque wrench (20-200 ft-lbs range)
• Flat-blade screwdriver
• Pick tool
• Fuel line quick-disconnect tool set (3/8" and 1/2")
• Drain pan
• Shop rags
• Brass punch and hammer
• Fuel pump lock ring tool (specialty)
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module tank seal/O-ring - Qty: 1
• Fuel pump lock ring - Qty: 1
• Fuel filter (frame rail mounted) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Try to run the fuel level down to 1/4 tank or less; a full tank is heavy and harder to control.
• Open the fuel door and loosen the gas cap to help vent tank pressure.
• Plan your access method: Drop the tank (most common DIY) or lift/remove the bed (often faster if bed bolts aren’t seized).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the under-hood fuse box and remove the fuel pump relay using a pick tool (or your fingers if it’s loose).
• Start the engine and let it run until it stalls.
• Crank again for 3-5 seconds to bleed off any remaining pressure.
• Less pressure = less fuel spray.

Step 2: Disconnect the battery

• Use a 10mm wrench to remove the negative battery cable and isolate it so it can’t spring back.

Step 3: Raise and support the truck (if dropping the tank)

• Use a floor jack (rated 3-ton minimum) to lift the truck at approved lift points.
• Set it securely on jack stands (rated 3-ton minimum).

Step 4: Choose your access method

• Method A (Drop the tank): Best if bed bolts are rusty or you’re working alone.
• Method B (Lift the bed): Best if you have help; gives top access with less work under the truck.

Step 5A: Drop-the-tank method - disconnect filler neck and vent

• Support the fuel tank with a floor jack (use a flat board on the jack pad if possible).
• Use a flat-blade screwdriver to loosen the hose clamps at the filler neck connection.
• Twist and pull the filler hose(s) off the tank neck.
• Place a drain pan underneath and keep shop rags ready for drips.

Step 6A: Drop-the-tank method - unplug electrical and disconnect fuel lines

• Lower the tank slightly with the floor jack so you can reach the top.
• Unplug the pump module electrical connector by releasing the tab with a pick tool.
• Disconnect the fuel line quick-connect fittings using a fuel line quick-disconnect tool set (3/8" and 1/2").
• Push line in, then release it.

Step 7A: Drop-the-tank method - remove tank straps

• Soak strap fasteners with penetrating oil.
• Use a 13mm or 15mm socket (varies by hardware) to remove the fuel tank strap bolts.
• Carefully lower the tank with the floor jack and slide it out.
• On reassembly, Torque strap bolts to 41 Nm (30 ft-lbs).

Step 5B: Lift-the-bed method - remove/raise the bed

• Unplug the rear taillamp/bed harness connector (near the rear frame area) using a pick tool to release locks.
• Remove the bed bolts using an 18mm socket and ratchet.
• With at least one helper, lift the bed and slide it rearward enough to expose the top of the fuel tank (or remove it fully).
• On reassembly, Torque bed-to-frame bolts to 80 Nm (59 ft-lbs).

Step 6: Clean the top of the tank and remove the lock ring

• Use shop rags to wipe dirt away from the pump module area so debris doesn’t fall into the tank.
• Remove the lock ring using a fuel pump lock ring tool (specialty).
• If needed, use a brass punch and hammer to tap the ring loose (brass helps reduce spark risk).

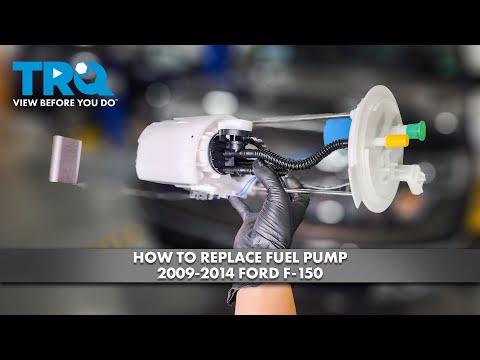

Step 7: Remove the fuel pump module

• Carefully lift the module out of the tank by hand.
• Angle it as needed to avoid damaging the float arm (it reads fuel level).
• Remove the old seal/O-ring with a pick tool.

Step 8: Install the new seal and fuel pump module

• Install the new tank seal/O-ring by hand, making sure it sits flat in its groove.
• Lower the new module into place, aligning the tabs/index marks.
• Install the new lock ring and tighten it using the fuel pump lock ring tool (specialty) until it’s fully seated/locked.

Step 9: Reconnect lines and wiring

• Reconnect the electrical connector until it clicks.
• Reconnect the fuel lines until you feel/hear a click, then gently tug-test by hand.
• Reconnect the filler neck hose(s) and tighten clamps using a flat-blade screwdriver.

Step 10: Replace the frame-rail fuel filter

• Position a drain pan under the fuel filter.
• Disconnect the quick-connect fittings using the fuel line quick-disconnect tool set (3/8" and 1/2").
• Install the new filter in the correct flow direction and reconnect lines until they click.

Step 11: Reassemble and torque

• If you dropped the tank: raise it into position with the floor jack and reinstall straps using a socket set, then Torque strap bolts to 41 Nm (30 ft-lbs).
• If you lifted the bed: reinstall bed bolts using an 18mm socket, then Torque bed-to-frame bolts to 80 Nm (59 ft-lbs).

Step 12: Prime the system and check for leaks

• Reconnect the negative battery cable using a 10mm wrench.
• Reinstall the fuel pump relay by hand.
• Turn the key to ON (engine off) for 5 seconds, then OFF for 5 seconds. Do this 3 times to prime.
• Start the engine and inspect for leaks at the tank top connections and fuel filter.

---

✅ After Repair

• Let the engine idle for 2-3 minutes and re-check for fuel seepage.
• Test drive for 10-15 minutes, then inspect again for leaks.
• If the fuel gauge reads wrong, re-check that the module float arm wasn’t bent during install.
• If you get a check-engine light, scan for codes—loose connectors/lines can trigger EVAP or fuel pressure codes.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,700 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
