🔧 Titan - Fuel Pump Replacement

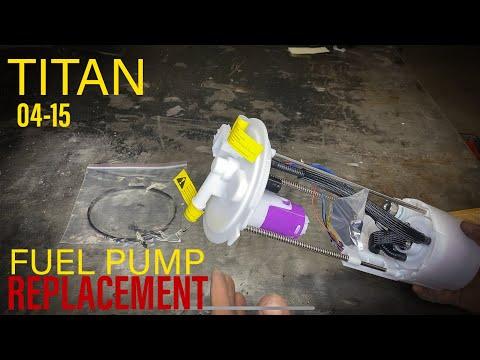

On your Titan, the fuel pump is part of an in-tank fuel pump module (it sits inside the fuel tank). Replacing it typically requires lowering the fuel tank, swapping the module and seal, then priming the system and checking carefully for leaks.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• 🔥 Gasoline is extremely flammable—no smoking, no sparks, no shop lights with broken lenses.
• 🧯 Keep a Class B fire extinguisher nearby.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line to prevent spray.
• ⚠️ Support the truck securely on jack stands; never rely on a jack alone.
• ⚠️ Work with the tank as close to empty as possible (lighter and safer).
• 🔋 Disconnect the negative battery cable before unplugging fuel pump wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Class B fire extinguisher
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack (specialty)
• Socket set (8mm-19mm)
• 3/8" ratchet
• 1/2" breaker bar
• Torque wrench (10-200 ft-lbs range)
• Flathead screwdriver
• Fuel line quick-disconnect tool set
• Pliers
• Trim clip removal tool
• Brass punch
• Dead-blow hammer
• Fuel pump lock ring wrench (specialty)
• Shop rags
• Drain pan (at least 2-gallon)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module tank seal / O-ring - Qty: 1
• Fuel tank lock ring (if damaged/corroded) - Qty: 1
• New hose clamps (if any are single-use type) - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels with wheel chocks.
• Plan to do this with the tank nearly empty (¼ tank or less is ideal).
• Have a clean work area: dirt in the tank can damage the new pump.
• Quick question 1: Is your fuel tank currently under 1/4 full?
• Quick question 2: Are you okay dropping the tank from underneath (no bed removal)?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood and locate the engine-bay fuse/relay box using your owner’s manual.
• Remove the fuel pump fuse or relay using pliers.
• Start the engine and let it run until it stalls, then crank 3-5 seconds more to bleed off remaining pressure.
• Turn the key OFF.

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery terminal and tuck it aside so it can’t spring back.

Step 3: Raise and support the truck

• Lift the rear (and if needed the front) with a floor jack (rated 3-ton minimum).
• Set the truck on jack stands (rated 3-ton minimum) at the frame.

Step 4: Support the fuel tank

• Position a transmission jack (specialty) under the fuel tank with a flat support surface.
• Use a folded shop rag between jack pad and tank to prevent slipping.

Step 5: Disconnect the filler neck and vent hoses

• At the filler neck area, loosen clamps using a flathead screwdriver (or socket if worm-gear style).
• Work the hoses off gently using pliers as needed. Twist first, then pull.
• Catch any drips in a drain pan (at least 2-gallon).

Step 6: Disconnect electrical connectors and EVAP lines

• Unplug the fuel pump module electrical connector(s) using a flathead screwdriver only if needed to release the tab.
• Disconnect EVAP/vapor lines carefully; use a trim clip removal tool if there are plastic retainers.

Step 7: Disconnect the fuel supply line

• Wrap the connection with shop rags to catch any remaining fuel.
• Use a fuel line quick-disconnect tool set to release the fuel line fitting.
• Pull the line straight off—do not pry sideways.

Step 8: Remove tank straps and lower the tank

• Support the tank firmly with the transmission jack (specialty).
• Remove the fuel tank strap bolts using a socket set (8mm-19mm) and 1/2" breaker bar if tight.
• Slowly lower the tank a few inches and double-check that no hoses/wires are still connected.
• Lower the tank fully and slide it out from under the truck.
• When reinstalling strap bolts: Torque to Nissan factory specification (service manual).

Step 9: Clean the top of the tank and remove the pump lock ring

• Thoroughly clean dirt from the top of the tank using shop rags. Dirt in tank ruins pumps.
• Remove the lock ring using a fuel pump lock ring wrench (specialty).
• If you must tap it loose, use a brass punch and dead-blow hammer (brass helps reduce spark risk).

Step 10: Remove the fuel pump module and seal

• Lift the module out slowly; angle it as needed to clear the float arm.
• Remove the old tank seal/O-ring by hand (use a flathead screwdriver gently only if stuck).
• Dispose of fuel-soaked rags safely.

Step 11: Install the new seal and fuel pump module

• Install the new seal/O-ring into the tank groove by hand; make sure it sits flat with no twists.
• Lower the new module in, carefully guiding the float arm so it doesn’t bend.
• Install the lock ring and tighten with the fuel pump lock ring wrench (specialty).
• Lock ring tightness: Torque to Nissan factory specification (service manual).

Step 12: Reinstall the tank

• Raise the tank into position with the transmission jack (specialty).
• Reconnect the fuel line until it clicks; tug lightly to confirm it’s locked.
• Reconnect EVAP lines and electrical connectors until the tabs click.
• Reconnect filler and vent hoses and tighten clamps using a flathead screwdriver.
• Install tank straps and bolts using a socket set (8mm-19mm) and tighten with a torque wrench: Torque to Nissan factory specification (service manual).

Step 13: Restore power and prime the system

• Reinstall the fuel pump fuse/relay using pliers.
• Reconnect the negative battery cable using a 10mm socket.
• Prime fuel pressure: turn key to ON (do not crank) for 5 seconds, OFF for 5 seconds—repeat 3 times.
• Start the engine and let it idle.

---

✅ After Repair

• With the engine idling, inspect under the truck for leaks at the fuel line, tank seal area, and filler neck.
• Test drive 5-10 minutes, then re-check for leaks.
• If a check engine light appears, scan it (parts stores often scan for free) and repair any EVAP line connection issues.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$900 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
