🔧 Sportage - Fuel Pump Replacement

On your Sportage, the fuel pump is part of an in-tank fuel pump module (pump + level sender). Replacement usually happens through an access cover under the rear seat (best case), or by lowering the fuel tank (if there’s no access).

Difficulty Level: Intermediate | Estimated Time: 1.5-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area—fuel vapors ignite easily.
• ⚠️ No smoking, no flames, no hot work lights (use LED).
• ⚠️ Relieve fuel pressure before disconnecting any fuel line to prevent spray.
• ⚠️ Disconnect the negative battery cable before opening the tank/module.
• ⚠️ Keep a fire extinguisher rated for flammable liquids nearby.
• ⚠️ Clean the top of the module before opening it—dirt in the tank can damage the new pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 6" socket extension
• Torque wrench (3/8")
• Phillips screwdriver #2
• Flat trim tool
• Needle-nose pliers
• Fuel line disconnect tool set (specialty)
• Fuel pump lock ring wrench (specialty)
• Plastic scraper
• Shop towels
• Drain pan
• Multimeter (optional)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module seal / O-ring - Qty: 1
• Optional: Fuel pump strainer (sock filter) - Qty: 1
• Optional: Fuel line quick-connect retaining clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Reduce fuel level if possible (under 1/4 tank makes this much easier if the tank must be lowered).
• Relieve fuel pressure: remove the fuel pump fuse/relay, start the engine, and let it stall; crank 2-3 seconds more. Less spray when lines open.
• Disconnect the negative battery cable using a 10mm socket.
• Quick question (so I can give the exact path): Do you see a metal access cover under the rear seat bottom (usually held by small bolts)?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm access method (rear-seat access vs tank drop)

• Lift the rear seat bottom cushion (use a flat trim tool to release the front clips).
• Look for a round/oval metal access cover in the floor.
• If you have the cover, follow Path A below.
• If there is no cover, you’ll need Path B (lower the fuel tank).

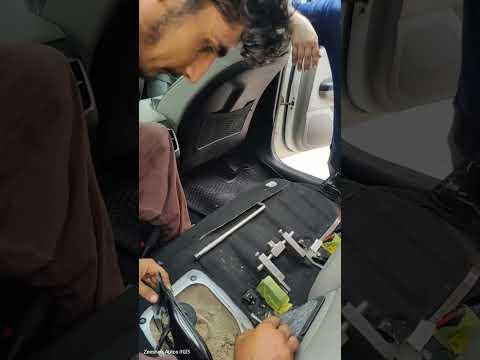

Step 2 (Path A): Remove the fuel pump access cover

• Vacuum/wipe loose dirt first using shop towels.
• Remove the access cover fasteners using a 10mm socket (some covers use Phillips screws—use Phillips screwdriver #2).
• Peel back any butyl sealer carefully using a plastic scraper. (Butyl sealer is a sticky sealing strip that prevents fumes.)

Step 3 (Path A): Disconnect electrical connector and fuel lines

• Unplug the module connector by releasing the lock tab (use needle-nose pliers only if needed).
• Place a drain pan and shop towels under the lines.
• Disconnect the fuel quick-connect(s) using a fuel line disconnect tool set (specialty). (A quick-connect is a snap-on fuel fitting with internal clips.)

Step 4 (Path A): Remove the lock ring and pull the module

• Clean the top of the module area thoroughly using shop towels. Cleanliness matters here.
• Remove the lock ring using a fuel pump lock ring wrench (specialty).
• Lift the module straight up slowly, angling as needed to clear the float arm (fuel level sensor).
• Let fuel drain into the tank; keep the opening covered with a clean towel when paused.

Step 5 (Path A): Install the new seal and module

• Remove the old tank seal/O-ring and clean the groove using a plastic scraper and shop towels.
• Install the new seal/O-ring (lightly dampen with clean fuel if needed—do not use grease unless the seal instructions allow it).
• Lower the new module in, aligning marks/tabs exactly as the old one sat.
• Install the lock ring using the fuel pump lock ring wrench (specialty) and torque wrench (3/8") to Torque to Kia specification.

Step 6 (Path A): Reconnect lines, wiring, and reseal the cover

• Reconnect fuel quick-connect(s) until they click; tug gently to confirm locked.
• Reconnect the electrical connector.
• Reinstall the access cover using a 10mm socket or Phillips screwdriver #2.
• Reapply butyl sealer if it was disturbed (or replace it) to prevent fuel smell in the cabin.

Step 7 (Path B): Lower the fuel tank (only if no access cover)

• Chock front wheels using wheel chocks.
• Raise and support the vehicle using a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum).
• Support the fuel tank with a transmission jack (specialty).
• Remove shields/guards as equipped using a 10mm socket and 12mm socket.
• Loosen/remove tank strap fasteners using a 14mm socket and 3/8" ratchet; then lower the tank slightly.
• Disconnect electrical connector and fuel/EVAP lines using fuel line disconnect tool set (specialty), then lower the tank fully.

Step 8 (Path B): Replace the module on the tank (same as Path A)

• With the tank on the ground, clean the module area using shop towels.
• Remove lock ring using fuel pump lock ring wrench (specialty).
• Replace seal/O-ring and reinstall module.
• Tighten lock ring using torque wrench (3/8") to Torque to Kia specification.

Step 9 (Path B): Reinstall the tank

• Raise the tank with the transmission jack (specialty).
• Reconnect all fuel/EVAP lines and the electrical connector (double-check routing and clicks).
• Reinstall tank straps using a 14mm socket and torque wrench (3/8") to Torque to Kia specification.
• Reinstall any shields using a 10mm socket / 12mm socket.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket and Torque to Kia specification.
• Reinstall the fuel pump fuse/relay.
• Prime the system: switch ignition ON for 5 seconds, OFF for 5 seconds, repeat 3-4 times (don’t crank). Builds pressure safely.
• Start the engine and inspect for leaks at the module and line connections (use a bright LED light).
• If you have a check engine light after the job, a scan may be needed (often from an EVAP line not fully seated).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $650-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-4.0 hours.

---
