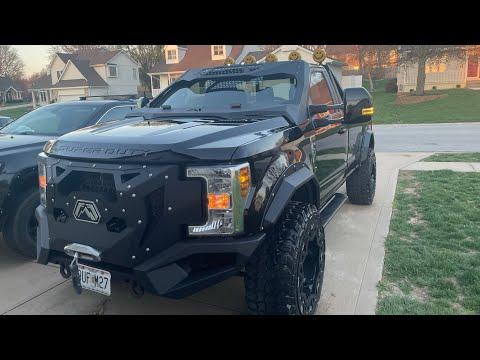

🔧 F-250 Super Duty - Fuel Pump Replacement

On your F-250, the fuel pump is part of an in-tank fuel pump module. Replacing it usually means lowering the fuel tank (or lifting the bed) so you can remove the lock ring and swap the module and seal.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a well-ventilated area; fuel vapors ignite easily.
• ⚠️ No smoking, sparks, heat guns, or trouble lights with hot bulbs.
• ⚠️ Support the truck with jack stands; never rely on a jack.
• ⚠️ Lower the tank with a transmission jack; a partly-full tank is very heavy.
• ⚠️ Disconnect the battery negative cable before unplugging fuel tank wiring.
• ⚠️ Relieve fuel pressure before opening any fuel line.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack
• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• Socket set (8mm-21mm)
• Ratchet (3/8")
• Breaker bar (1/2")
• Torque wrench (10-250 ft-lbs)
• Flat trim tool
• Fuel line disconnect tool set (5/16" and 3/8")
• Brass drift punch
• Dead-blow hammer
• Shop towels
• Drain pan
• Hand siphon pump (fuel-rated)
• Scan tool with Ford fuel pump control (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module tank seal O-ring - Qty: 1
• Fuel pump module lock ring (if damaged/corroded) - Qty: 1
• Fuel filter (if equipped) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• 🧭 Park on level ground, set the parking brake, and chock the front wheels.
• Run the fuel level as low as possible (under 1/4 tank is ideal).
• Two quick questions so I give you the exact procedure:
  • Are you planning to drop the tank or lift/remove the bed?
  • Do you have the standard tank or the larger-capacity tank?
• “Lock ring” is the metal ring that twists to hold the module in the tank.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood.
• Use your owner’s manual fuse/relay diagram and remove the fuel pump relay or fuse using the trim tool.
• Start the engine and let it run until it stalls; crank for 3 seconds more.
• Turn the key off.

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery cable and isolate it.

Step 3: Safely raise and support the truck

• Lift the rear with the floor jack and support the frame with jack stands.

Step 4: Support the fuel tank

• Position a transmission jack under the center of the fuel tank.
• If needed, siphon fuel out using a hand siphon pump (fuel-rated) into approved containers.

Step 5: Disconnect filler neck and vent lines

• Use an 8mm socket or flat trim tool (as equipped) to loosen the filler neck clamps and detach the filler hose at the tank.
• Disconnect EVAP/vent hoses by releasing the quick-connect tabs using the trim tool.

Step 6: Disconnect electrical and fuel lines at the tank

• Unplug the fuel pump module electrical connector.
• Disconnect the fuel supply/return (as equipped) using the fuel line disconnect tool set (5/16" and 3/8").
• Catch any drips with a drain pan and shop towels.

Step 7: Remove tank straps and lower the tank

• Use the appropriate socket from your socket set (8mm-21mm) with a ratchet (and breaker bar if needed) to remove the tank strap bolts.
• Slowly lower the tank on the transmission jack while watching for any remaining hoses/wiring.
• Torque note: Strap bolt torque varies by tank/strap configuration; once you answer the two questions above, I’ll give you the correct Torque to XX Nm (YY ft-lbs) spec for reassembly.

Step 8: Clean the area and remove the pump module lock ring

• Blow/brush dirt off the top of the tank (keep debris out). Use shop towels.
• Use a brass drift punch and dead-blow hammer to tap the lock ring counterclockwise until it releases.

Step 9: Remove the fuel pump module

• Lift the module straight up carefully.
• Angle it as needed to clear the float arm (fuel level sensor arm).
• Remove the old seal O-ring from the tank opening.

Step 10: Install the new seal and module

• Install the new tank seal O-ring into the tank groove.
• Lower the new module into the tank, keeping the float arm from bending.
• Reinstall the lock ring and tap it clockwise using the brass drift punch and dead-blow hammer until fully seated/locked.
• Apply a small amount of dielectric grease to the electrical connector seal.

Step 11: Raise the tank and reconnect lines

• Raise the tank into position using the transmission jack.
• Reconnect fuel lines until they click/lock; tug lightly to confirm engagement.
• Reconnect EVAP/vent lines and the electrical connector.
• Reconnect the filler hose and tighten clamps using the 8mm socket (as equipped).

Step 12: Reinstall straps and torque fasteners

• Install tank straps and bolts using the ratchet.
• Tighten with the torque wrench after you confirm your tank/bed method so I can provide the correct spec.

Step 13: Restore power and prime the system

• Reinstall the fuel pump fuse/relay.
• Reconnect the negative battery cable using the 10mm socket.
• Key ON (engine OFF) for 10 seconds, then OFF for 10 seconds; repeat 3 times to prime.
• If you have a scan tool, run a fuel pump prime/output test using the scan tool (optional).

---

✅ After Repair

• Start the engine and let it idle for 2-3 minutes.
• Check carefully for leaks at every quick-connect and at the top of the tank.
• Road test 5-10 minutes, then re-check for leaks.
• If a check engine light appears, scan for codes; EVAP line connectors are a common cause.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$750 (parts only)

You Save: $650-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
