🔧 F-250 Super Duty - Fuel Pump Replacement

On your F-250, the fuel pump is part of an in-tank fuel pump module. The job is mostly about safely lowering the fuel tank, swapping the module with a new seal, then reinstalling everything without damaging fuel lines or wiring.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your truck uses the in-tank pump module setup (most 6.2L).

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area—fuel vapors ignite easily.
• ⚠️ No smoking, no open flames, and keep heat guns/work lights away from fuel.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line to prevent spray.
• ⚠️ Support the fuel tank with a transmission jack before removing the straps.
• ⚠️ Disconnect the negative battery cable to reduce spark risk.
• ⚠️ If the tank is more than 1/4 full, it becomes much heavier—drain/siphon fuel if possible.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Transmission jack (specialty)
• Socket set (8mm-21mm)
• Ratchet
• Long extensions (6" and 12")
• Torque wrench (10-200 ft-lbs range)
• Flathead screwdriver
• Pliers
• Fuel line quick-disconnect tool set (specialty)
• Brass punch (specialty)
• Small hammer
• Shop towels
• Drain pan

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module tank seal/O-ring - Qty: 1
• Fuel pump module lock ring - Qty: 1 (recommended)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the front wheels.
• Run the fuel level down as low as possible (lighter tank = safer and easier).
• Disconnect the battery: use a 10mm socket to remove the negative (-) battery terminal and isolate it so it can’t spring back.
• Relieve fuel pressure: remove the fuel pump fuse/relay, then start the engine and let it stall; crank 2-3 more seconds. Reinstall the fuse/relay afterward.
• A quick-disconnect tool releases fuel line locks safely.
• A brass punch won’t spark like steel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the truck

• Use a floor jack to lift the rear of the truck safely.
• Set the frame onto jack stands and confirm it is stable before going underneath.

Step 2: Support the fuel tank

• Position a transmission jack under the fuel tank.
• Use a piece of wood (on the jack saddle) if needed to spread the load.

Step 3: Disconnect the filler neck and vent hoses

• At the tank, loosen hose clamps using a flathead screwdriver.
• Twist and pull the hoses off gently (use pliers if needed). Expect a small amount of fuel drip.
• Plug hoses with shop towels to reduce fumes.

Step 4: Disconnect electrical connectors at the tank

• Locate the tank/pump wiring connector and unplug it by hand (use a flathead screwdriver gently if the tab is stubborn).
• Move the harness out of the way so it can’t get pinched during lowering.

Step 5: Disconnect the fuel supply/return/EVAP lines

• Place a drain pan under the connections.
• Use a fuel line quick-disconnect tool set (specialty) to release the fuel line(s).
• Pull lines straight off—do not pry sideways (that can crack the plastic fittings).

Step 6: Remove the tank straps

• With the tank still supported by the transmission jack, remove the strap bolts using a socket set (typically 13mm-18mm) and ratchet.
• Lower the straps and keep them oriented for reinstallation.
• Torque to Ford specification on reassembly (strap bolts are safety-critical; use factory service information for your exact value).

Step 7: Lower the tank enough to access the pump module

• Slowly lower the transmission jack a few inches at a time.
• Stop and check for anything still connected (hoses, EVAP line, wiring).
• Once clear, lower enough to comfortably reach the top of the tank.

Step 8: Clean the pump module area

• Use shop towels to wipe dirt off the top of the tank around the pump opening.
• Keeping dirt out of the tank helps protect the new pump and injectors.

Step 9: Remove the lock ring and pull the module

• Use a brass punch (specialty) and small hammer to tap the lock ring counterclockwise until it releases.
• Lift the module out slowly—tilt as needed to clear the float arm without bending it.
• Remove the old tank seal/O-ring.

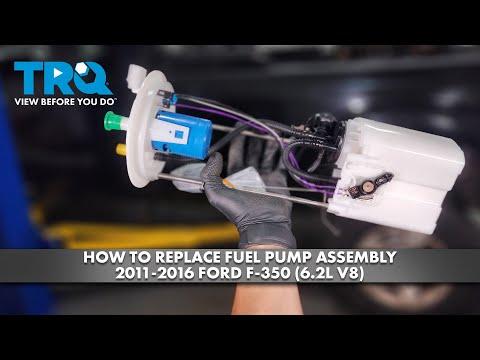

Step 10: Install the new seal and new pump module

• Install the new tank seal/O-ring into the groove (make sure it sits flat, not twisted).
• Lower the new module in, keeping the float arm free and not jammed.
• Install the lock ring and tap it clockwise using the brass punch and small hammer until fully seated at its stops.

Step 11: Raise the tank and reconnect everything

• Raise the tank using the transmission jack until you can reconnect lines.
• Reconnect fuel/EVAP lines by pushing until they click/lock (gently pull back to confirm they are latched).
• Reconnect the electrical connector(s).
• Reconnect filler neck and vent hoses; tighten clamps with a flathead screwdriver.

Step 12: Reinstall tank straps and lower the truck

• Reinstall tank straps and start bolts by hand to avoid cross-threading.
• Tighten using a socket set and finish with a torque wrench: Torque to Ford specification.
• Remove jack stands and lower the truck using the floor jack.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket (snug, do not overtighten).
• Prime the fuel system: key ON for 5 seconds, key OFF for 10 seconds; repeat 3-4 times before starting.
• Start the engine and let it idle. Check carefully for leaks at every fuel connection and around the tank seal.
• Test drive briefly, then recheck for leaks and fuel smell.
• If a check engine light appears, scan for codes (a loose EVAP line is a common cause).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$900 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
