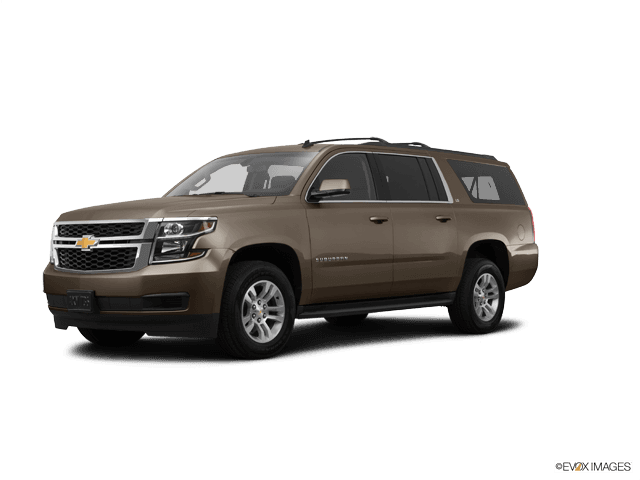

🔧 Suburban - Fuel Pump Replacement

The fuel pump on your Suburban is part of an in-tank fuel pump module. Replacing it requires safely lowering the fuel tank, swapping the module (with a new seal), then reinstalling everything and checking for leaks.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Stock in-tank pump module with no aftermarket lift.

---

⚠️ Safety & Precautions

• 🧯 Work outside or in a very well-ventilated area; fuel fumes are flammable.
• 🔋 Disconnect the negative battery cable before disconnecting fuel lines.
• 🔥 No smoking, no heaters, no incandescent work lights; keep a Class B fire extinguisher nearby.
• 🛑 Relieve fuel pressure before opening any fuel line to prevent a high-pressure fuel spray.
• 🧰 Support the fuel tank with a jack before removing straps; a tank can shift suddenly.
• 🧤 Wear nitrile gloves and safety glasses; fuel is a skin/eye irritant.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Socket set (10mm, 13mm, 15mm)
• Ratchet (3/8" drive)
• Extensions (3" and 6")
• Torque wrench (10–100 ft-lbs range)
• Flathead screwdriver
• Fuel line quick-disconnect tool set (3/8" and 1/2")
• Brass punch (non-sparking)
• Dead-blow hammer
• Fluid transfer pump (hand pump siphon)
• Drain pan (at least 3-gallon)
• Shop rags
• Work light (LED)
• Nitrile gloves
• Safety glasses
• Fire extinguisher (Class B)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module tank seal O-ring - Qty: 1
• Fuel tank lock ring (if damaged/corroded) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the front wheels.
• ⛽ Try to run the tank low (under 1/4 tank). Less fuel = lighter and safer.
• 🔧 Relieve fuel pressure: remove the fuel pump relay and run the engine until it stalls, then crank 3 seconds more. (The relay is in the under-hood fuse/relay block.)
• 🔋 Disconnect the negative battery cable using a 10mm socket.
• 🧼 Have a clean area ready: dirt falling into the tank can damage the new pump.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the rear

• Use wheel chocks at the front wheels.
• Use a floor jack to lift the rear, then set the truck on jack stands under the frame.
• Give the truck a gentle shake test to confirm it’s stable.

Step 2: Drain/siphon fuel to make the tank lighter

• Use a fluid transfer pump (hand pump siphon) to remove as much fuel as practical into approved fuel containers.
• Keep a drain pan and shop rags ready for spills.
• Less fuel makes the job much easier.

Step 3: Support the fuel tank

• Place the floor jack under the center of the fuel tank.
• Put a flat piece of wood (if available) between jack and tank to spread the load.

Step 4: Disconnect filler neck and vent lines

• Use a flathead screwdriver to loosen hose clamps at the filler neck (where rubber hoses connect).
• Carefully twist and pull the hoses off. Use shop rags for any drips.

Step 5: Lower the tank slightly to access connections

• Use a 15mm socket with a ratchet and extension to loosen/remove the fuel tank strap bolts.
• Lower the tank a few inches using the floor jack—just enough to reach the top connections.
• Lower slowly; wires and lines are still attached.

Step 6: Disconnect the electrical connector

• Unplug the fuel pump module electrical connector at the top of the tank.
• If the lock tab is stubborn, use a flathead screwdriver gently (don’t break the tab).

Step 7: Disconnect fuel lines (quick-connect fittings)

• Use the fuel line quick-disconnect tool set (3/8" and 1/2") to release the fuel supply/return/EVAP connections (as equipped).
• Pull lines straight off; do not pry hard on plastic fittings.
• Catch any fuel with a drain pan and shop rags.
• Quick-connect tool slides into the fitting to release the lock.

Step 8: Fully remove the tank

• Finish removing the strap bolts using a 15mm socket.
• Carefully lower the tank the rest of the way with the floor jack.
• Slide the tank out from under the truck.

Step 9: Clean the top of the tank

• Use a work light (LED) and wipe the tank top clean with shop rags.
• Make sure no dirt can fall into the tank once the module is removed.

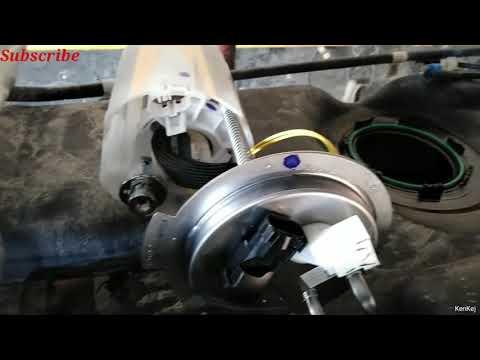

Step 10: Remove the lock ring and fuel pump module

• Use a brass punch (non-sparking) and dead-blow hammer to tap the lock ring counterclockwise until it unlocks.
• Lift the lock ring off, then carefully lift the fuel pump module out.
• Angle the module as needed to clear the float arm (fuel level sensor arm).
• Remove the old tank seal O-ring.

Step 11: Install the new seal and new fuel pump module

• Install the new fuel pump module tank seal O-ring into the groove on the tank opening.
• Lower the new module into the tank carefully (don’t bend the float arm).
• Reinstall the lock ring and tap it clockwise using the brass punch and dead-blow hammer until fully seated and aligned to its stops.
• Make sure the O-ring doesn’t pinch.

Step 12: Reinstall the fuel tank

• Position the tank on the floor jack and raise it partway.
• Reconnect the top-side items first:
  • Reconnect fuel lines using the correct fuel line quick-disconnect tool set as needed, then push until you feel/hear a solid click.
  • Reconnect the electrical connector.
• Raise the tank fully and reinstall tank straps/bolts using a 15mm socket.
• Torque to 25 Nm (18 ft-lbs) for the fuel tank strap bolts.
• Reconnect filler neck/vent hoses and tighten clamps using a flathead screwdriver.

Step 13: Restore power and prime the fuel system

• Reconnect the negative battery cable using a 10mm socket.
• Reinstall the fuel pump relay in the under-hood fuse/relay block.
• Turn the key to ON (engine off) for 5 seconds, then OFF for 5 seconds. Repeat 3 times to prime the system.

Step 14: Start and leak-check

• Start the engine and let it idle.
• With a work light (LED), inspect the fuel line connections and top of the tank area for leaks (smell + wetness).
• Shut off immediately if any leak is found, and re-seat the quick-connect fitting(s).

---

✅ After Repair

• 🔍 Road test for 10–15 minutes, then re-check for any fuel smell or damp spots under the truck.
• 🧾 If the check engine light comes on, have codes scanned; an EVAP line left loose is a common cause.
• ⛽ Confirm the fuel gauge reads normally (float arm seated correctly).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
