🔧 Pilot - Fuel Pump Replacement

On your Pilot, “fuel pump” can mean two different parts: the in-tank low-pressure fuel pump module (most common) or the engine-mounted high-pressure fuel pump (direct-injection system). The steps and safety precautions are very different, so we need to identify which one you’re replacing before you start.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Fuel vapors are flammable: no smoking, sparks, or hot lights.
• ⚠️ Relieve fuel pressure before opening any fuel line.
• ⚠️ Disconnect the 12V battery negative terminal before unplugging the pump connector.
• ⚠️ Work in a ventilated area and keep a fire extinguisher nearby.
• ⚠️ Use only a brass punch or a fuel pump lock-ring tool; steel-on-steel can spark.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Trim clip remover tool
• Ratchet
• 10mm socket
• 12mm socket
• Torque wrench (3/8" drive)
• Phillips screwdriver
• Pick tool
• Fuel line disconnect tool set (specialty)
• Fuel pump lock ring wrench (specialty)
• Brass punch
• Small dead-blow hammer
• Shop towels
• Drain pan
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank fuel pump module assembly - Qty: 1
• Fuel pump module seal / O-ring - Qty: 1
• Fuel line quick-connect O-rings - Qty: 1 set
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock a wheel.
• Run the fuel level down to about 1/4 tank to reduce spill risk.
• Confirm which pump you mean: in-tank fuel pump module (under an access cover) or engine high-pressure fuel pump (on the engine). If you tell me which one, I’ll tailor the steps exactly.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Relieve fuel pressure before cracking lines (steps below).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the fuel filler door and loosen the gas cap to vent the tank.
• In the under-hood fuse/relay box, remove the fuel pump fuse/relay using a fuse puller (often stored in the fuse box) or needle-nose pliers carefully.
• Start the engine and let it run until it stalls; crank 2–3 seconds more to bleed off remaining pressure.
• Turn ignition OFF and reinstall the fuse/relay after you’re done with the pump work.

Step 2: Access the fuel pump service cover

• Move the second-row seat(s) as needed to access the carpet area above the tank.
• Remove trim fasteners using a trim clip remover tool.
• Peel back the carpet and locate the metal access cover.
• Remove the access cover screws using a Phillips screwdriver or a 10mm socket (fastener type varies).

Step 3: Disconnect the electrical connector and fuel lines

• Clean the area around the pump flange using shop towels to prevent dirt from falling into the tank.
• Unplug the pump electrical connector.
• Place a drain pan and shop towels under the lines.
• Release the quick-connect(s) using a fuel line disconnect tool set (specialty) if needed; use a pick tool only to lift lock tabs gently. Don’t break the plastic lock.

Step 4: Remove the lock ring

• Mark the lock ring and tank positions with a paint marker (helps alignment).
• Use a fuel pump lock ring wrench (specialty) to loosen and remove the ring.
• If you don’t have the wrench, use a brass punch and dead-blow hammer to tap the ring loose carefully.

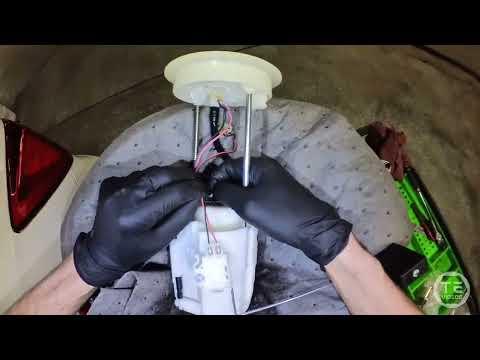

Step 5: Remove the fuel pump module

• Lift the module straight up slowly; angle it as needed to clear the float arm (fuel level sensor).
• Let fuel drain back into the tank; catch drips with shop towels.
• Remove and discard the old seal/O-ring from the tank opening using a pick tool.

Step 6: Install the new seal and pump module

• Install the new seal/O-ring into the tank groove (do not reuse the old one).
• Apply a light film of clean fuel to the seal to prevent pinching.
• Lower the new module in carefully so the float arm is not bent.
• Align the module marks with the tank marks.

Step 7: Reinstall lock ring and reconnect lines

• Install the lock ring by hand first to avoid cross-threading.
• Tighten using the fuel pump lock ring wrench (specialty) until it fully seats at the alignment marks.
• Reconnect fuel line(s) until you hear/feel a click; tug lightly to confirm locked.
• Reconnect the electrical connector; add a small amount of dielectric grease to the connector seal if supplied.
• Reinstall the access cover using a Phillips screwdriver or 10mm socket and torque wrench and Torque to Honda specification.

Step 8: Reassemble interior

• Reposition carpet and reinstall trim fasteners using the trim clip remover tool (reverse of removal).
• If any seat bolts were removed, reinstall using a 12mm socket and torque wrench and Torque to Honda specification.

Step 9: Prime the system and leak-check

• Reconnect the battery negative terminal using a 10mm socket.
• Turn ignition ON (do not start) for 5 seconds, then OFF; repeat 3 times to prime.
• Start the engine and check for leaks at the pump top and quick-connects using a flashlight.
• If you see or smell fuel, shut it off immediately and recheck the seal/line connections.

---

✅ After Repair

• Test drive 5–10 minutes and recheck for any fuel smell near the access cover area.
• If a check-engine light appears, scan for codes; a loose connector or EVAP leak can trigger a warning.
• Re-tighten the gas cap until it clicks.

---

💰 DIY vs Shop Cost

Shop Cost: $800-$1,600 (parts + labor)

DIY Cost: $250-$900 (parts only)

You Save: $550-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
