🔧 Forester - Fuel Pump Replacement

You’ll be replacing the in-tank fuel pump module (pump + sender) that sits under the rear seat. The key is working clean, relieving fuel pressure, and resealing the module so you don’t get fuel smells or leaks.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outdoors or in a well-ventilated area—fuel vapors are extremely flammable.
• ⚠️ No smoking, no heat guns, no shop lights with hot bulbs, and keep a fire extinguisher nearby.
• ⚠️ Disconnect the battery negative terminal before opening the fuel system.
• ⚠️ Clean around the pump opening before removal—dirt in the tank can damage the new pump.
• ⚠️ Wipe spills immediately and dispose of fuel-soaked rags safely.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• 3/8" drive ratchet
• 3" extension for 3/8" ratchet
• Phillips #2 screwdriver
• Flat trim tool
• Needle-nose pliers
• Small pick tool
• Torque wrench (in-lb or low-range Nm)
• Shop towels
• Catch pan
• Marker pen
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module seal/O-ring - Qty: 1
• Small hose clamp (if equipped and damaged) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and open a rear door for easier access.
• 🧼 Vacuum and wipe the rear seat area so dirt doesn’t fall into the tank opening.
• 🔋 Disconnect the battery using a 10mm socket (negative terminal first).
• ⛽ Plan to work with the tank under 1/2 full if possible—less fuel makes the module easier to handle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Remove the fuel pump fuse/relay (from the under-dash fuse area) using a small pick tool to help if it’s tight.
• Start the engine and let it run until it stalls.
• Crank for 3–5 seconds one more time to bleed off remaining pressure.
• Turn ignition OFF and reinstall the fuse/relay after pressure is relieved.

Step 2: Remove the rear seat bottom cushion

• Use a flat trim tool to release the front clips (pull up firmly at the front edge of the seat bottom).
• Lift the seat bottom out and set it aside.
• Pull straight up to avoid breaking clips.

Step 3: Open the fuel pump access cover

• Locate the access cover in the floor under the rear seat area.
• Remove the cover fasteners using an 8mm socket or Phillips #2 screwdriver (fastener type varies).
• Lift the cover off with a flat trim tool.

Step 4: Disconnect the electrical connector and fuel line

• Unplug the pump electrical connector by pressing the lock tab (use needle-nose pliers gently if needed).
• Place shop towels and a catch pan under the fuel line connection.
• Disconnect the quick-connect fuel line (a “quick-connect” uses squeeze tabs to release) by squeezing the tabs and pulling the line straight off.
• Twist slightly while pulling—don’t pry hard.

Step 5: Clean and mark the pump module position

• Blow/brush dirt away from the module top (use shop towels to wipe; avoid pushing dirt into the tank opening).
• Use a marker pen to mark the module’s orientation to the tank (helps install it the same way).

Step 6: Remove the fuel pump module retaining nuts

• Remove the retaining nuts evenly in a crisscross pattern using a 10mm socket, 3/8" ratchet, and 3" extension.
• Lift the retaining ring/flange hardware off and set it aside.

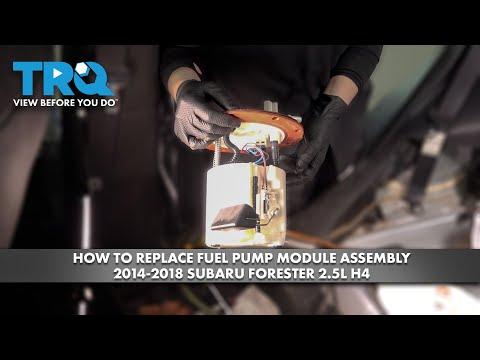

Step 7: Lift out the fuel pump module

• Carefully lift the module straight up, tilting as needed to clear the float arm (fuel level sender).
• Let fuel drain from the module into the tank, then move it to the catch pan.
• Remove the old seal/O-ring from the tank opening using a small pick tool.

Step 8: Install the new seal and new module

• Install the new seal/O-ring into the tank opening (make sure it sits flat and isn’t twisted).
• Lower the new module into place, aligning your marker pen marks.
• Reinstall the retaining nuts finger-tight first, then snug evenly using a 10mm socket.
• Torque to 4.4 Nm (39 in-lbs / 3.2 ft-lbs) using a torque wrench (in-lb or low-range Nm), tightening in a crisscross pattern.

Step 9: Reconnect the fuel line and electrical connector

• Push the quick-connect fuel line on until it clicks; then tug lightly to confirm it’s locked.
• Reconnect the electrical connector until it clicks.
• Reinstall the access cover using an 8mm socket or Phillips #2 screwdriver.

Step 10: Reinstall the rear seat bottom

• Set the seat bottom in place and align the front clips.
• Press down firmly to snap the clips back in.

Step 11: Prime the fuel system

• Reconnect the battery negative terminal using a 10mm socket.
• Turn ignition ON (do not start) for 5 seconds, then OFF.
• Repeat ON/OFF 3 times to prime the system.
• Start the engine and let it idle.

---

✅ After Repair

• 🔍 With the engine idling, inspect the pump top and fuel line connection for any seepage.
• 👃 Check for fuel smell inside the cabin after a short drive—fuel odor usually means a seal/O-ring issue or a line not fully clicked.
• 🧪 If you have a scan tool, check for stored fuel pressure/EVAP-related codes after the repair and clear if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $180-$500 (parts only)

You Save: $470-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
