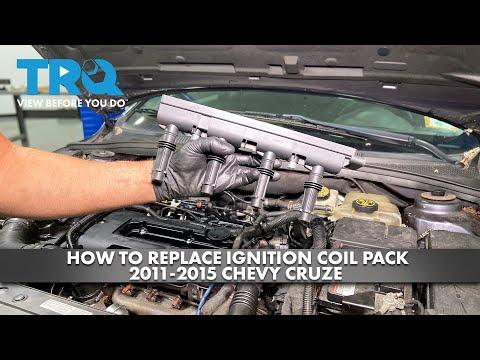

🔧 Cruze - Ignition Coil Replacement

On your Cruze 1.4L turbo, the “ignition coils” are typically a single ignition coil pack (one assembly) that sits on top of all four spark plugs. Replacing it restores strong spark, which can fix misfires, rough idle, and flashing check-engine light conditions caused by a weak coil.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: your Cruze uses the common 1-piece coil pack on the valve cover.

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before starting; hot turbo/engine parts can burn you.
• ⚠️ Disconnect the negative battery cable to prevent accidental shorts and to protect the ignition module.
• ⚠️ Do not pull on wiring; always release the connector lock and pull on the plug body.
• ⚠️ If the check-engine light was flashing, avoid hard driving until repaired (flashing usually means active misfire).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension for 1/4" drive
• Torque wrench (in-lb or low-range ft-lb)
• Small flathead screwdriver
• Trim removal tool
• Needle-nose pliers
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Ignition coil pack assembly - Qty: 1
• Dielectric grease - Qty: 1
• Spark plugs - Qty: 4 (recommended if due/unknown)

---

📋 Before You Begin

• Park on level ground, put the shifter in neutral, and set the parking brake.
• Open the hood and wait until the engine is cool to the touch.
• Disconnect the battery negative terminal: use a 10mm socket to loosen the clamp and move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use a trim removal tool to gently lift at the corners, then pull upward to pop the cover off its rubber grommets.
• Set the cover aside where it won’t get stepped on.

Step 2: Unplug the ignition coil electrical connector

• Locate the coil pack on top of the valve cover (the black unit spanning all 4 cylinders).
• Use a small flathead screwdriver to lift the connector locking tab (if present), then press the release and pull the connector straight off.
• Tip: wiggle the connector, don’t yank.

Step 3: Remove the coil pack mounting bolts

• Use a 10mm socket with a 1/4" ratchet and extension to remove the coil pack bolts.
• Place the bolts in a small tray so they don’t disappear.

Step 4: Lift the coil pack off the spark plugs

• Grasp the coil pack and pull straight upward. If it feels stuck, rock it gently side-to-side while pulling up.
• Look down the spark plug wells for oil or water. Use shop towels to blot any moisture you can reach.
• Tip: oil in the wells can indicate a valve cover leak.

Step 5: Prep the new coil pack boots

• Put a tiny dab of dielectric grease inside each rubber boot (the rubber “socket” that sits on the spark plug).
• Dielectric grease is a non-conductive grease that helps prevent moisture and makes future removal easier.

Step 6: Install the new coil pack

• Line up the boots with the spark plugs and press the coil pack straight down until it seats fully.
• Install the mounting bolts by hand first to avoid cross-threading.
• Tighten the bolts evenly with a 10mm socket, then finish with a torque wrench: Torque to 10 Nm (89 in-lb).

Step 7: Reconnect the electrical connector

• Push the connector on until it clicks/locks into place.
• Gently tug-check the connector to confirm it’s fully seated.

Step 8: Reinstall the engine cover

• Align the cover with the mounting points and press down firmly at each corner to seat it.

Step 9: Reconnect the battery

• Reattach the negative battery terminal using a 10mm socket and snug it securely (do not over-tighten).

---

✅ After Repair

• Start the engine and let it idle for 1-2 minutes. It should run smooth with no shaking.
• If the check-engine light is on, use a scan tool to clear codes and confirm no misfire codes return.
• Do a short test drive. Recheck that the engine runs smoothly under light acceleration.
• If it still misfires, spark plugs and plug gap (or oil in plug wells) are the next most common causes.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$450 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $140-$200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
