🔧 Optima - Starter Motor Replacement

On your Optima Hybrid, engine starting is usually handled by a Hybrid Starter-Generator (HSG) (a belt-driven motor) instead of a traditional starter motor on the transmission. Replacement involves safely powering down the hybrid system, removing the drive belt, unplugging the HSG wiring, and swapping the unit.

Difficulty Level: Advanced | Estimated Time: 2.5-4.5 hours

Assumption: This covers the Hybrid HSG “starter” setup (most common on this model).

---

⚠️ Safety & Precautions

• ⚠️ High voltage hazard: Disable the hybrid system before touching orange cables or hybrid components.
• ⚠️ Remove metal jewelry and use Class 0 HV insulated gloves when working near high-voltage wiring.
• ⚠️ Disconnect the 12V battery negative before unplugging any starter/HSG connectors.
• ⚠️ Wait time: After disabling HV, wait at least 10 minutes for capacitors to discharge.
• ⚠️ Support the car securely: Never work under a car supported only by a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Class 0 high-voltage insulated gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 ft-lbs range)
• 6" socket extension
• Trim clip remover
• Flat-blade screwdriver
• Needle-nose pliers
• Serpentine belt tool 14mm (specialty)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Hybrid Starter-Generator (HSG) assembly - Qty: 1
• Serpentine drive belt - Qty: 1
• Intake duct clamp(s) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Power down the hybrid system: make sure the car is OFF and the key is away from the vehicle.
• Disable high voltage: remove the hybrid battery service disconnect (HV plug) per the access panel location, then wait at least 10 minutes.
• Disconnect the 12V battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the car

• Place wheel chocks behind the rear tires.
• Lift the front using a floor jack (rated 3-ton minimum).
• Set the car onto jack stands (rated 3-ton minimum) at the proper lift points.

Step 2: Remove the lower engine splash shield (if equipped)

• Use a trim clip remover and 10mm socket to remove clips/bolts.
• Remove the shield and set it aside.

Step 3: Remove the air intake ducting for access

• Use a flat-blade screwdriver to loosen the intake hose clamps.
• Unclip/remove any duct fasteners using a 10mm socket.
• Lift the ducting out to open up the front/side of the engine.

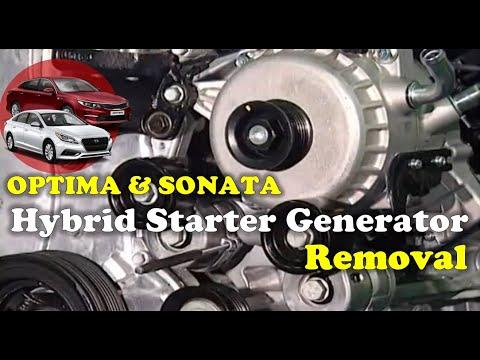

Step 4: Locate the “starter” on the Hybrid (HSG unit)

• The HSG is a motor mounted on the engine with a belt running to it (not the small starter on the transmission).
• If you see orange cables nearby, do not unplug anything unless HV is already disabled and you are wearing Class 0 high-voltage insulated gloves.

Step 5: Remove serpentine belt tension and take the belt off

• Use a serpentine belt tool 14mm (specialty) to rotate the belt tensioner and release belt tension.
• Slip the belt off the HSG pulley first, then remove it from the other pulleys.
• Tip: Take a belt-routing photo before removal.
• A serpentine belt tool is a long handle made to move the tensioner in tight spaces.

Step 6: Disconnect the HSG electrical connectors

• Verify: 12V negative cable is disconnected and HV service disconnect is removed.
• Use needle-nose pliers only if needed to release harness clips (don’t pull on wires).
• Unplug the HSG connector(s) by releasing the locking tab and pulling straight back.

Step 7: Remove HSG mounting bolts

• Support the HSG with one hand as you remove bolts with a 14mm socket and 3/8" drive ratchet.
• If a bolt is tight, add a 6" socket extension for better leverage/angle.
• Remove the HSG from its bracket and carefully maneuver it out.

Step 8: Install the new HSG and hand-start bolts

• Position the replacement HSG into the bracket.
• Hand-thread all mounting bolts first to prevent cross-threading.
• Tighten bolts with a 14mm socket until snug.
• Final tighten using a 3/8" drive torque wrench (10–100 ft-lbs range): Torque to factory specification.
• A torque wrench clicks when the correct tightness is reached.

Step 9: Reconnect the HSG wiring

• Push connectors in until the lock clicks.
• Reattach any harness clips removed earlier.

Step 10: Install the serpentine belt

• Route the belt according to your photo.
• Use the serpentine belt tool 14mm (specialty) to move the tensioner and slip the belt onto the last pulley.
• Visually confirm the belt is fully seated in every pulley groove.

Step 11: Reinstall intake ducting and splash shield

• Reinstall intake ducting using a 10mm socket and tighten clamps with a flat-blade screwdriver.
• Reinstall the splash shield using a trim clip remover and 10mm socket.

Step 12: Restore power (12V first, then HV)

• Reconnect the 12V negative terminal using a 10mm socket.
• Reinstall the HV service disconnect (hybrid service plug) fully seated and locked.
• Lower the car off the jack stands using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• Start the car and confirm it reaches READY mode normally.
• Listen for belt noise (squeal or chirp). If present, shut off and re-check belt seating.
• Verify no warning lights remain on the dash after a short drive.
• If a warning light is on, the car may need a diagnostic scan to clear stored codes after power-down.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹45,000 (parts + labor)

DIY Cost: ₹10,000-₹35,000 (parts only)

You Save: ₹8,000-₹10,000+ by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
