🔧 Rogue - Fuel Pump Replacement

You’ll be replacing the in-tank fuel pump module, which sits on top of the fuel tank under the rear seat in your Rogue. This restores proper fuel pressure and can fix hard starting, stalling, or low-power issues.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⛽ Work in a very well-ventilated area; fuel vapors are flammable and harmful to breathe.
• 🔥 No smoking, open flames, or sparks near the vehicle while working on the fuel system.
• 🔋 Disconnect the negative battery cable before opening the fuel system to avoid accidental sparks.
• 💧 Relieve fuel pressure before disconnecting any fuel lines to reduce spray risk.
• 🧯 Keep a Class B fire extinguisher nearby in case of fuel fire.
• 👃 If you feel dizzy or lightheaded from fumes, stop and get fresh air immediately.
• 🧤 Wear fuel-resistant gloves and safety glasses to protect your skin and eyes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 1/4" drive ratchet
• 🧰 3/8" drive ratchet
• 🧰 3" socket extension
• 🧰 Flathead screwdriver (small)
• 🧰 Plastic trim removal tool set
• 🧰 Fuel line disconnect pliers (specialty)
• 🧰 Fuel pump lock-ring tool for Nissan (specialty)
• 🧰 Torque wrench (inch-lb and ft-lb capable)
• 🧰 Needle-nose pliers
• 🧰 Shop rags
• 🧰 Plastic drain pan or fuel-safe container
• 🧰 Safety glasses
• 🧰 Nitrile gloves
• 🧰 Flashlight or work light (LED)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

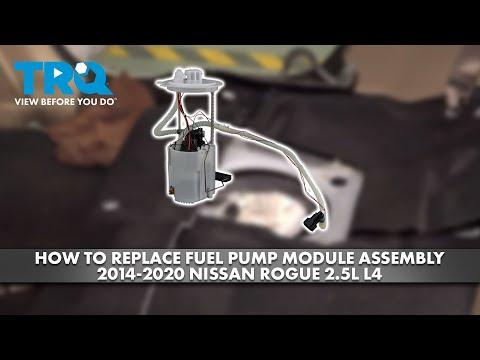

• 🔩 Fuel pump module assembly (in-tank) - Qty: 1
• 🔩 Fuel pump module seal / O-ring - Qty: 1
• 🔩 Fuel pump module lock-ring (retainer) - Qty: 1 (recommended)
• 🔩 Electrical connector repair pigtail - Qty: 1 (only if existing connector is damaged)
• 🔩 Fuel-safe cleaning spray - Qty: 1
• 🔩 Shop towels or absorbent pads - Qty: 1 pack

---

📋 Before You Begin

• 🅿️ Park your Rogue on level ground, shift to Park, and set the parking brake.
• ⛽ Try to have the fuel tank less than half full; a fuller tank increases spillage risk.
• 🔋 Turn ignition OFF, remove the key or fob from the vehicle, then disconnect the negative battery cable using a 10mm socket.
• 📉 To help relieve fuel pressure, start the engine, let it run until it stalls (if it will), then crank for a few seconds more. Turn ignition OFF afterward.
• 🚪 Open all doors or hatch to provide good ventilation while working.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the fuel pump under the rear seat

• Use the plastic trim removal tool to gently lift the front edge of the rear seat cushion (bottom part where you sit). On the Rogue, the cushion front edge usually pops up from clips.
• Lift the seat cushion up and tilt it backward to expose the metal floor area. If there are any 12mm bolts at the front, remove them with a 12mm socket and ratchet first.
• Locate the round metal access cover on the right side under the seat; this is above the fuel pump.

Step 2: Remove the access cover

• Use the 10mm socket or small flathead screwdriver (depending on style) to remove any screws or gently pry the metal cover up.
• Lift the cover away and set aside. You’ll now see the top of the fuel pump module with electrical connectors and fuel lines.
• Use shop rags to wipe away any loose dirt or dust around the pump top. Keep dirt out of tank.

Step 3: Disconnect the electrical connector

• Use a small flathead screwdriver to lift the locking tab on the fuel pump electrical connector.
• While pressing the tab, pull the connector straight off by hand. If it’s stuck, gently wiggle it; do not pull on the wires.

Step 4: Relieve any remaining fuel pressure and disconnect fuel lines

• Place shop rags around the fuel line connections to catch any fuel drips.
• Most 2021 Rogue lines use quick-connect fittings. Use the fuel line disconnect pliers to squeeze the tabs on the connector, then pull the line straight off the pump fitting.
• Catch any fuel in a plastic drain pan. Keep fuel off cabin carpet.
• Repeat for any additional lines (usually supply and return/vent).

Step 5: Clean the pump area before opening the tank

• Spray fuel-safe cleaning spray lightly around the pump flange and lock-ring to remove dust and debris.
• Wipe clean with shop rags. The goal is to avoid any dirt falling into the tank once open.

Step 6: Remove the fuel pump lock-ring

• The lock-ring is the large plastic/metal ring holding the pump down.
• Install the fuel pump lock-ring tool onto the ring tabs according to the tool design.
• Use a 3/8" drive ratchet with the tool to turn the lock-ring counterclockwise until it loosens completely.
• Lift the lock-ring off and set aside. If damaged or corroded, plan to replace it.

Step 7: Remove the fuel pump module

• Carefully lift the top of the fuel pump module straight up by hand.
• The pump has a “bucket” that extends down into the tank; tilt and rotate gently as you pull it out to avoid bending the float arm for the fuel level sensor.
• Allow excess fuel to drain from the module into the tank before fully removing it. Hold it over the tank for a moment.
• Place the removed pump module into the plastic drain pan.

Step 8: Remove and inspect the old seal

• Use needle-nose pliers or your fingers to remove the old rubber O-ring seal from the tank opening.
• Wipe the sealing surface on the tank with shop rags to ensure it is clean and smooth.

Step 9: Prepare the new fuel pump module

• Compare the new fuel pump module to the old one to confirm that the electrical connector, fuel line positions, and overall shape match.
• Install the new O-ring seal into the groove on the tank opening. Make sure it sits flat and not twisted.
• If the new pump includes a new lock-ring, use that instead of the old one.

Step 10: Install the new fuel pump module into the tank

• Carefully lower the new fuel pump module into the tank, guiding the lower “bucket” and fuel level float so they do not snag.
• Align the pump module’s locating tabs with the marks on the tank (there is usually an arrow or notch). Match marks for correct orientation.
• Hold the pump top plate down by hand to compress the O-ring slightly.

Step 11: Reinstall and torque the lock-ring

• Place the lock-ring over the pump and engage the threads or tabs.
• Use the fuel pump lock-ring tool and 3/8" ratchet to turn the ring clockwise until it seats firmly.
• Then use a torque wrench with the lock-ring tool to tighten to 70–80 Nm (52–59 ft-lbs), if your tool allows. If exact torque is not possible with your adapter, snug firmly but do not over-tighten and crack the ring.

Step 12: Reconnect fuel lines

• Push each fuel line connector straight onto its matching fitting until you hear or feel a click.
• Gently tug each line by hand to confirm it is fully locked.
• Wipe off any spilled fuel with shop rags.

Step 13: Reconnect electrical connector

• Plug the electrical connector back onto the pump module until the locking tab clicks.
• Confirm the connector is fully seated by gently pulling back on it.

Step 14: Reinstall the access cover and seat

• Place the access cover back over the pump opening.
• Secure it with any screws or clips using the 10mm socket or flathead screwdriver, as applicable.
• Lower the rear seat cushion back into place.
• If there were front seat bolts, reinstall them with a 12mm socket and tighten to 27–39 Nm (20–29 ft-lbs).

Step 15: Reconnect battery and prime the fuel system

• Reconnect the negative battery cable using a 10mm socket and tighten the nut snugly to 5–7 Nm (4–5 ft-lbs).
• Get into the driver seat and turn the ignition to ON (engine not started) for about 5 seconds, then OFF. Repeat this 3–4 times to let the new pump build pressure.

Step 16: Start the engine and check for leaks

• Start the engine and let it idle for a few minutes.
• Carefully check around the fuel pump area (under the access cover if you want to re-open briefly) for any signs of fuel leaks or strong fuel smell.
• If there are no leaks, reinstall the cover securely and fully reinstall the rear seat (if you lifted it again).

---

✅ After Repair

• 🚗 Take a short test drive (5–10 minutes) and monitor for smooth acceleration, no hesitation, and no fuel smell inside or outside the vehicle.
• 💡 If the check engine light was on due to low fuel pressure, it may clear after a few drive cycles. If it stays on, a scan tool can clear stored codes.
• 👃 Over the next day or two, briefly check inside the cabin near the rear seat for any lingering fuel odor; if present, re-check for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $700–$1,000 (parts + labor)

DIY Cost: $250–$400 (parts only)

You Save: $300–$600 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 2–3 hours.

---
