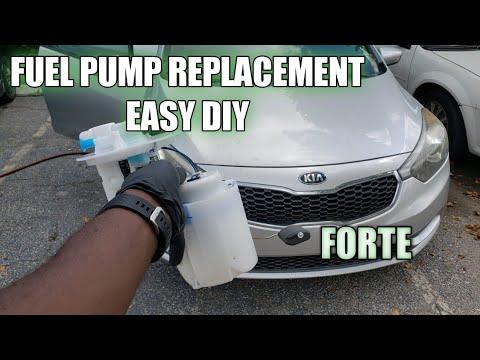

🔧 Forte - Fuel Pump Replacement

On your Forte, the fuel pump is part of an in-tank fuel pump module that’s accessed from inside the car (usually under the rear seat). The basic job is to relieve fuel pressure, unplug/connect fuel lines and wiring, then swap the module and reseal the tank opening.

Before I give you torque specs and the exact fastener method: please tell me what you see after lifting the rear seat—does the pump module use a large locking ring or several small bolts/nuts around the top? (A quick photo of the pump top is perfect.)

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area; fuel vapors ignite easily.
• ⚠️ No smoking, no heaters, no shop lights with hot bulbs; keep a fire extinguisher nearby.
• ⚠️ Depressurize the fuel system before disconnecting lines to prevent fuel spray.
• ⚠️ Disconnect the negative battery terminal to reduce spark risk.
• ⚠️ Clean dirt off the pump area before opening the tank so debris can’t fall in.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Fire extinguisher (Class B)
• 10mm socket
• 3/8" drive ratchet
• 3" extension
• Phillips screwdriver #2
• Trim removal tool
• Needle-nose pliers
• Plastic pick tool
• Non-marring brass drift punch (specialty)
• Small hammer
• Shop towels
• Catch pan
• Permanent marker
• Handheld vacuum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Dielectric grease (small packet) - Qty: 1

---

📋 Before You Begin

• Park your Forte on level ground and open the windows (reduces vapor buildup).
• Have towels and a catch pan ready; a small amount of fuel usually spills.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it can’t spring back.
• Plan to work with the fuel level as low as possible; it makes the module easier to handle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood.
• Remove the fuel pump fuse/relay (location varies by fuse panel layout). If you’re not sure, tell me what your fuse box cover diagram shows and I’ll point out the right one.
• Start the engine and let it run until it stalls; crank 2–3 seconds more to bleed remaining pressure.

Step 2: Access the fuel pump service cover

• Lift the rear seat bottom using a trim removal tool (this is a plastic pry tool that pops clips without damage).
• Locate the round/oval metal access cover.
• Remove access cover fasteners using a Phillips screwdriver #2 or 10mm socket (whichever your cover uses).
• Vacuum loose dirt using a handheld vacuum, then wipe the area with shop towels.

Step 3: Disconnect wiring and fuel lines

• Unplug the electrical connector(s) by releasing the lock tab with a plastic pick tool.
• Place shop towels around the fuel line connection.
• Disconnect the quick-connect fuel line by squeezing/releasing the connector tabs (use needle-nose pliers only if needed and gently).
• Catch any fuel drips in a catch pan.
• Tip: Pull straight; don’t twist the plastic line.

Step 4: Identify your retaining style (needed for exact torque/specs)

• Look at the top of the pump module.
• If you see a large ring that rotates: it’s a locking ring.
• If you see multiple small bolts/nuts around the perimeter: it’s a bolt/nut-retained flange.
• Stop here and reply: “locking ring” or “bolts/nuts”, or upload a clear photo. I’ll then give you the exact OEM-specific removal method and the correct torque specs for reassembly.

Step 5: (After you confirm) Remove the module

• Use a permanent marker to mark the module orientation to the tank (helps it go back the same way).
• Have shop towels ready; the module will have fuel in it when lifted out.

Step 6: (After you confirm) Replace seal and reinstall

• Remove the old tank seal and install the new fuel pump module tank seal (O-ring/gasket).
• Reinstall the module aligned to your marks.
• Reconnect fuel line(s) until you hear/feel a positive click.
• Reconnect electrical connector(s); apply a tiny amount of dielectric grease to the connector seal if dry.

---

✅ After Repair

• Reinstall the access cover and rear seat.
• Reinstall the fuel pump fuse/relay.
• Reconnect the negative battery cable.
• Prime the system: key ON for 5 seconds, key OFF for 5 seconds; repeat 3 times (this builds pressure before starting).
• Start the engine and check carefully for fuel smell or leaks at the service opening and fuel line connection.
• Test drive briefly, then re-check for any seepage.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $400-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
