Colorado - Fuel Pump Replacement ⛽

On your Colorado, the main fuel pump is part of the fuel pump module inside the fuel tank. Replacing it is a moderate job because the tank must be lowered.

First, I need one detail to give exact steps:

• 🔧 Is your Colorado a short bed or long bed? (If you’re not sure, tell me if the bed looks “normal” or “extra long” compared to other pickups.)

I’ll give the full step-by-step once you answer that, but here’s the overview so you know what’s involved.

Colorado - Safety & Prep ⚠️

• ⚠️ Work with almost empty tank – Fuel is heavy; try to get the tank under 1/4 full.
• ⚠️ No sparks or flames – No smoking, no grinding, no open flame near fuel.
• ⚠️ Disconnect battery – Remove the negative (black) cable to avoid accidental sparks.
• ⚠️ Support the truck safely – Use a floor jack (hydraulic jack that lifts the vehicle) and jack stands (metal stands that hold the vehicle up).
• ⚠️ Eye protection & gloves – Gasoline is nasty on skin and eyes.

Colorado - Tools & Parts You’ll Need 🧰

• 🛠️ New fuel pump module (complete assembly with seal/O-ring, for your 2.5L Colorado)
• 🛠️ Basic socket set (metric, 8–19 mm) with ratchet and extensions
• 🛠️ Wrenches (metric combination wrenches)
• 🛠️ Flat screwdriver or small trim tool (for clips)
• 🛠️ Fuel line disconnect tool (small plastic tool that releases quick-connect fuel fittings)
• 🛠️ Floor jack and jack stands
• 🛠️ Transmission jack or a wide board on a floor jack (to support the fuel tank)
• 🛠️ Drain pan / container (to catch any spilled fuel)
• 🛠️ Shop rags and brake cleaner (to clean around the pump opening)
• 🛠️ Torque wrench (tool that lets you tighten bolts to a specific torque)

Colorado - Key Torque Specs 🔩

• 🔧 Fuel tank strap bolts: ~37 lb-ft (50 N·m)
• 🔧 Fuel pump module lock ring: Tighten until tabs align and ring is fully seated (GM uses a special tool; I’ll explain how to do it safely without over-tightening).

Colorado - Step 1: Relieve Fuel Pressure ⛽

• 🔧 Remove the fuel pump fuse or fuel pump relay from the underhood fuse box (I’ll point to the exact location once we continue).
• 🔧 Start the engine and let it run until it stalls. This uses up the pressure in the fuel line.
• 🔧 Crank for a few more seconds to be sure pressure is gone.
• 🔧 Turn key OFF and disconnect the negative battery cable.

Colorado - Step 2: Raise and Support the Truck 🛞

• 🛠️ Park on level ground, set parking brake, chock front wheels (wheel chocks are blocks that stop the truck from rolling).
• 🛠️ Jack up the rear of the truck at the frame, then place jack stands under the frame rails on both sides.
• 🛠️ Gently lower the truck onto the stands and shake it slightly to confirm it’s stable.

Colorado - Step 3: Access the Fuel Tank Area 🔍

• 🛠️ From under the truck, locate the fuel tank on the driver side.
• 🛠️ Follow the filler neck (the pipe from the fuel door to the tank).
• 🛠️ Unplug any electrical connectors and vapor/EVAP hoses you can reach at the rear of the tank. These usually have squeeze tabs or small clips.

Colorado - Step 4: Disconnect Filler Neck & Lines 🧵

• 🛠️ At the tank end of the filler neck, loosen the hose clamp (usually a flat screwdriver or 7–8 mm socket).
• 🛠️ Gently twist and pull the filler hose off the tank neck.
• 🛠️ Disconnect the vent hose (smaller hose next to the filler) by releasing its clamp or quick connector.
• 🛠️ Use the fuel line disconnect tool on the fuel supply line quick-connect fitting at the tank:
  • Insert the tool into the fitting.
  • Push the line in slightly, then push the tool in, then pull the line off.
  • Keep a rag under it; a little fuel will spill.

Colorado - Step 5: Support and Lower the Fuel Tank 🪜

• 🛠️ Place a transmission jack or floor jack with a wide board under the center of the tank to spread the load.
• 🛠️ Remove the fuel tank strap bolts (usually 15–18 mm). There are typically two straps.
• 🛠️ Slowly lower the tank a few inches and check for:
  • Any remaining electrical connectors
  • EVAP hoses or lines still attached
• 🛠️ Disconnect anything still attached, then continue lowering the tank until you can slide it out from under the truck.

Colorado - Step 6: Remove the Fuel Pump Module 🧽

• 🛠️ Clean the top of the tank around the pump module with a brush and brake cleaner. Keep dirt out of the tank.
• 🛠️ Unplug the electrical connector on the pump module.

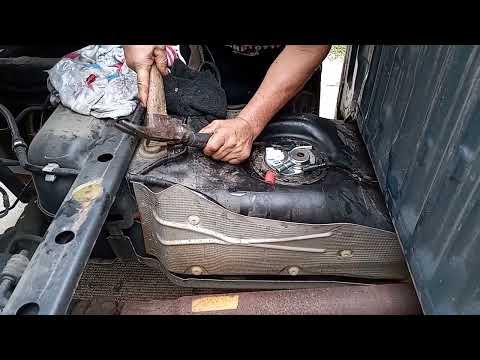

• 🛠️ The pump is held by a lock ring:
  • GM uses a special lock-ring tool, but you can use a brass punch and hammer.
  • Tap the ring counterclockwise until it loosens.
• 🛠️ Lift the pump module straight up. Tilt it slightly to get the float arm and sock filter out without bending them.
• 🛠️ Remove the old O-ring seal from the tank opening.

Colorado - Step 7: Install the New Fuel Pump Module 🆕

• 🛠️ Lightly coat the new O-ring with clean engine oil or a bit of fresh fuel.
• 🛠️ Place the O-ring in the groove on the tank opening (not on the pump).
• 🛠️ Carefully lower the new pump module into the tank, guiding the float arm and sock.
• 🛠️ Align the marks or tabs on the pump and tank (note how the old one was oriented).
• 🛠️ Install the lock ring and tap it clockwise until it fully seats and the tabs line up. Do not over-hammer; just fully seated.
• 🛠️ Reconnect the electrical connector on the pump.

Colorado - Step 8: Reinstall the Fuel Tank 🔁

• 🛠️ Slide the tank back under the truck and raise it slowly with the jack.
• 🛠️ As you raise it, reconnect:
  • Fuel supply line (you should hear/feel a click)
  • EVAP/vapor hoses
  • Electrical connectors
• 🛠️ Reattach the filler neck hose and vent hose with their clamps.
• 🛠️ Install the tank straps and tighten strap bolts to about 37 lb-ft (50 N·m).
• 🛠️ Double-check all connections and that no hoses are kinked or pinched.

Colorado - Step 9: Prime System & Check for Leaks ✅

• 🛠️ Reinstall the fuel pump fuse/relay.
• 🛠️ Reconnect the negative battery cable.
• 🛠️ Turn the key to ON (not start) for 5 seconds, then OFF. Do this 3–4 times to prime the system.
• 🛠️ Check under the truck for any fuel leaks.
• 🛠️ Start the engine. It may crank a bit longer the first time; then it should run normally.
• 🛠️ With the engine running, check again for leaks at the tank and fuel line connections.

Colorado - Tips for a First-Time DIYer 💡

• 🛠️ Take pictures of every connection before you unplug it. Great for reassembly.
• 🛠️ Label hoses with tape and a marker (e.g., “vent,” “EVAP”).
• 🛠️ If the tank feels too heavy or awkward, get a helper. Don’t fight it alone.

Reply with whether your truck is short bed or long bed, and I’ll fine-tune these steps and point out the exact fuse/relay locations and any small differences for your specific setup.
