🔧 Accord - Fuel Pump Replacement

On your Accord, the main fuel pump is inside the fuel tank and supplies fuel to the engine and high-pressure system. Replacing it involves safely depressurizing the fuel system, accessing the pump module from under the rear seat, and swapping the pump assembly with a new one. This is a detailed job, but you can do it carefully with patience and the right tools.

Difficulty Level: Advanced | Estimated Time: 3-4 hours

---

⚠️ Safety & Precautions

• ⚠️ High-voltage hybrid system: Do not touch orange cables or connectors; we will not disconnect high-voltage components for this job.
• ⚠️ Fire risk: Work away from flames, sparks, heaters, or smoking. Gasoline vapors can ignite easily.
• ⚠️ Ventilation: Work in a very well-ventilated area or with doors/windows open to avoid breathing fuel vapors.
• ⚠️ Battery disconnection: You will disconnect the 12V battery negative terminal to avoid accidental sparks and pump activation.
• ⚠️ Fuel exposure: Wear gloves and safety glasses to avoid skin and eye contact with fuel.
• ⚠️ Cleanliness: Keep dirt out of the tank opening; contamination can damage the new pump and injectors.
• ⚠️ Support surfaces: You do not need to raise the car for this job; access is from inside the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ Ratchet handle 3/8"
• 🛠️ 3/8" extension bar
• 🛠️ Trim removal tool (plastic)
• 🛠️ Flathead screwdriver small
• 🛠️ Needle-nose pliers
• 🛠️ Fuel line disconnect tool set (Honda-style) (specialty)
• 🛠️ Fuel pump retaining ring tool (Honda fuel pump lock ring tool) (specialty)
• 🛠️ Torque wrench 3/8" drive (5-30 Nm range)
• 🛠️ Clean shop rags
• 🛠️ Small plastic container or drain pan
• 🛠️ Flashlight or work light (non-sparking, LED)
• 🛠️ Disposable nitrile gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 In-tank fuel pump module assembly (with fuel level sender) - Qty: 1
• 🔩 Fuel pump module sealing gasket/O-ring - Qty: 1
• 🔩 Fuel line retaining clips (quick-connect clips) - Qty: 2-3
• 🔩 Electrical connector terminal grease (dielectric grease) - Qty: 1 small tube
• 🔩 Shop towels or absorbent pads - Qty: 1 pack

---

📋 Before You Begin

• Park your Accord on level ground, shift to Park, and set the parking brake.
• Lower the fuel level if possible; ideally below half a tank so the tank is lighter and there is less spillage.
• Turn off all accessories and remove the key fob from the car so the fuel pump does not prime unexpectedly.
• Open all doors or windows for ventilation while working.
• Disconnect the 12V battery:
  • Open the hood.
  • Use a 10mm socket and ratchet to loosen the negative (-) battery terminal clamp.
  • Lift the clamp off and secure it so it cannot spring back to the terminal.
• Relieve fuel pressure (we will do this as part of the steps, but be aware some fuel will still be in the lines).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the fuel pump under the rear seat

• Open the rear doors and locate the rear seat bottom cushion; on the Accord, the fuel pump access is under this cushion.
• Use a trim removal tool (plastic) to gently pop up the front edge clips of the rear seat bottom; there are usually two main clips near the front.
• Lift the front of the seat cushion and pull it forward to remove it from the car. Move slowly to avoid breaking clips
• Locate the round metal access cover on the floor; this is above the fuel pump module.

Step 2: Remove the access cover

• Use a flathead screwdriver small to carefully lift any insulation or tape over the access cover edge.
• If the cover is held by sealant or butyl tape, use the trim removal tool (plastic) to gently pry it up around the edges.
• Lift the cover and set it aside, keeping dirt away from the open area.

Step 3: Disconnect the fuel pump electrical connector

• Shine a flashlight or work light (non-sparking, LED) on the pump top to see the connectors clearly.
• Locate the main electrical connector; press the lock tab with your finger or a flathead screwdriver small and pull the connector straight off.
• If the connector is tight, gently wiggle while pulling; do not pull on the wires.

Step 4: Relieve fuel pressure at the line

• Place shop towels or absorbent pads around the fuel line connection to catch any fuel.
• Locate the fuel supply line quick-connect fitting on the pump top.
• Use the correct size fuel line disconnect tool set (Honda-style) (specialty) to release the quick-connect:
  • Slide the tool into the fitting to spread the internal locks.
  • While holding the tool in place, pull the fuel line off the pump fitting.
• Allow any fuel to drain into a small plastic container or drain pan, then plug or cap the line if possible. Keep rags ready for drips

Step 5: Clean around the pump and prepare to remove it

• Use clean shop rags to wipe dirt and dust from around the pump retaining ring and tank opening area.
• Make sure no loose debris can fall into the tank once it is open.

Step 6: Remove the fuel pump retaining ring

• The pump is held by a large plastic or metal locking ring.
• Install the fuel pump retaining ring tool (Honda fuel pump lock ring tool) (specialty) over the ring according to the tool’s design.
• Use a ratchet handle 3/8" and, if required, a 3/8" extension bar on the tool to turn the ring counterclockwise.
• Carefully spin the ring off and set it aside where it will stay clean.

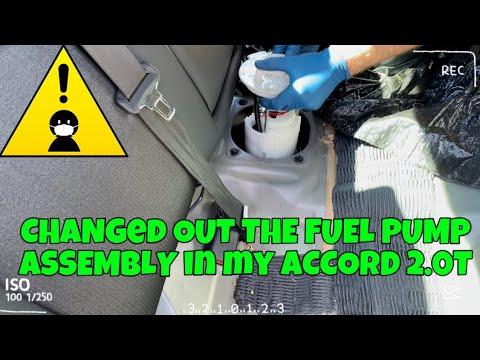

Step 7: Remove the old fuel pump module

• Gently lift the pump module straight up by its top flange.
• As you pull it up, tilt and angle it slightly to clear the float arm for the fuel gauge; do not bend the arm.
• Allow excess fuel to drain from the pump into the tank for a few seconds before fully removing it.
• Place the old pump module into the small plastic container or drain pan so fuel does not spill inside the car.

Step 8: Remove and inspect the old sealing gasket

• Remove the old rubber sealing gasket/O-ring from the tank opening using needle-nose pliers if needed.
• Wipe the sealing surface on the tank with clean shop rags; make sure the surface is smooth and free of old gasket material.

Step 9: Prepare the new fuel pump module

• Compare the new pump module to the old one: check connector type, hose fittings, and float arm orientation to be sure they match.
• Install the new fuel pump module sealing gasket/O-ring onto the tank opening, not on the pump, unless the new pump instructions say otherwise.
• Lightly apply a very thin film of clean fuel to the gasket to help it seat; do not use oil or grease on the gasket.

Step 10: Install the new fuel pump module

• Lower the new pump module carefully into the tank, guiding the float arm so it does not snag or bend.
• Align the marks or tabs on the pump top with the marks on the tank (Honda usually has alignment marks molded into the plastic).
• Make sure the gasket stays in place and is not pinched out of position.

Step 11: Reinstall and torque the retaining ring

• Thread the retaining ring back on by hand to avoid cross-threading.
• Install the fuel pump retaining ring tool (Honda fuel pump lock ring tool) (specialty) over the ring.
• Use the ratchet handle 3/8" and torque wrench 3/8" drive (5-30 Nm range) to tighten the ring to Honda’s spec: Torque to 70-80 Nm (52-59 ft-lbs).
• Stop if the ring feels like it is jumping threads

Step 12: Reconnect the fuel line and electrical connector

• Push the fuel line quick-connect fitting straight onto the pump outlet until you hear or feel a click.
• Gently tug on the line to confirm it is locked.
• If you are replacing any fuel line retaining clips (quick-connect clips), install them now using needle-nose pliers.
• Apply a tiny dab of electrical connector terminal grease (dielectric grease) to the electrical connector seal if desired.
• Reconnect the pump electrical connector by pushing it straight on until it clicks.

Step 13: Reinstall the access cover and rear seat

• Place the metal access cover back in position over the pump opening.
• Press it down firmly; if there was adhesive or tape, press it back into place or add new sealing tape if needed.
• Reinstall the rear seat cushion:
  • Slide the rear edge under the seatback.
  • Push down firmly over each front clip location until you hear it snap in.

Step 14: Reconnect the 12V battery and prime the system

• Under the hood, reinstall the negative (-) battery cable onto the terminal.
• Use a 10mm socket and torque wrench 3/8" drive (5-30 Nm range) to tighten the clamp: Torque to 5-7 Nm (4-5 ft-lbs) (snug, not overly tight).
• Get into the driver’s seat with all doors closed.
• Without pressing the brake pedal, press the START/STOP button twice to turn the ignition to ON (do not start the engine). You should hear the fuel pump run for a few seconds.
• Turn ignition OFF, then repeat this prime cycle 2-3 times to build pressure.

Step 15: Start the engine and check for leaks

• Press the brake pedal and start the engine normally.
• Let the engine run at idle for a few minutes while you check around the fuel pump area (from inside the car under the seat) for any fuel smell or visible leaks.
• If you see or smell fuel, shut the engine off immediately and recheck the fuel line connection and pump seal.
• Once you are sure there are no leaks, reinstall any trim or insulation you moved.

---

✅ After Repair

• Verify that the engine starts easily and runs smoothly without hesitation.
• Check the fuel gauge reading; it should be reasonable for the known fuel level. If it is wildly wrong, the float arm may be mispositioned.
• Take a short, gentle test drive around your area and watch for any warning lights on the dashboard.
• After the drive, recheck the area under the rear seat for fuel odor or dampness.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$950 (parts + labor)

DIY Cost: $250-$450 (parts only)

You Save: $200-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
