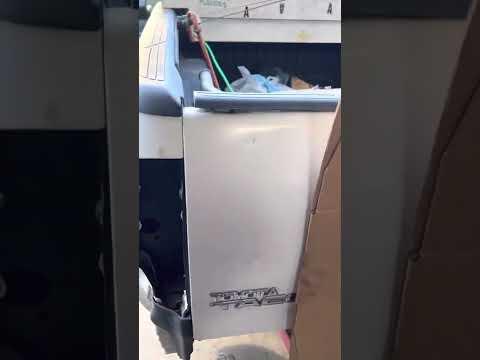

🔧 Tacoma - Fuel Pump Replacement

You’ll be replacing the in-tank electric fuel pump, which is part of the fuel pump module sitting on top of the fuel tank. On your Tacoma, this requires safely lowering the fuel tank to remove the pump assembly, then swapping it out and reinstalling everything.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• 🔥 Work in a well-ventilated area away from open flames, heaters, or anything that can spark.
• 🧯 Keep a Class B/C fire extinguisher nearby when working with fuel.
• ⚡ Disconnect the negative battery cable before working near fuel lines or electrical connectors.
• 💨 Relieve fuel system pressure before disconnecting any fuel lines to avoid spray.
• 🚗 Properly support the truck with jack stands; never rely only on a floor jack.
• ⛽ Try to have the fuel tank as close to empty as possible; a full tank is very heavy and harder to control.
• 😷 Avoid breathing fuel vapors; wear gloves and eye protection to prevent skin/eye contact with fuel.
• 📛 Do not smoke or use power tools that produce sparks near open fuel.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet 3/8"
• Ratchet 1/2"
• Socket 10mm
• Socket 12mm
• Socket 14mm
• Socket 17mm
• Deep socket 12mm
• Deep socket 14mm
• Extension 6"
• Extension 12"
• Torque wrench 3/8" drive (5-80 ft-lbs range)
• Torque wrench 1/2" drive (30-150 ft-lbs range)
• Flathead screwdriver medium
• Trim clip removal tool
• Fuel line disconnect tool set (Toyota quick-connect) (specialty)
• Fuel pump locking ring tool (Toyota-style) (specialty)
• Plastic or rubber mallet
• Drain pan 2-3 gallons
• Shop rags
• Safety glasses
• Nitrile gloves
• Work light LED
• Marker or paint pen
• Small pick tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly (in-tank) - Qty: 1
• Fuel pump module gasket/O-ring (tank seal) - Qty: 1
• Fuel pump locking ring - Qty: 1 (recommended if corroded)
• Fuel tank strap bolts - Qty: 4 (recommended replacement)
• Fuel hose clamps - Qty: 2-4 (if any non-quick-connect hoses are present)
• Brake cleaner spray - Qty: 1 (for cleaning around pump opening)
• Anti-seize compound - Qty: 1 (for tank strap bolts)
• Dielectric grease - Qty: 1 (for electrical connector seals)

---

📋 Before You Begin

• Park the Tacoma on level ground, apply the parking brake, and place wheel chocks behind the rear wheels.
• Drive until the fuel level is low (¼ tank or less) to reduce weight.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot spring back.
• Open the fuel filler door and remove the gas cap to release any tank vapor pressure.
• Gather all tools and parts so the truck is not left open with the tank off for long.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel system pressure

• Re-connect the negative battery cable temporarily with a 10mm socket if you already removed it.
• Locate the fuel pump relay/fuse in the engine bay fuse box (refer to the fuse box cover diagram) and pull the relay or fuse using your fingers or a small pick tool.
• Start the engine and let it run until it stalls; this uses up pressure in the fuel line.
• Crank for a few more seconds to be sure, then turn the key off.
• Disconnect the negative battery cable again with a 10mm socket.
• Relieving pressure prevents fuel spray when lines are opened.

Step 2: Raise and support the truck

• Place the floor jack under the frame rail in front of the rear wheel on one side and lift until the rear wheel is slightly off the ground.
• Install jack stands under the frame on both sides, then slowly lower the truck onto the stands using the floor jack.
• Shake the truck slightly by hand to confirm it is stable.
• Never work under a vehicle supported only by a jack.

Step 3: Remove rear skid plate (if equipped)

• Position your work light and look under the truck for the skid plate covering the fuel tank area (if your TRD Sport has one installed).
• Use a 12mm socket with a ratchet 3/8" to remove the skid plate bolts.
• Support the skid plate with one hand as you remove the last bolt, then lower it and set it aside.
• Torque spec on install: 39 Nm (29 ft-lbs).

Step 4: Disconnect filler neck and vent hoses

• Locate the rubber hoses running from the fuel filler neck down to the tank.
• Use a flathead screwdriver to loosen the hose clamp screws on the large filler hose and any smaller vent hoses.
• Gently twist and pull the hoses off the tank fittings by hand; if stuck, work them free with the flathead screwdriver carefully to avoid tearing.
• Mark hose positions with a marker or paint pen to remember orientation.

Step 5: Disconnect electrical connectors and vapor lines from tank

• Locate the fuel tank wiring harness connector on the front or top side of the tank.
• Press the locking tab and separate the connector by hand; use a small pick tool if the tab is stubborn.
• Locate any small plastic vapor (EVAP) lines connected to the tank or pump module area.
• Use your fingers or a fuel line disconnect tool set for any quick-connect style fittings—press the colored tabs in while gently pulling the line off.
• Support lines; never yank by the hose only.

Step 6: Support the fuel tank with the jack

• Place a piece of wood (flat board) on the pad of the floor jack to spread the load and avoid denting the tank.
• Roll the jack under the center of the fuel tank and raise it until the wood contacts the tank snugly to support its weight.

Step 7: Remove fuel tank strap bolts and lower the tank

• Locate the fuel tank straps (metal bands holding the tank up) and their mounting bolts.
• Use a 14mm socket with a ratchet 1/2" or ratchet 3/8" and possibly a extension 6" to remove the strap bolts.
• Remove the rear strap bolts first, then swing the straps down carefully.
• Slowly lower the tank using the floor jack, watching for any hoses or wires still attached.
• If you see any line still connected, stop lowering, disconnect it using your hands or the fuel line disconnect tool set, then continue lowering.
• Lower the tank enough to access the top; in many cases you can leave it on the jack instead of pulling it completely out from under the truck if you have enough room.
• Torque spec on install for tank strap bolts: 45 Nm (33 ft-lbs).

Step 8: Clean around the fuel pump module

• With the tank supported and lowered, locate the round fuel pump module on the top side of the tank.
• Use shop rags to wipe off any loose dirt or dust around the pump and locking ring.
• Lightly spray brake cleaner spray around the area and wipe again so no dirt falls into the tank when opened.
• Cleanliness here prevents debris entering the fuel system.

Step 9: Disconnect fuel lines and electrical connector at the pump

• Identify the main fuel line quick-connect fitting on the pump module.
• Use the correct size from the fuel line disconnect tool set, slide it into the fitting, then pull the line off gently.
• Disconnect the main electrical connector to the pump module by pressing the tab and pulling apart by hand.
• Move lines and connectors aside so they won’t snag when removing the module.

Step 10: Remove the fuel pump locking ring

• Use a marker or paint pen to mark the current alignment between the locking ring and tank to help with reinstallation.
• Install the fuel pump locking ring tool (specialty) on the locking ring.
• Use a ratchet 1/2" or ratchet 3/8" with the tool to rotate the ring counter-clockwise until it releases.
• If you do not have the special tool, you can carefully tap the ring loose using a plastic or rubber mallet and a flathead screwdriver, but be very gentle to avoid sparks and damage.
• Remove the locking ring and set it aside; replace it if it’s rusty or damaged.

Step 11: Remove the fuel pump module

• Lift the pump module straight up slowly; the fuel level float arm will need to be angled to clear the tank opening.
• Allow excess fuel to drain from the pump assembly into the tank before fully removing.
• Carefully remove the old O-ring/gasket from the tank opening by hand; do not drop it into the tank.
• Inspect inside the tank with your work light; if you see debris, use clean shop rags attached to a stick to wipe gently.

Step 12: Swap pump (if using pump-only kit) or prepare new module

• If you are installing a complete new module, compare the new unit to the old one to ensure all connectors, hose ports, and float arm positions match.
• If you are replacing only the internal pump inside the module, follow the pump kit instructions to move the level sender and other parts from old to new using basic tools like a flathead screwdriver and your hands.
• Apply a thin layer of dielectric grease to electrical connector seals on the new module.

Step 13: Install new O-ring and fuel pump module

• Wipe the tank sealing surface clean with shop rags.
• Place the new O-ring/gasket in the groove on the tank; make sure it lies flat and is not twisted.
• Lower the new pump module into the tank, guiding the float arm in carefully to avoid bending it.
• Align the tabs on the module flange with the marks on the tank made earlier.

Step 14: Install and torque the locking ring

• Position the locking ring over the module and start it by hand, making sure it sits squarely on the O-ring.
• Use the fuel pump locking ring tool (specialty) with a ratchet 1/2" or ratchet 3/8" to turn the ring clockwise until it lines up with your marks and fully seats.
• Torque spec for fuel pump locking ring: 68 Nm (50 ft-lbs) if your tool allows torquing.
• Even pressure helps prevent future fuel leaks.

Step 15: Reconnect lines and wiring at the pump

• Reconnect the main fuel line quick-connect by pushing it onto the fitting until you feel and hear a click; gently tug to confirm it is locked.
• Reconnect the electrical connector to the pump module by hand until it clicks.
• Reconnect any small EVAP/vapor lines you removed from the module earlier.

Step 16: Raise the fuel tank back into position

• Slowly raise the tank using the floor jack, watching that no lines or wires get pinched.
• Reinstall the tank straps in place while supporting the tank with the jack.
• Apply a very light coat of anti-seize compound to the tank strap bolts.
• Install tank strap bolts with a 14mm socket by hand first to avoid cross-threading.
• Once all bolts are started, torque them evenly using a torque wrench 1/2" and 14mm socket to 45 Nm (33 ft-lbs).

Step 17: Reconnect filler neck, vent hoses, and harness

• Push the large filler hose back onto the tank neck until fully seated, using your marks from earlier as a guide.
• Install and tighten the hose clamps with a flathead screwdriver.
• Reconnect any smaller vent hoses in their original locations, again tightening clamps with a flathead screwdriver.
• Reconnect the main fuel tank wiring harness connector by hand until it clicks.
• Reconnect any EVAP/vapor lines at the tank connections by hand or with the fuel line disconnect tool set if needed.

Step 18: Reinstall skid plate (if removed)

• Lift the skid plate into position under the tank.
• Install the skid plate bolts by hand, then tighten them with a 12mm socket and ratchet 3/8".
• Torque the bolts using a torque wrench 3/8" and 12mm socket to 39 Nm (29 ft-lbs).

Step 19: Lower the truck and reconnect the battery

• Use the floor jack to lift the rear slightly and remove the jack stands, then lower the Tacoma to the ground.
• Reinstall the negative battery cable using a 10mm socket and tighten snugly.

Step 20: Prime the fuel system and check for leaks

• Turn the ignition key to the ON position (do not start) and leave it for about 5 seconds to let the pump run and build pressure.
• Turn the key OFF, then back ON for 5 seconds; repeat this 3–4 times.
• Start the engine and let it idle.
• With the engine running, carefully look underneath (from the side, not directly under) for any fuel drips around the tank area and fuel lines.
• If you see or smell fuel, shut off engine immediately.

---

✅ After Repair

• Verify the engine starts quickly and idles smoothly, with no hesitation.
• Check the fuel gauge reading to ensure the level sender is working correctly.
• Inspect under the truck again after a short drive to confirm no fuel leaks have developed.
• Dispose of any fuel-soaked rags and old parts according to local hazardous waste rules.

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,200 (parts + labor)

DIY Cost: $250-$450 (parts only)

You Save: $500-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours.

---
