🔧 Fuel Pump - Replacement

This job replaces the in-tank fuel pump module on your Tiguan. On this vehicle, the pump is accessed from inside the cabin, so you do not need to drop the fuel tank for a normal pump replacement.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work in a well-ventilated area away from flames, sparks, and heaters.
• Relieve fuel pressure before opening the fuel system.
• Disconnect the negative battery cable before unplugging the fuel pump.
• Keep a fire extinguisher rated for fuel fires nearby.
• Fuel vapors are harmful; avoid breathing fumes.
• Use eye protection and fuel-resistant gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• Ratchet
• Extension bar
• Flat-blade trim tool
• Fuel pump lock ring tool (specialty)
• Fuel line disconnect tool
• Pliers
• Torque wrench
• Drain pan
• Shop towels
• Safety glasses
• Nitrile gloves
• Jack stands
• Floor jack

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump seal / O-ring - Qty: 1
• Fuel filter element - Qty: 1
• Fuel hose clamps - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Run the fuel level as low as safely possible before starting.
• Open the fuel door and remove the gas cap to help relieve vapor pressure.
• Disconnect the negative battery cable.
• Have shop towels ready for any spilled fuel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Remove the fuel pump fuse or relay from the fuse panel.
• Start the engine and let it run until it stalls.
• Crank for 2-3 more seconds to bleed off remaining pressure.
• Keep the key away from the car.

Step 2: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable.
• Move the cable aside so it cannot touch the terminal.

Step 3: Access the pump service cover

• Fold the rear seat cushion up and remove the service access cover from the floor.
• Use a flat-blade trim tool to carefully lift the cover without bending it.

Step 4: Disconnect the electrical connector and fuel line

• Unplug the fuel pump electrical connector by pressing the lock tab.
• Use a fuel line disconnect tool to release the fuel supply line.
• Wrap the line with a shop towel before disconnecting it.

Step 5: Remove the pump lock ring

• Clean the top of the pump module first so dirt does not fall into the tank.
• Use a fuel pump lock ring tool (specialty) to turn the locking ring counterclockwise.
• Lift the ring off and set it aside.
• Mark the module position before removal.

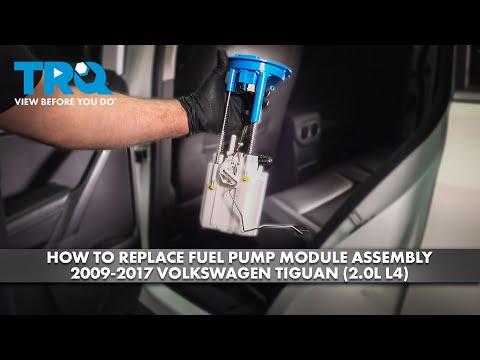

Step 6: Remove the fuel pump module

• Carefully lift the pump module out of the tank.
• Angle the float arm gently so it does not bend.
• Drain excess fuel into a drain pan.

Step 7: Install the new fuel pump module

• Compare the new module to the old one before installation.
• Install the new fuel pump seal / O-ring on the tank opening.
• Lower the new module into the tank in the same orientation as the original.
• Use the fuel pump lock ring tool (specialty) to tighten the ring.
• Torque to 70 Nm (52 ft-lbs).

Step 8: Reconnect lines and wiring

• Reconnect the fuel line until it clicks fully into place.
• Plug in the electrical connector until the lock tab snaps.
• Double-check that the hose and connector are fully seated.

Step 9: Reassemble the access area

• Reinstall the service cover and rear seat trim.
• Use the flat-blade trim tool to seat clips evenly.

Step 10: Restore power and prime the system

• Reconnect the negative battery cable using the 10mm socket.
• Turn the ignition on for 5 seconds, then off.
• Repeat this 3 times to prime the fuel system.
• Check carefully for leaks around the pump cover and fuel line.

---

✅ After Repair

• Start the engine and let it idle.
• Check for fuel leaks immediately.
• Listen for smooth pump operation.
• Take a short test drive and recheck for fuel odor or warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,300 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $520-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
