🔧 Fuel Pump - Replacement

On your Tacoma, the fuel pump is inside the fuel tank as part of the fuel pump module. This job usually means relieving fuel pressure, lowering the tank, and swapping the pump module or complete assembly. Fuel vapors are flammable, so work slowly and keep sparks away.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Work outside or in a very well-ventilated area. Fuel vapors are dangerous.
• Disconnect the negative battery cable before opening the fuel system.
• Relieve fuel pressure before disconnecting any fuel lines.
• Keep a class B fire extinguisher nearby.
• No smoking, open flames, heat guns, or shop heaters near the truck.
• Support the fuel tank securely before loosening straps.
• Use jack stands on solid ground. Never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Shop rags
• Drain pan
• Floor jack (rated 3-ton minimum)
• Jack stands (rated for truck weight)
• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Long extension
• Torque wrench
• Fuel line disconnect tool (specialty)
• Fuel tank lock ring tool (specialty)
• Trim panel tool
• Pliers
• Brass punch
• Non-sparking hammer

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump tank seal - Qty: 1
• Fuel filter sock - Qty: 1
• Fuel tank locking ring - Qty: 1
• Fuel line clips - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Run the fuel level as low as safely possible before starting. A lighter tank is easier to lower.
• Disconnect the negative battery cable with a 10mm socket.
• Relieve fuel pressure at the fuel system before disconnecting lines.
• Have a drain pan ready in case fuel spills from the lines or module.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Use the fuel pump relay/fuse method or the fuel system service procedure to remove pressure from the line.
• Crank the engine briefly after pressure relief, if needed, to bleed off remaining pressure.
• Keep rags ready for drips.

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery cable.
• Move the cable aside so it cannot spring back and touch the terminal.

Step 3: Raise and support the truck

• Use a floor jack and jack stands to raise and support the Tacoma safely.
• Make sure you have enough room to lower the fuel tank.

Step 4: Remove anything blocking tank access

• Use a 12mm socket and 14mm socket to remove any shields, brackets, or crossmember hardware that blocks the fuel tank.
• Set all fasteners aside in order so reassembly is easier.

Step 5: Support the fuel tank

• Place a floor jack under the tank with a wide wood block or pad.
• Lift the jack just enough to hold the tank steady.

Step 6: Disconnect fuel and electrical connections

• Use a fuel line disconnect tool (specialty) to release the fuel line connectors.
• Unplug the electrical connector to the fuel pump module.
• Disconnect any vent or EVAP hoses attached to the tank.
• Mark each hose before removal.

Step 7: Lower the fuel tank

• Use a 14mm socket to remove the tank strap bolts.
• Lower the tank slowly with the jack while watching for any hoses or wires still attached.
• Remove the tank from under the truck once it is clear.

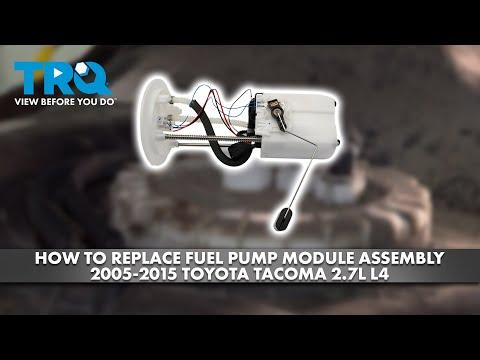

Step 8: Remove the fuel pump module

• Clean the area around the top of the tank so dirt does not fall inside.
• Use a fuel tank lock ring tool (specialty) to remove the lock ring.
• Lift the fuel pump module out carefully.
• Remove the old tank seal and compare the old module to the new one.

Step 9: Install the new module

• Install the new fuel pump tank seal in the tank opening.
• Lower the new fuel pump module into place without bending the float arm.
• Install the lock ring and tighten it with the fuel tank lock ring tool (specialty).
• Torque to factory specification for the lock ring.

Step 10: Reinstall the tank

• Raise the tank with the floor jack and reconnect all hoses, lines, and the electrical connector.
• Install the tank straps with a 14mm socket.
• Torque to factory specification for the tank strap bolts.
• Reinstall any shields or brackets removed earlier.

Step 11: Restore power and prime the system

• Reconnect the negative battery cable with a 10mm socket.
• Turn the key to ON for a few seconds, then OFF. Repeat 2-3 times to prime the fuel system.
• Start the engine and check for leaks around the tank and fuel lines.

---

✅ After Repair

• Inspect for fuel leaks with the engine running.
• Check that the fuel gauge reads normally after a short drive.
• If the engine runs rough at first, let it idle and recheck all connections.
• Dispose of any fuel-soaked rags safely.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
