🔧 Fuel Pump - Replacement

This job replaces the in-tank fuel pump module. On your Land Cruiser, the safest full-service method is usually to lower the fuel tank and service the pump from the top of the tank if there is no factory access panel. Fuel is flammable, so work slowly and keep all sparks and heat away from the area.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Work in a well-ventilated area away from open flames, heaters, and smoking.
• Relieve fuel pressure before opening any fuel line.
• Disconnect the negative battery terminal before starting.
• Support the fuel tank securely before removing straps or lines.
• Wear safety glasses and fuel-resistant gloves.
• Have a class B fire extinguisher nearby.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Short extension
• Fuel line disconnect tool
• Flat-blade screwdriver
• Pliers
• Trim removal tool
• Floor jack (rated 3-ton minimum)
• Jack stands
• Drain pan
• Torque wrench
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump module seal - Qty: 1
• Fuel tank strap bolts - Qty: 2
• Fuel line O-rings - Qty: 1 set

---

📋 Before You Begin

• Park on a level surface and set the parking brake.
• Run the fuel level low if possible to make the tank lighter.
• Disconnect the negative battery terminal with a 10mm socket.
• Relieve fuel system pressure before disconnecting lines.
• Label every connector and hose.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Remove the fuel pump fuse or relay.
• Start the engine and let it run until it stalls.
• Crank for 2-3 seconds more to release the remaining pressure.
• Turn the key off and disconnect the negative battery cable with a 10mm socket.

Step 2: Raise and support the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the rear of the vehicle.
• Place it securely on jack stands.
• Do not work under a vehicle supported only by a jack.

Step 3: Remove skid plates and shields

• Use a 14mm socket and 12mm socket to remove any fuel tank skid plates or covers.
• Set all fasteners aside in order.
• Take a photo before removal.

Step 4: Disconnect the filler and vent hoses

• Use a flat-blade screwdriver or pliers to loosen hose clamps.
• Carefully remove the filler neck hose and vent hoses from the tank area.
• Catch any drips with a drain pan and shop towels.

Step 5: Disconnect the electrical connectors and fuel lines

• Unplug the pump electrical connector by hand.
• Use the fuel line disconnect tool to release the supply line.
• Inspect the line seals and replace any damaged O-rings.

Step 6: Lower the fuel tank

• Support the tank with the floor jack.
• Use a 14mm socket to remove the tank strap bolts.
• Lower the tank slowly and check that no hoses or wires remain attached.
• Remove the tank from under the vehicle.

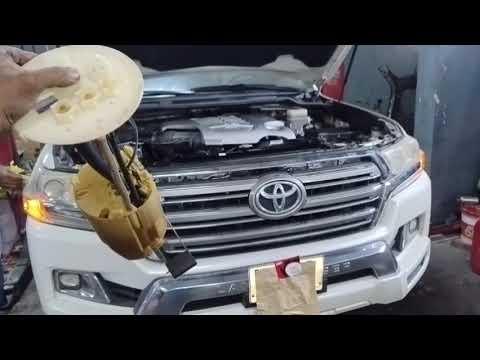

Step 7: Remove the fuel pump module

• Clean the top of the tank with shop towels before opening it.
• Use a flat-blade screwdriver or the correct lock-ring tool if equipped to remove the retaining ring.
• Lift the fuel pump module straight out of the tank.
• Remove and discard the old seal.

Step 8: Install the new fuel pump module

• Install the new fuel pump module seal in the tank opening.
• Lower the new fuel pump module into position without bending the float arm.
• Install the retaining ring and tighten it fully.
• Torque to factory specification.

Step 9: Reinstall the tank

• Raise the tank with the floor jack.
• Reinstall the strap bolts with a 14mm socket.
• Torque to factory specification.
• Reconnect the fuel line and electrical connector.
• Reinstall the filler and vent hoses and tighten clamps snugly.

Step 10: Reassemble and check for leaks

• Reinstall the shields and skid plates with the 12mm socket and 14mm socket.
• Reconnect the negative battery cable with a 10mm socket.
• Cycle the ignition key to ON 3-4 times before starting.
• Check carefully for fuel leaks at all connections.

---

✅ After Repair

• Start the engine and let it idle.
• Inspect under the vehicle and around the tank for leaks.
• Road test the vehicle and confirm normal acceleration.
• If the engine cranks long, cycle the key a few more times to prime the system.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$600 (parts only)

You Save: $650-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
