🔧 Fuel Pump - Replacement

Your Corolla uses an in-tank fuel pump module. On this car, the pump is serviced from inside the cabin through the rear seat area, so you do not need to drop the fuel tank in normal service. You’ll relieve fuel pressure, remove the access cover, swap the pump module, then verify there are no leaks and that the engine starts normally.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work outside or in a very well-ventilated area. Fuel vapors are flammable.
• No smoking, sparks, hot lamps, or open flame near the car.
• Relieve fuel pressure before opening the system.
• Disconnect the negative battery cable before removing the fuel pump module.
• Keep a fire extinguisher rated for flammable liquids nearby.
• Use eye protection and fuel-resistant gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8-inch ratchet
• Extension bar
• Trim panel tool
• Flat-blade screwdriver
• Fuel line disconnect tool
• Torque wrench
• Needle-nose pliers
• Shop towels
• Drain pan
• Safety glasses
• Fuel-resistant gloves
• Floor jack (rated 3-ton minimum)
• Jack stands

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module - Qty: 1
• Fuel pump seal / O-ring - Qty: 1
• Fuel tank access cover gasket or butyl seal - Qty: 1
• Fuel filter sock - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Move the front seats forward for room at the rear seat cushion.
• Relieve fuel pressure first by removing the fuel pump fuse or relay and running the engine until it stalls, then crank briefly again.
• Disconnect the negative battery cable before opening the fuel tank access area.
• Have rags ready to catch any spilled fuel.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Remove the fuel pump fuse or relay from the fuse box.
• Start the engine and let it run until it stalls.
• Crank the engine for a few seconds more to release remaining pressure.
• This reduces fuel spray risk.

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery terminal.
• Move the cable aside so it cannot touch the battery post.

Step 3: Access the fuel pump service panel

• Remove the rear seat cushion using hand pressure at the front release points.
• Use a trim panel tool and flat-blade screwdriver to remove the access cover fasteners and clips.

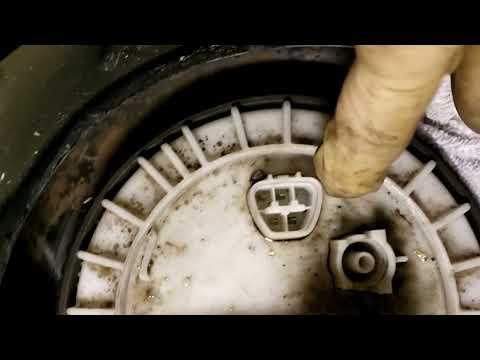

• Lift the access cover away to expose the top of the fuel pump module.

Step 4: Disconnect electrical and fuel connections

• Use a needle-nose pliers if needed to release retainers.
• Disconnect the fuel pump electrical connector.
• Use a fuel line disconnect tool to disconnect the fuel line from the module.
• Wrap the line with shop towels to catch any fuel drips.

Step 5: Remove the fuel pump module

• Clean around the module so dirt cannot fall into the tank.
• Use a flat-blade screwdriver or the proper retaining ring tool to remove the lock ring, if equipped.
• Lift the pump module straight up and out of the tank.
• Remove the old seal/O-ring and discard it.

Step 6: Install the new fuel pump module

• Install the new fuel pump seal / O-ring in the tank opening.
• Lower the new module into the tank carefully without folding the float arm.
• Reinstall the lock ring and tighten it securely.
• Torque to 39 Nm (29 ft-lbs) if your retaining ring uses a torque spec.

Step 7: Reconnect lines and reassemble

• Reconnect the fuel line until it clicks fully into place.
• Reconnect the electrical connector.
• Install the access cover and any sealing material.
• Reinstall the rear seat cushion.

Step 8: Restore power and prime the system

• Reconnect the negative battery cable using a 10mm socket.
• Reinstall the fuel pump fuse or relay.
• Turn the key to ON for 5 seconds, then OFF. Repeat 2-3 times to prime the fuel system.
• Start the engine and check for leaks around the access area.

---

✅ After Repair

• Let the engine idle for a few minutes and recheck for fuel odor or wet spots.
• Inspect the access cover area again after a short test drive.
• If the engine cranks long or sets a code, scan for fuel pressure or pump circuit faults.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $500-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
