🔧 Outback - Fuel Pump Replacement

On your Outback, the fuel pump sits inside the fuel tank and is serviced from inside the cabin under the rear seat. The job is mostly careful disassembly, keeping dirt out of the tank, and safely handling fuel and vapors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Rear-seat service-access fuel pump module (most 2016 Outback 2.5i).

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in strong ventilation; fuel vapors are flammable.
• ⚠️ No smoking, no open flames, no grinding/sparking tools near the car.
• ⚠️ Relieve fuel pressure before disconnecting lines to reduce spray.
• ⚠️ Disconnect the battery negative terminal to prevent accidental sparks.
• ⚠️ Keep dirt out of the tank; clean the area before opening the module.
• ⚠️ Have a fire extinguisher rated for flammable liquids nearby.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• 10mm socket
• 3/8" drive ratchet
• 3" extension (3/8" drive)
• Torque wrench (5-30 Nm range)
• Trim removal tool (plastic)
• Phillips #2 screwdriver
• Flat-blade screwdriver (small)
• Pick tool (small)
• Needle-nose pliers
• Shop rags
• Catch pan (shallow)
• Marker pen
• Vacuum (shop vac) with hose kept outside work area
• Fuel pump lock ring wrench (specialty)
• Brass punch (specialty)
• Hammer

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel line retainer clips (if equipped) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the fuel level if possible (under 1/2 tank is easier and less messy).
• Open the rear doors for working room and ventilation.
• Plan to replace the module seal (O-ring) every time the pump is removed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood.
• Use a 10mm socket to loosen the battery negative terminal and remove it from the post. Torque to 6 Nm (53 in-lbs) on reinstall.
• Locate the under-hood fuse/relay box and remove the fuel pump fuse/relay (use the diagram on the lid).
• Reconnect the battery negative temporarily using the 10mm socket, start the engine, and let it run until it stalls.
• Turn the key OFF, then disconnect the battery negative again using the 10mm socket.
• This reduces fuel spray when lines open.

Step 2: Remove the rear seat cushion to access the service hole

• From the rear seat area, use a trim removal tool (plastic) to pop the seat cushion clips up (pull up firmly at the front edge of the cushion).
• Lift the cushion out and set it aside.
• Vacuum loose dirt around the access area using a vacuum (shop vac) with hose kept outside work area.

Step 3: Remove the fuel pump access cover

• Use a Phillips #2 screwdriver (or 10mm socket, depending on fasteners) to remove the service cover fasteners.
• Lift the access cover off and set it aside.
• Use shop rags to wipe dust away so nothing falls into the tank opening.

Step 4: Disconnect the electrical connector and fuel lines

• Unplug the pump electrical connector by releasing the lock tab with a flat-blade screwdriver (small) if needed.
• Place a catch pan (shallow) and shop rags under the line connections.
• Disconnect quick-connect fuel lines by pressing the connector tabs; use a pick tool (small) only to help release the clip (do not pry hard).
• Use needle-nose pliers to slide any spring clamps back (if equipped), then twist the hose gently to break it free.
• Expect a small spill—keep rags ready.

Step 5: Mark orientation and remove the retaining ring

• Use a marker pen to mark the module position relative to the tank (helps reinstall correctly).
• If equipped with a lock ring: use a fuel pump lock ring wrench (specialty) to turn the ring counterclockwise and remove it.
• If you don’t have the wrench: use a brass punch (specialty) and hammer to tap the lock ring counterclockwise on the raised tabs. (Brass is softer and reduces spark risk.)

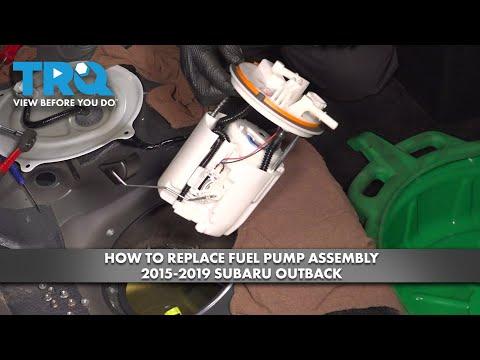

Step 6: Remove the fuel pump module

• Carefully lift the module straight up; angle it as needed to clear the float arm (the thin arm with a small “float” that measures fuel level).
• Let fuel drain from the module into the tank for a few seconds, then move it to the catch pan (shallow).
• Remove the old tank seal (O-ring) using a pick tool (small) and discard it.

Step 7: Install the new pump/module seal and reinstall the module

• Clean the seal groove and tank sealing surface using shop rags (no dirt, no lint).
• Install the new fuel pump module tank seal (O-ring/gasket) into the groove.
• Lower the new module into the tank, guiding the float arm carefully so it doesn’t bend.
• Align your marker marks so the module sits in the same orientation.

Step 8: Reinstall the retaining ring and reconnect lines

• Install the lock ring and tighten using the fuel pump lock ring wrench (specialty) until it is fully seated and aligned with its stops/marks.
• Reconnect fuel lines until they click/lock; gently tug to confirm they’re fully seated.
• Reconnect the electrical connector until it clicks.
• Mis-seated lines are the #1 leak cause.

Step 9: Reinstall the access cover and rear seat cushion

• Reinstall the access cover fasteners using a Phillips #2 screwdriver or 10mm socket. Torque to 3.5 Nm (31 in-lbs) if using small screws/bolts.
• Reinstall the rear seat cushion and press down firmly to snap the clips back in place.

Step 10: Restore power and prime the fuel system

• Reinstall the fuel pump fuse/relay in the under-hood box.
• Reconnect the battery negative terminal using a 10mm socket. Torque to 6 Nm (53 in-lbs).
• Key ON (engine OFF) for 5 seconds, then key OFF for 5 seconds. Repeat 3 times to prime the system.
• Start the engine and let it idle.

---

✅ After Repair

• With the engine idling, check the pump top and all fuel connections for leaks using a flashlight (no open flame).
• Make sure there is no fuel smell inside the cabin after reinstalling the seat.
• If the engine cranks long or runs rough, cycle the key ON/OFF a few more times to fully prime.
• If a check engine light appears, scan for codes (a loose connector can set EVAP/fuel codes).

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹45,000 (parts + labor)

DIY Cost: ₹8,000-₹25,000 (parts only)

You Save: ₹10,000-₹20,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 2-3 hours.

---
