🔧 GX460 - Fuel Pump Replacement

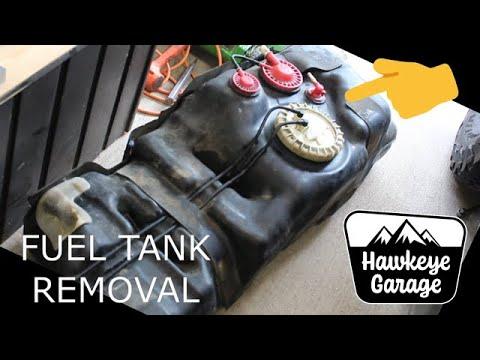

The fuel pump sits inside the fuel tank and supplies high-pressure fuel to your GX460’s engine. Replacement typically involves accessing the pump module from inside the cabin, disconnecting fuel lines/electrical connectors, then swapping the pump/module with a new seal to prevent leaks and fuel smells.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work in a well-ventilated area—fuel vapors are flammable.
• ⚠️ No smoking, no open flames, and avoid creating sparks (including trouble lights with hot bulbs).
• ⚠️ Relieve fuel pressure before disconnecting any fuel line to prevent spray.
• ⚠️ Disconnect the negative battery terminal before opening the tank/pump access to reduce spark risk.
• ⚠️ Keep a class B fire extinguisher nearby.
• ⚠️ Clean the area before opening the tank to keep dirt out of the fuel system.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Class B fire extinguisher
• Trim removal tool set
• Phillips screwdriver
• Flat-blade screwdriver
• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench
• Needle-nose pliers
• Fuel line quick-connect release tool (specialty)
• Pick set
• Shop towels
• Non-sparking plastic scraper
• Permanent marker
• Small container for residual fuel
• Handheld vacuum

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank fuel pump module assembly - Qty: 1
• Fuel pump module seal / tank O-ring gasket - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel line retaining clip(s) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and open the fuel door to relieve tank vapor pressure.
• 🧽 Vacuum and wipe the rear-seat area so dirt can’t fall into the tank.
• 🔋 Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and isolate it so it can’t spring back.
• ⛽ Plan to relieve fuel pressure before cracking any lines (steps below).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Use a 10mm socket to confirm the negative battery cable is disconnected.
• Locate the under-hood fuse/relay box and remove the fuel pump relay or EFI-related fuse using needle-nose pliers (use the diagram on the fuse box cover).
• Re-connect the negative cable temporarily using the 10mm socket, start the engine, and let it run until it stalls.
• Crank for 3 seconds once more, then turn the key OFF.
• Disconnect the negative battery cable again using the 10mm socket.

Step 2: Access the fuel pump service cover

• Move the rear seat as needed and remove trim pieces using a trim removal tool set.
• Remove any bolts holding the access area using a 10mm socket or 12mm socket (varies by fastener location).
• Lift the carpet/sound insulation and remove the service cover using a Phillips screwdriver or 10mm socket, depending on fasteners.
• Keep screws in a labeled cup.

Step 3: Clean the top of the pump module (critical)

• Use a handheld vacuum to remove loose dirt around the pump module.
• Wipe the area with shop towels so debris can’t drop into the tank when opened.

Step 4: Disconnect the electrical connector(s)

• Unplug the pump/module connector by releasing the tab using a pick set if needed (be gentle).
• Use a permanent marker to mark any connector routing/clips so it goes back the same way.

Step 5: Disconnect the fuel line(s)

• Place shop towels around the line connection to catch any fuel drips.
• Use the fuel line quick-connect release tool (specialty) to release the connector (this tool slides into the fitting to push the internal lock back).
• Pull the line straight off—do not twist aggressively.
• Cap/cover the open line ends with clean shop towels to keep dirt out.

Step 6: Remove the pump module retaining ring/fasteners

• Before loosening anything, use a permanent marker to mark the module orientation relative to the tank.
• If your GX460 uses small perimeter bolts, remove them evenly in a crisscross pattern using a 10mm socket.
• If your GX460 uses a lock ring, loosen it carefully using a non-sparking plastic scraper and flat-blade screwdriver (tap gently and evenly).
• Torque note: Use a torque wrench and tighten the retaining fasteners to Lexus specification for your exact retaining style (bolt pattern vs lock ring). Do not guess—overtightening can warp the seal.

Step 7: Remove the fuel pump module

• Lift the module straight up slowly; angle it as needed to clear the float arm (fuel level sensor).
• Drain residual fuel from the module into a small container and set the old module aside on shop towels.
• Remove the old tank seal/O-ring using a non-sparking plastic scraper.

Step 8: Install the new seal and pump module

• Install the new tank O-ring gasket fully seated in its groove (no twists).
• Lower the new module into the tank, aligning it to your orientation marks.
• Install the retaining ring/bolts by hand first, then snug evenly using a 10mm socket.
• Torque note: Final-tighten retaining fasteners evenly with a torque wrench to Lexus specification for your exact setup.

Step 9: Reconnect fuel lines and electrical

• Reconnect the fuel line until it clicks; gently tug to confirm it’s locked.
• Install any new fuel line retaining clip(s) as needed using needle-nose pliers.
• Reconnect the electrical connector(s) until the tab clicks.

Step 10: Reinstall the service cover and interior trim

• Reinstall the service cover using a Phillips screwdriver or 10mm socket.
• Reposition insulation and carpet, then reinstall trim using the trim removal tool set.
• Reinstall any seat/trim bolts using a 12mm socket.
• Torque note: Tighten seat/anchor bolts to Lexus specification using a torque wrench if any were removed.

---

✅ After Repair

• 🔋 Reconnect the negative battery terminal using a 10mm socket.
• ⛽ Prime the system: turn ignition ON (engine OFF) for 5 seconds, OFF for 5 seconds; repeat 3 times.
• 👃 Check carefully for fuel smell and look for leaks at the quick-connect and pump seal area before starting.
• 🚗 Start the engine and let it idle for 2 minutes while you re-check for leaks.
• 🧪 Test drive 10 minutes, then re-check for any seepage and confirm the fuel gauge reads normally.

---

💰 DIY vs Shop Cost

Shop Cost: ₹25,000-₹55,000 (parts + labor)

DIY Cost: ₹12,000-₹35,000 (parts only)

You Save: ₹13,000-₹20,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500-₹3,500/hour. This repair takes a shop approximately 2-4 hours.

---
