🔧 QX60 - Fuel Pump Replacement

Your QX60’s fuel pump sits inside the fuel tank as part of a pump/module assembly. Replacing it usually involves accessing the pump through an interior service opening, disconnecting fuel lines/electrical connectors, and swapping the module with a new seal to prevent leaks and fuel smells.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

Assumption: Your QX60 has the under-rear-seat service access panel (common on this model).

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area—fuel vapors are highly flammable.
• ⚠️ No smoking, no flames, no heat guns, and avoid spark-making tools near the open tank.
• ⚠️ Wear safety glasses and fuel-resistant gloves—pressurized fuel can spray.
• ⚠️ Depressurize the fuel system before disconnecting any fuel line.
• ⚠️ Disconnect the 12V battery negative terminal before opening the pump module.
• ⚠️ Keep dirt out of the tank—clean around the pump before opening it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Fuel-resistant nitrile gloves
• Fire extinguisher Class B
• 10mm socket
• Ratchet
• 6-inch extension
• Phillips screwdriver #2
• Trim removal tool set
• Small flat-blade screwdriver
• Pliers
• Fuel line quick-connector release tool set (specialty)
• Fuel pump lock ring wrench (specialty)
• Non-sparking brass punch (specialty)
• Small hammer
• Shop towels
• Catch pan
• Vacuum
• Torque wrench (inch-pound)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Fuel pump strainer (sock filter) - Qty: 1
• Fuel pump lock ring - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open a window for ventilation.
• Reduce fuel level if possible—less fuel means less spill risk.
• Have a catch pan and shop towels ready.
• Depressurize the fuel system: remove the fuel pump fuse/relay and run the engine until it stalls, then crank for 2-3 seconds to clear pressure.
• Disconnect the 12V battery negative terminal using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Depressurize and make it safe

• Use a 10mm socket to disconnect the battery negative terminal and isolate it so it can’t spring back.
• Use a 10mm socket and ratchet to access and remove the fuel pump fuse/relay (location varies by fuse box labeling).
• Start the engine and let it run until it stalls. Then crank 2-3 seconds.
• Reinstall the fuse/relay using your fingers (no tool needed).

Step 2: Remove the rear seat cushion

• Use a trim removal tool set to release the rear seat cushion clips (work gently to avoid breaking plastic retainers).
• Use a 10mm socket and ratchet to remove any seat cushion bolts if equipped.
• Lift the cushion out and set it aside.

Step 3: Open the fuel pump service cover

• Use a vacuum to remove loose dirt around the service cover area.
• Use a Phillips screwdriver #2 or 10mm socket (fastener style varies) to remove the service cover fasteners.
• Lift off the cover and keep hardware together.

Step 4: Disconnect electrical connector and fuel lines

• Unplug the pump electrical connector by releasing the lock tab with a small flat-blade screwdriver (do not pry hard). Press the tab, then pull.
• Place shop towels around the fuel line connection to catch drips.
• Disconnect the fuel line quick-connect fitting:
  • Use a fuel line quick-connector release tool set (specialty) if the connector won’t release by hand.
  • Use pliers only for hose clamps (do not crush plastic quick-connects).
• Have a catch pan ready for a small amount of fuel.

Step 5: Clean and mark the pump module position

• Use a vacuum and shop towels to thoroughly clean the top of the module and surrounding area.
• Use a small flat-blade screwdriver to gently mark alignment (or take a photo) so the new module goes in the same orientation.

Step 6: Remove the lock ring

• A lock ring is a large retaining ring that twists to clamp the pump module into the tank opening.
• Use a fuel pump lock ring wrench (specialty) to turn the lock ring counterclockwise and remove it.
• If space is tight, use a non-sparking brass punch (specialty) and small hammer to tap the ring counterclockwise (brass helps reduce spark risk).
• Torque: Lock rings are typically tightened by indexed position, not a torque value—tighten to the factory alignment/stop for your ring style.

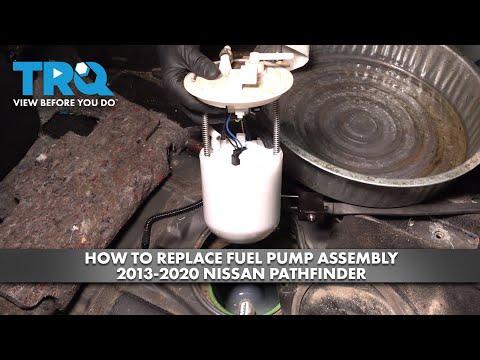

Step 7: Remove the fuel pump module

• Carefully lift the module straight up. Angle it as needed to clear the float arm (fuel level sender).
• Let fuel drain into the tank, then move the module to a catch pan.
• Remove the old tank seal (O-ring/gasket) using a small flat-blade screwdriver carefully (do not scratch the sealing surface).

Step 8: Install the new seal and new module

• Install the new tank seal by hand, ensuring it sits flat and is not twisted.
• Lower the new fuel pump module into the tank, matching the orientation marks/photo.
• Install the new lock ring by hand first to avoid cross-threading.
• Use the fuel pump lock ring wrench (specialty) to tighten until fully seated and aligned with the factory stop/marks.

Step 9: Reconnect lines and wiring

• Reconnect the fuel line quick-connect until it clicks. Then tug lightly to confirm it’s locked.
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall the service cover and rear seat

• Reinstall the service cover using a Phillips screwdriver #2 or 10mm socket.
• Torque: Service cover fasteners are light-duty—snug them evenly (do not strip). If your fasteners are bolts into body studs, use Torque to 3-5 Nm (27-44 in-lbs).
• Reinstall the rear seat cushion and bolts using a 10mm socket and ratchet.
• Torque: If seat cushion bolts are present, use Torque to 25 Nm (18 ft-lbs).

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Prime the fuel system: press the start button to IGN ON (do not start) for 5 seconds, then OFF. Repeat 2-3 times to build pressure.
• Start the engine and let it idle. Check for leaks at the pump top and fuel line connection for 2-3 minutes.
• If you smell fuel inside, stop and recheck the lock ring seating and seal position.
• Clear any stored codes with a scan tool if a warning light stays on (optional but recommended).

---

💰 DIY vs Shop Cost

Shop Cost: $750-$1,400 (parts + labor)

DIY Cost: $250-$700 (parts only)

You Save: $500-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
