🔧 Grand Caravan - Fuel Pump Replacement

The fuel pump on your Grand Caravan is part of an in-tank fuel pump module. Replacing it means relieving fuel pressure, unplugging the module, removing the lock ring, swapping the module and seal, then priming the system and checking carefully for leaks.

Difficulty Level: Advanced | Estimated Time: 2-5 hours

Assumption: Some Grand Caravans have an interior access panel; if yours doesn’t, you’ll lower the fuel tank (both methods below).

---

⚠️ Safety & Precautions

• 🔥 Work outside or in a well-ventilated area; fuel vapors are flammable.
• 🔥 No smoking, no shop lights with hot bulbs, no grinding/sparks nearby.
• 🧤 Wear safety glasses and fuel-resistant gloves; gasoline stings eyes/skin.
• ⚠️ Relieve fuel pressure before disconnecting lines to prevent spray.
• ⚠️ Disconnect the negative battery cable to reduce spark risk.
• ⚠️ Support the van with jack stands; never rely only on a floor jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher Class B
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• Torque wrench (3/8" drive, 10–100 ft-lbs range)
• Trim clip removal tool
• Flat-blade screwdriver
• Needle-nose pliers
• Fuel line disconnect pick set
• Brass punch (non-sparking)
• Small hammer
• Fuel pump lock ring tool (specialty)
• Shop towels
• Drain pan (fuel-safe)
• Siphon pump (fuel-safe) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring) - Qty: 1
• Fuel pump module lock ring - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Try to work with the tank below 1/4 full; a lighter tank is much safer to handle.
• Relieve fuel pressure before opening the system.
• Disconnect the negative battery terminal using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel pressure

• Open the hood and locate the fuse/relay box (TIPM) near the battery.
• Remove the fuel pump fuse/relay using needle-nose pliers (your owner’s manual cover diagram typically labels it).
• Start the engine and let it run until it stalls. Crank for 3 more seconds to bleed off remaining pressure.
• Turn the key off.

Step 2: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal and move it aside so it can’t spring back.

Step 3: Choose your access method

• If you find an interior access cover above the fuel tank: follow Steps 4–9.
• If there is no access cover: skip to Steps 10–17 (tank-lowering method).

Step 4: Expose the fuel pump access cover (if equipped)

• Move seats as needed and pull back the carpet where the access cover is located.
• Remove trim/clips using a trim clip removal tool and flat-blade screwdriver.
• Remove the access cover fasteners using a 10mm socket (fastener style may vary).

Step 5: Clean the area

• Use shop towels to wipe dirt off the top of the module and lines.
• Cleanliness prevents tank contamination.

Step 6: Disconnect electrical connector and fuel lines

• Unplug the fuel pump module electrical connector by releasing the tab with a flat-blade screwdriver (gentle pressure only).
• Place a drain pan (fuel-safe) and shop towels under the lines.
• Disconnect fuel line quick-connects using a fuel line disconnect pick set to lift the safety lock (if present), then press the connector tabs and pull straight off.

Step 7: Remove the lock ring

• Use a fuel pump lock ring tool (specialty) to turn the lock ring counterclockwise and remove it.
• If needed, tap the ring carefully using a brass punch (non-sparking) and small hammer.
• Use brass to reduce spark risk.

Step 8: Remove the fuel pump module

• Lift the module straight up slowly, tilting as needed to clear the float arm (the float arm reads fuel level).
• Let fuel drain into the tank for a few seconds, then remove the module.
• Remove the old tank seal (O-ring) using a flat-blade screwdriver carefully (do not gouge the sealing surface).

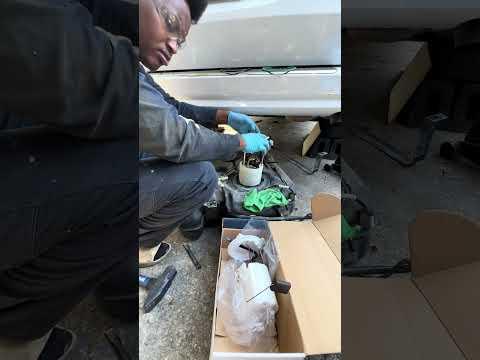

Step 9: Install the new module and seal

• Install the new O-ring seal into the tank groove (dry and fully seated).
• Lower the new module in, making sure the seal stays in place and the float arm isn’t bent.
• Install the new lock ring and tighten using the fuel pump lock ring tool (specialty) to the factory stop/mark alignment.
• Torque: Tighten the lock ring to the factory specification for your module/ring style.
• Reconnect fuel lines (push until you feel/hear a solid click) and reconnect the electrical connector.
• Reinstall the access cover using a 10mm socket, then reinstall carpet/trim with the trim clip removal tool.

Step 10: Raise and support the van (tank-lowering method)

• Chock wheels with wheel chocks.
• Lift the rear with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).

Step 11: Reduce fuel weight (recommended)

• If the tank is heavy, remove fuel using a siphon pump (fuel-safe) (specialty) into approved containers.

Step 12: Support the fuel tank

• Place a floor jack (rated 3-ton minimum) under the center of the tank with a wide wood pad (to spread pressure).

Step 13: Disconnect filler/vent connections (as accessible)

• Loosen hose clamps using a flat-blade screwdriver and slide hoses off carefully.
• Use shop towels to catch drips.

Step 14: Lower the tank slightly and disconnect lines/wiring

• Remove/loosen the tank strap bolts using a 15mm socket, 3/8" drive ratchet, and 6" extension (3/8" drive).
• Lower the jack slowly just enough to reach the top connections.
• Disconnect the electrical connector and fuel lines using a fuel line disconnect pick set and needle-nose pliers as needed.

Step 15: Lower the tank enough to access the pump module

• Lower the tank further with the floor jack (rated 3-ton minimum) until you can work comfortably on the top side.

Step 16: Replace the module (same as access method)

• Clean the top area with shop towels.
• Remove lock ring using the fuel pump lock ring tool (specialty) (or brass punch (non-sparking) and small hammer if needed).
• Remove module, replace O-ring seal, install new module, and tighten lock ring.
• Torque: Tighten the lock ring to the factory specification for your module/ring style.

Step 17: Reinstall the tank

• Raise the tank with the floor jack (rated 3-ton minimum).
• Reconnect electrical connector and fuel lines (confirm positive “click” engagement).
• Reconnect filler/vent hoses and tighten clamps using a flat-blade screwdriver.
• Reinstall tank straps and tighten strap bolts using a 15mm socket and torque wrench (3/8" drive, 10–100 ft-lbs range).
• Torque: Tighten tank strap fasteners to the factory specification.

---

✅ After Repair

• Reconnect the negative battery terminal using a 10mm socket.
• Reinstall the fuel pump fuse/relay in the TIPM.
• Prime the system: turn the key to ON (not start) for 3 seconds, OFF for 5 seconds; repeat 3 times.
• Start the engine and let it idle for 1–2 minutes.
• Check for fuel leaks at the module and all line connections.
• If you have a check engine light after repair, scan and clear codes (leak codes often set if a connector wasn’t fully seated).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
