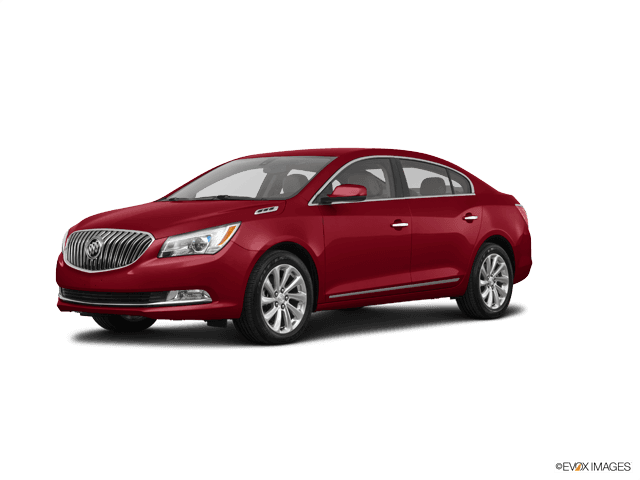

🔧 LaCrosse - Fuel Pump Replacement

On your LaCrosse, the fuel pump is an in-tank pump module. Replacing it usually requires lowering the fuel tank so you can remove the locking ring and lift the module out.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: This procedure assumes tank removal is required (most LaCrosse setups have no easy access panel) and uses common GM torque ranges—verify exact specs if you have OEM service info.

---

⚠️ Safety & Precautions

• 🔥 Work outside or in a very well-ventilated area; fuel vapors ignite easily.
• 🧯 Keep a Class B fire extinguisher nearby; no smoking/sparks/hot lights.
• 🛑 Relieve fuel pressure before disconnecting any fuel line to avoid spray.
• 🔋 Disconnect the negative battery cable before lowering the tank.
• 🧰 Support the tank with a jack; a tank with fuel is heavy and awkward.
• 🧪 Clean dirt off the tank top before opening it; dirt can ruin the new pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Class B fire extinguisher
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Socket set (8mm–18mm)
• Ratchet (3/8" drive)
• Extensions (3" and 6")
• Torque wrench (10–200 Nm range)
• Flat trim tool
• Flathead screwdriver
• Fuel line disconnect tool set 5/16" and 3/8"
• Fuel pump lock ring removal tool (specialty)
• Brass punch and hammer
• Drain pan (at least 2-gallon)
• Shop towels
• Permanent marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump module tank seal (O-ring/gasket) - Qty: 1
• Fuel line retaining clips (if damaged) - Qty: 1 set
• Shop-safe fuel container (approved gas can) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the front wheels.
• Drive the fuel level as low as possible; a nearly empty tank is much easier.
• Open the fuel door and loosen the gas cap to help vent pressure.
• Plan a “no sparks” workspace: no drop lights with hot bulbs, no grinding nearby.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel system pressure

• Open the hood and remove the underhood fuse box cover using a flat trim tool.
• Pull the fuel pump fuse/relay (labeled “FUEL PUMP” or similar) using a flathead screwdriver carefully.
• Start the engine and let it run until it stalls; crank 2–3 more seconds to bleed off pressure.
• Turn ignition OFF and reinstall the fuse/relay later (don’t forget).

Step 2: Disconnect the battery

• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.

Step 3: Raise and support the vehicle

• Lift the rear using a floor jack and support with jack stands under the proper rear lift points.
• Verify stability by gently pushing the car before you go underneath.

Step 4: Support the fuel tank

• Place the floor jack under the fuel tank with a wide block of wood (spreads the load).
• Raise the jack just enough to hold the tank (do not lift the car).

Step 5: Disconnect the filler neck and vent connections

• Loosen hose clamps (if equipped) using a flathead screwdriver.
• Disconnect the filler/vent hoses carefully; twist gently to break them free before pulling.
• Put a drain pan under the area—small spills are common.

Step 6: Disconnect fuel lines and electrical at the tank

• Locate the fuel feed/return (if equipped) and EVAP lines at the front/top of the tank.
• Use the fuel line disconnect tool set 5/16" and 3/8" to release the quick-connect fittings (this tool slides into the connector to unlock the internal spring).
• Disconnect the pump module electrical connector by releasing the tab using a flat trim tool.
• Cap/cover open lines with shop towels to keep dirt out.

Step 7: Remove the fuel tank straps and lower the tank

• Use a socket set (13mm–15mm typical) and ratchet to remove the fuel tank strap bolts.
• Slowly lower the tank a few inches with the floor jack.
• Stop and check for anything still attached (hoses/wires); disconnect as needed.
• Lower the tank fully and slide it out.
• Torque to 25–35 Nm (18–26 ft-lbs) on strap bolts during reassembly (typical GM range; verify if available).

Step 8: Clean the tank top and mark the module orientation

• Use shop towels to remove loose dirt around the pump opening.
• Use a permanent marker to mark the module position relative to the tank (helps install the new one correctly).

Step 9: Remove the fuel pump lock ring

• Preferred method: use a fuel pump lock ring removal tool (specialty) to turn the ring counterclockwise.
• Alternate method: use a brass punch and hammer to tap the lock ring counterclockwise (brass helps reduce spark risk).
• Lift the lock ring off once it releases.

Step 10: Remove the old pump module and seal

• Carefully lift the module straight up; angle it as needed to clear the float arm.
• Have a drain pan ready; the module will drip fuel.
• Remove the old tank seal (O-ring) using a flat trim tool (don’t scratch the sealing surface).

Step 11: Install the new seal and pump module

• Install the new seal by hand, making sure it sits flat and is not twisted.
• Lower the new module into the tank, aligning it with your marker line.
• Install the lock ring and tighten using the lock ring removal tool.
• Torque to 60–80 Nm (44–59 ft-lbs) on the lock ring (typical GM range; verify if available).
• Tip: If it won’t seat, re-check the seal.

Step 12: Reinstall the fuel tank

• Slide the tank back under the car and support it with the floor jack.
• Raise it slowly and reconnect the electrical connector and all lines.
• Reconnect fuel lines until they click; gently tug to confirm they’re locked.
• Reconnect filler/vent hoses and tighten clamps using a flathead screwdriver.
• Reinstall tank straps and bolts using a socket set and ratchet, then torque to 25–35 Nm (18–26 ft-lbs).

Step 13: Lower the vehicle and restore power

• Lower the car from the jack stands using the floor jack.
• Reconnect the battery negative cable using a 10mm socket (torque to 5–7 Nm (44–62 in-lbs)).
• Reinstall the fuel pump fuse/relay and fuse box cover using a flat trim tool.

Step 14: Prime the fuel system and check for leaks

• Turn ignition ON (engine OFF) for 5 seconds, then OFF for 5 seconds; repeat 3–4 times to prime.
• Start the engine and let it idle.
• Inspect under the car and around tank connections for leaks using shop towels and your eyes.

---

✅ After Repair

• Let the engine idle for 2–3 minutes and re-check for any seepage or fuel smell.
• Road test for 10–15 minutes, then re-check again for leaks.
• If a check engine light appears, scan for codes—an EVAP line may not be fully seated.
• Dispose of fuel-soaked towels safely; store them outside in a sealed metal container if possible.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
