🔧 Envision - Fuel Pump Replacement

Your Envision can have two “fuel pumps”: an in-tank (low-pressure) fuel pump module in the fuel tank, and an engine-mounted high-pressure fuel pump (HPFP) for the turbo direct-injection system. The correct procedure depends on which pump you’re replacing, so below are both repair paths.

Difficulty Level: Advanced | Estimated Time: 2.0-5.0 hours

Assumption: U.S.-market Envision with in-tank pump module + engine HPFP.

---

⚠️ Safety & Precautions

• ⚠️ Work outside or in a very well-ventilated area—fuel vapors can ignite easily.
• ⚠️ No smoking, no sparks, no trouble lights with hot bulbs—use an LED work light.
• ⚠️ Relieve fuel pressure before opening any fuel line to prevent spray.
• ⚠️ Disconnect the negative battery cable before unplugging fuel pump wiring.
• ⚠️ Keep a Class B fire extinguisher nearby.
• ⚠️ Clean around the pump before opening the tank—dirt in the tank can ruin the new pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Fire extinguisher (Class B)
• LED work light
• 10mm socket
• Ratchet
• 3/8" torque wrench
• Trim clip remover
• Flat-blade screwdriver
• Fuel line quick-disconnect tool set (specialty)
• Fuel pressure gauge kit (specialty)
• Fuel pump lock ring tool (specialty)
• Brass punch
• Small hammer
• Shop towels
• Drain pan
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric wrench set

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank fuel pump module (with level sender, if equipped) - Qty: 1
• Fuel pump module tank seal O-ring - Qty: 1
• High-pressure fuel pump (HPFP) - Qty: 1
• HPFP mounting seal/gasket (as applicable) - Qty: 1
• High-pressure fuel line (recommended if specified as one-time-use) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and use wheel chocks.
• Lower the fuel level if possible—working with a near-empty tank is safer and easier.
• Relieve fuel pressure (methods below). “Relieve fuel pressure” means you remove pressure so fuel won’t spray when you open a line.
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve fuel system pressure

• Open the hood and remove the engine cover (pull up carefully by hand).
• Method A (preferred): Use a fuel pressure gauge kit (specialty) at the fuel test point (if equipped) and bleed pressure into a drain pan per the gauge kit instructions.
• Method B: Remove the fuel pump fuse/relay, start the engine, and let it stall. Crank for 2–3 seconds more. Reinstall the fuse/relay after.
• Keep towels ready for small spills.

Step 2: Choose your repair path (In-tank module vs HPFP)

• If the pump you’re replacing is inside the tank under the rear seat/cargo area, follow Steps 3–9.
• If the pump you’re replacing is bolted to the engine (high-pressure), follow Steps 10–15.

Step 3: Access the in-tank fuel pump module

• Move to the rear seat/cargo floor area and remove trim panels as needed using a trim clip remover and flat-blade screwdriver.
• Locate the fuel pump service access cover (if equipped) and remove fasteners using a 10mm socket and ratchet.
• Clean the top of the pump area thoroughly using shop towels.

Step 4: Disconnect the in-tank pump electrical connector and fuel lines

• Unplug the electrical connector by releasing the lock tab with a flat-blade screwdriver.
• Disconnect the fuel quick-connect line(s) using a fuel line quick-disconnect tool set (specialty).
• Catch any drips with a drain pan and shop towels.
• Pull lines straight—don’t twist hard.

Step 5: Remove the fuel pump lock ring

• Use a fuel pump lock ring tool (specialty) to turn the lock ring counterclockwise and remove it.
• If needed, tap the lock ring carefully using a brass punch and small hammer (brass helps reduce spark risk).

Step 6: Remove the pump module from the tank

• Lift the module straight up slowly, using shop towels to control fuel drips.
• Angle the module as needed to clear the float arm (fuel level sender) without bending it.

Step 7: Replace the tank seal O-ring

• Remove the old seal O-ring by hand and wipe the sealing surface clean with shop towels.
• Install the new fuel pump module tank seal O-ring evenly into its groove.
• Never reuse the old O-ring.

Step 8: Install the new in-tank fuel pump module

• Carefully lower the new module into the tank, keeping the float arm from snagging.
• Align the module orientation marks (if present) by hand.
• Install the lock ring and tighten using the fuel pump lock ring tool (specialty) until fully seated and aligned.

Step 9: Reconnect lines, wiring, and close up

• Reconnect the fuel line(s) until you hear/feel a positive “click.”
• Reconnect the electrical connector.
• Reinstall the access cover and interior trim using a 10mm socket and ratchet.

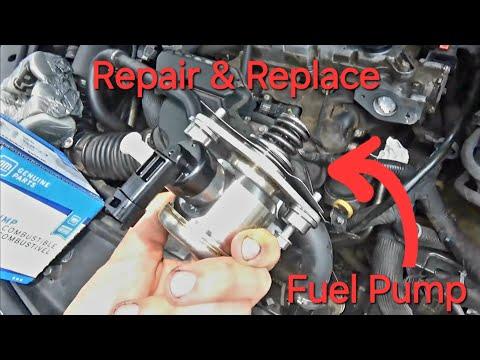

Step 10: Access the high-pressure fuel pump (HPFP)

• With the negative battery cable already disconnected, remove any intake ducting that blocks access using a flat-blade screwdriver and metric wrench set.
• Locate the HPFP on the engine (it will have a metal high-pressure line attached).

Step 11: Disconnect the HPFP electrical connector

• Release the lock tab and unplug the connector using a flat-blade screwdriver.

Step 12: Disconnect the low-pressure feed line (if equipped at the pump)

• Use the fuel line quick-disconnect tool set (specialty) to disconnect the feed line.
• Use shop towels to catch fuel.

Step 13: Remove the high-pressure line (use extreme care)

• Place shop towels under the connection.
• Use the correct-size metric wrench set to loosen and remove the high-pressure line fitting(s).
• If your replacement instructions specify a one-time-use line, install a new high-pressure fuel line.

Step 14: Remove the HPFP and install the new pump

• Remove the HPFP mounting bolts using a ratchet and the correct socket from your metric wrench set.
• Remove the old pump and the old seal/gasket.
• Install the new HPFP mounting seal/gasket.
• Install the new HPFP and tighten mounting bolts evenly using a 3/8" torque wrench to the OEM specification for your pump/engine setup.

Step 15: Reconnect lines and wiring

• Reconnect the high-pressure line using a metric wrench set, then finish-tighten with a 3/8" torque wrench to OEM specification.
• Reconnect the low-pressure feed line (quick-connect) until it clicks.
• Reconnect the electrical connector.
• Reinstall intake ducting and the engine cover by hand.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Prime the system: turn ignition to ON for 5 seconds, then OFF for 10 seconds; repeat 3–4 times (do not crank yet).
• Start the engine and let it idle. Inspect for leaks at every connection using an LED work light.
• If you have a fuel pressure gauge kit (specialty), verify pressure is stable and within specification.
• Road test briefly, then recheck for seepage/leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,600 (parts + labor)

DIY Cost: $180-$900 (parts only)

You Save: $470-$700+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-5 hours.

---
