🔧 X5 - Fuel Pump Replacement

Your X5 can have two different “fuel pumps”: the in-tank low-pressure fuel pump (inside the fuel tank) and the engine-mounted high-pressure fuel pump (HPFP) (on the engine). The symptoms and repair location are very different, so below are complete DIY steps for both.

Assumption: Stock fuel system; no aftermarket tuning or upgraded pumps.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work in a well-ventilated area; fuel vapors ignite easily.
• ⚠️ No smoking, flames, heat guns, or trouble lights with hot bulbs.
• ⚠️ Wear safety glasses and fuel-resistant gloves; fuel can spray under pressure.
• ⚠️ Disconnect the negative battery terminal before opening the fuel system.
• ⚠️ Keep a Class B fire extinguisher nearby.
• ⚠️ Clean dirt away before opening the tank access to prevent contamination.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Class B fire extinguisher
• Plastic trim removal tool set
• 1/4" drive ratchet
• 3/8" drive ratchet
• Socket set (8mm, 10mm, 13mm)
• Torx bit set (T20, T25, T30)
• Flat-blade screwdriver (small)
• Fuel line disconnect pick tool
• Lock ring removal tool for BMW fuel pump (specialty)
• Shop towels
• Catch pan (fuel-safe)
• Flashlight (LED)
• Torque wrench (5–60 Nm range)
• OBD2 scan tool with BMW functions (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank fuel pump module (low-pressure fuel delivery module) - Qty: 1
• Fuel pump module sealing ring (tank gasket) - Qty: 1
• Fuel pump lock ring (if damaged or one-time-use per kit) - Qty: 1
• High-pressure fuel pump (HPFP) - Qty: 1
• High-pressure fuel line(s) (one-time-use) - Qty: 1
• Low-pressure feed line sealing washers/O-rings (as equipped) - Qty: 1
• Intake/throttle pipe seal(s) (if removed and required) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the fuel filler door and loosen the gas cap to reduce tank pressure.
• Disconnect the battery negative terminal using a 10mm socket.
• Relieve fuel pressure: remove the fuel pump fuse/relay (per fuse card), then start the engine and let it stall; crank 3 seconds more. This reduces spray when lines open.
• Have shop towels and a fuel-safe catch pan ready before disconnecting any line.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Path A: In-tank low-pressure fuel pump (under rear seat)

Step 1: Remove the rear seat bottom cushion

• Use a plastic trim removal tool to pop up the front edge clips of the rear seat bottom.
• Lift the cushion out and set it aside.

Step 2: Access the fuel pump service cover

• Locate the round/oval access cover under the seat area.
• Remove fasteners using a 10mm socket or Torx T20 (varies by cover style).
• Peel back the butyl sealer carefully using a plastic trim tool. (Butyl sealer is a sticky factory sealing strip.)

Step 3: Clean the area thoroughly

• Use a flashlight (LED) to inspect dirt around the pump module.
• Wipe and vacuum around the module so nothing falls into the tank opening.

Step 4: Disconnect electrical connector and fuel lines

• Unplug the pump electrical connector using a small flat-blade screwdriver to lift the lock tab.
• Place shop towels around the fuel line fittings.
• Release quick-connect lines using a fuel line disconnect pick tool, then pull the lines straight off.
• Drain any fuel into a fuel-safe catch pan.

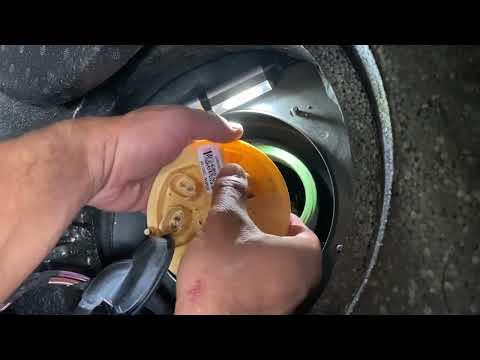

Step 5: Remove the lock ring and lift out the module

• Use the lock ring removal tool for BMW fuel pump (specialty) to turn the ring counterclockwise and remove it.
• Lift the module straight up slowly; tilt as needed to clear the float arm. (The float is the fuel level sender.)
• Remove and discard the old sealing ring.

Step 6: Install the new sealing ring and pump module

• Lightly wet the new sealing ring with clean gasoline (use a small amount on a towel) so it seats smoothly.
• Install the new sealing ring in the tank opening.
• Lower the new module into place, keeping the float arm from binding.

Step 7: Reinstall lock ring, reconnect lines, and close up

• Install the lock ring and tighten using the lock ring removal tool for BMW fuel pump (specialty).
• Torque: Tighten the lock ring to BMW factory specification.
• Reconnect fuel lines until you feel/hear a click, then tug-test gently.
• Reconnect the electrical connector.
• Reinstall the access cover using a 10mm socket or Torx T20.
• Press the rear seat bottom back into its clips.

Path B: Engine-mounted high-pressure fuel pump (HPFP)

Step 8: Remove engine covers and open access

• Remove the top engine cover by pulling upward (it’s usually press-fit with rubber grommets).
• If intake ducting blocks access, loosen clamps using an 8mm socket and remove ducting.
• Take a photo before unplugging anything.

Step 9: Disconnect HPFP electrical connector and low-pressure feed line

• Unplug the HPFP connector using a small flat-blade screwdriver to release the lock.
• Wrap the low-pressure line with shop towels, then disconnect using the fuel line disconnect pick tool.

Step 10: Disconnect the high-pressure fuel line(s)

• Use the correct-size wrench/socket (varies by fitting) from your socket set to loosen the high-pressure fitting.
• Keep your face away from the fitting as you crack it loose; fuel may spray.
• Important: Replace any high-pressure line specified as one-time-use.

Step 11: Remove the HPFP and install the new one

• Remove HPFP mounting fasteners using a Torx bit or socket (varies by exact fastener type).
• Remove the pump carefully and compare it to the new pump (ports and connector should match).
• Install the new pump and start all fasteners by hand to avoid cross-threading.
• Torque: Tighten HPFP fasteners and fuel fittings to BMW factory specification.

Step 12: Reassemble and prepare to prime

• Reconnect the low-pressure line (click + tug-test).
• Reconnect the electrical connector.
• Reinstall intake ducting using an 8mm socket.
• Reinstall the engine cover.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Prime the system before starting:
  • Turn ignition ON (engine OFF) for 10 seconds, then OFF for 10 seconds; repeat 3–5 times.
  • If you have a BMW-capable scan tool, run the fuel pump prime/bleed function if available. (This commands the pump to purge air.)
• Start the engine and let it idle. Inspect for leaks at every connection using a flashlight (LED).
• Clear fuel-related faults with the OBD2 scan tool with BMW functions (specialty) if any are stored.
• Test drive 5–10 minutes, then re-check for leaks and fuel smell.

---
