🔧 A4 - Fuel Pump Replacement

On your A4, “fuel pump” can mean either the in-tank low-pressure fuel pump (LPFP) (inside the fuel tank under the rear seat) or the engine-mounted high-pressure fuel pump (HPFP) (on top of the engine). The replacement steps and parts are very different, so below are clear step-by-step paths for both.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: You’re replacing either LPFP or HPFP on a stock A4.

---

⚠️ Safety & Precautions

• ⚠️ Work in a ventilated area; fuel vapors ignite easily.
• ⚠️ No smoking, no flames, no heat guns, no incandescent work lights.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line.
• ⚠️ Wear safety glasses and fuel-resistant gloves; fuel can spray.
• ⚠️ Disconnect the negative battery terminal before opening the fuel system.
• ⚠️ Keep a Class B fire extinguisher nearby.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• Torque wrench (5–60 Nm range)
• Flat-trim removal tool
• Pick tool
• Fuel line disconnect tool set
• Hose clamp pliers
• Pliers
• T25 Torx bit
• T30 Torx bit
• 17mm wrench
• 19mm wrench
• Brass punch
• Small hammer
• Shop towels
• Drain pan
• Non-marring marker
• Nitrile gloves
• Safety glasses
• Class B fire extinguisher

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• In-tank low-pressure fuel pump module - Qty: 1
• Fuel pump sealing gasket (tank O-ring) - Qty: 1
• Fuel pump lock ring - Qty: 1
• High-pressure fuel pump - Qty: 1
• High-pressure fuel pump O-ring / gasket set - Qty: 1
• High-pressure fuel line (pump-to-rail) (recommended) - Qty: 1
• Shop absorbent pads - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and open the fuel door to release tank vapor pressure.
• Disconnect the negative battery terminal using a 10mm socket.
• Relieve fuel pressure: remove the fuel pump fuse, start the engine, and let it run until it stalls; then crank 3–5 seconds more.
• Place shop towels around any fuel connection you open.
• A “quick-connect” fitting releases with tabs. A quick-connect is a push-on fuel fitting that locks with internal clips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify which pump you’re replacing

• LPFP (in-tank) is under the rear seat and is common for no-start with low feed pressure, loud whining from tank area, or low-pressure fuel codes.
• HPFP (engine-mounted) is on top of the engine and is common for loss of power under boost, long crank, or rail pressure codes.
• If you already have the replacement part in hand, match its location: tank module = LPFP, small metal pump on engine = HPFP.

Step 2: Relieve pressure and disconnect the battery (common)

• Remove the fuel pump fuse (refer to your fuse card) and run the engine until it stalls.
• Disconnect the negative battery terminal using a 10mm socket.
• Put safety glasses and nitrile gloves on.

Step 3: Replace the in-tank low-pressure fuel pump (LPFP) (rear seat)

• Remove the rear seat bottom: use a flat-trim removal tool to release the front clips, then lift the cushion out.
• Remove the access cover fasteners using a T25 Torx bit (or nuts using a 10mm socket, depending on cover style), then lift the cover.
• Clean the area around the pump flange using shop towels so dirt cannot fall into the tank.
• Disconnect the electrical connector by lifting the lock tab with a pick tool.
• Disconnect fuel lines:
  • Wrap with shop towels.
  • Release the quick-connect tabs by hand or with a fuel line disconnect tool set, then pull straight off.
• Mark the pump module orientation to the tank using a non-marring marker.
• Remove the lock ring:
  • Use a brass punch and small hammer to tap the ring counterclockwise until free.
  • Brass reduces spark risk.

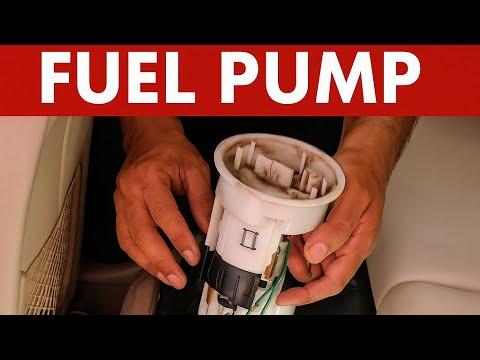

• Lift the pump module out slowly and angle it to avoid bending the float arm.
• Remove and discard the old tank sealing gasket (O-ring) using a pick tool.

Step 4: Install the new LPFP module

• Install the new sealing gasket (O-ring) into the tank opening by hand.
• Carefully insert the new pump module, keeping the float arm free and aligning your orientation mark.
• Install the new lock ring and tighten it using a brass punch and small hammer.
• Torque to OEM specification using a torque wrench (5–60 Nm range) if you have a lock-ring adapter; otherwise tighten securely and evenly until fully seated.
• Reconnect fuel lines (push until you hear/feel a click), then tug lightly to confirm locked.
• Reconnect the electrical connector.
• Reinstall the access cover using a T25 Torx bit or 10mm socket and Torque to OEM specification.
• Reinstall the rear seat bottom by aligning rear hooks, then press down firmly to snap the front clips in.

Step 5: Replace the engine-mounted high-pressure fuel pump (HPFP) (top of engine)

• Remove the engine cover by pulling upward with both hands (it’s press-fit).
• Place shop towels under the pump area to catch fuel.
• Disconnect the HPFP electrical connector using a pick tool to lift the lock, then pull off.
• Disconnect the low-pressure feed line to the HPFP (if equipped with a clamp):
  • Use hose clamp pliers to move the clamp back.
  • Twist the hose gently and pull it off (use shop towels).
• Disconnect the high-pressure line (pump-to-rail):
  • Hold the fitting with a 17mm wrench and loosen the line nut with a 19mm wrench (sizes may vary by line).
  • Expect a small fuel release; catch it with shop towels and a drain pan.
• Remove the HPFP mounting fasteners using the correct socket/bit (commonly T30 Torx bit or a small socket depending on pump version).
• Pull the HPFP straight out. Keep it aligned so you don’t damage the follower/drive interface.

Step 6: Install the new HPFP

• Install the new HPFP O-ring/gasket (lightly wet with clean gasoline for easier seating).
• Position the pump squarely and press it in evenly by hand.
• Install and tighten the mounting fasteners evenly using a torque wrench and Torque to OEM specification.
• Reconnect the high-pressure line:
  • Start the line nut by hand to avoid cross-threading.
  • Tighten with a torque wrench and Torque to OEM specification.
  • Do not over-tighten high-pressure fittings.
• Reconnect the low-pressure hose and clamp using hose clamp pliers.
• Reconnect the electrical connector.
• Reinstall the engine cover by pressing down until seated.

---

✅ After Repair

• Reinstall the fuel pump fuse.
• Reconnect the negative battery terminal using a 10mm socket and Torque to OEM specification.
• Prime the fuel system: turn ignition ON (do not start) for 10 seconds, OFF for 10 seconds; repeat 3–5 times.
• Start the engine and let it idle for 2–3 minutes.
• Inspect for leaks:
  • LPFP: check lines and lock-ring area under rear seat.
  • HPFP: check hose connection and high-pressure line fittings.
• If a check engine light remains, scan for codes and clear them after confirming no leaks.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000–₹55,000 (parts + labor, depending on LPFP vs HPFP)

DIY Cost: ₹10,000–₹40,000 (parts only)

You Save: ₹8,000–₹15,000+ by doing it yourself!

Shop labor rates vary but typically run ₹1,500–₹3,500/hour. This repair takes a shop approximately 2–4 hours.

---
