🔧 Tucson - Fuel Pump Replacement

Replacing the in-tank fuel pump on your Tucson involves relieving fuel pressure, accessing the pump module under the rear seat area, removing the fuel pump retaining ring, and installing the new pump module with a fresh seal. The fuel pump sits inside the fuel tank and supplies pressurized fuel to the 1.6L turbo engine.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Gasoline is highly flammable. Work outside or in a very well-ventilated area away from sparks, heaters, cigarettes, and open flames.
• ⚠️ Disconnect the negative battery cable before opening the fuel system.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line to reduce spray risk.
• ⚠️ Wear safety glasses and fuel-resistant gloves. Fuel can irritate skin and eyes.
• ⚠️ Keep a Class B/C fire extinguisher nearby.
• ⚠️ Do not use power tools or metal punches near the open fuel tank. Sparks can ignite fuel vapors.
• ⚠️ Replace the fuel pump seal. Reusing the old seal can cause fuel odor or leaks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8-inch ratchet
• 3/8-inch extension
• Trim removal tool
• Flat-blade screwdriver
• Fuel line disconnect tool set (specialty)
• Fuel pump lock ring tool (specialty)
• Brass drift punch (non-sparking)
• Rubber mallet
• Needle-nose pliers
• Shop towels
• Fuel-safe drain pan
• Torque wrench, inch-pound
• Safety glasses
• Fuel-resistant gloves
• Class B/C fire extinguisher

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Fuel pump module assembly - Qty: 1
• Fuel pump tank seal/O-ring - Qty: 1
• Fuel line retaining clip - Qty: 1-2
• Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park your Tucson on level ground, shift to Park, and set the parking brake.
• Use up fuel first if possible. A tank below 1/4 full makes this job safer and cleaner.
• Open the fuel door and remove the fuel cap to release tank vapor pressure.
• Move the front seats forward to create working room at the rear seat area.
• A fuel pump lock ring tool is a round tool that turns the large metal retaining ring without damaging it.
• A fuel line disconnect tool releases the plastic quick-connect fitting without breaking the line.
• A brass drift punch is a soft, non-sparking punch used when a lock ring tool cannot fit.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve Fuel Pressure

• Use your hands to remove the fuel cap, then reinstall it loosely after pressure vents.
• Use a trim removal tool to open the interior fuse panel cover.
• Use needle-nose pliers to remove the fuel pump fuse or fuel pump relay from the fuse/relay panel.
• Start the engine and let it run until it stalls. This means most fuel pressure has been used up.
• Use the ignition button/key to crank the engine for 3-5 seconds one more time.
• Turn ignition OFF.
• Tip: Keep rags ready for small fuel drips.

Step 2: Disconnect the Battery

• Use a 10mm socket and 3/8-inch ratchet to loosen the negative battery terminal nut.
• Lift the negative cable off the battery post and move it aside so it cannot touch the terminal.
• Torque on reassembly: 5-6 Nm (44-53 in-lbs)

Step 3: Remove the Rear Seat Bottom Cushion

• Use your hands to feel along the front lower edge of the rear seat cushion for the release points.
• Pull upward firmly at the front of the cushion to release the clips.
• Use a 12mm socket and 3/8-inch ratchet if your cushion has rear retaining bolts.
• Lift the cushion out carefully and place it somewhere clean.
• Torque on reassembly for seat bolts: 39-54 Nm (29-40 ft-lbs)

Step 4: Open the Fuel Pump Access Cover

• Use a trim removal tool to lift the carpet or insulation flap over the fuel pump access panel.
• Use a flat-blade screwdriver to gently lift the access cover if it is sealed with adhesive.
• Use shop towels to clean dirt and dust from the top of the fuel pump area before opening anything.
• Tip: Dirt must not fall into the tank.

Step 5: Disconnect the Fuel Pump Electrical Connector

• Use your thumb or a flat-blade screwdriver to press the connector locking tab.
• Pull the electrical connector straight off the fuel pump module.
• Do not pull on the wires. Pull only on the plastic connector body.

Step 6: Disconnect the Fuel Lines

• Place shop towels around the fuel line fittings and position a fuel-safe drain pan nearby.
• Use a fuel line disconnect tool set to release the quick-connect fuel line fittings.
• Pull the fuel lines straight off the pump nipples once the retainers are released.
• Use needle-nose pliers only on the retaining clip if needed. Do not crush the plastic connector.
• Cover the open line ends with clean shop towels to keep dirt out.

Step 7: Mark the Fuel Pump Position

• Use a marker or a small piece of tape to mark the pump module’s position relative to the tank.
• This helps the new pump sit in the same direction, so the fuel lines connect correctly.

Step 8: Remove the Fuel Pump Lock Ring

• Use a fuel pump lock ring tool and 3/8-inch ratchet to turn the lock ring counterclockwise.
• If the tool does not fit, use a brass drift punch and rubber mallet to tap the lock ring counterclockwise.
• Do not use a steel punch or hammer near fuel vapors.
• Remove the lock ring and set it on clean shop towels.

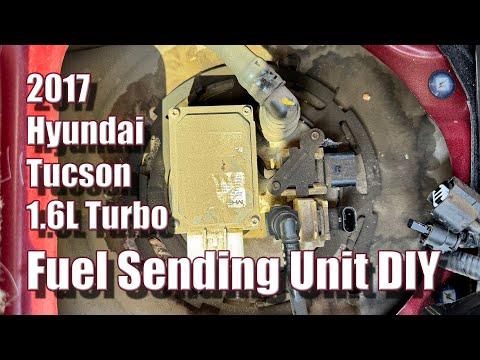

Step 9: Remove the Fuel Pump Module

• Use both hands to slowly lift the fuel pump module straight up from the tank.
• Tilt the module slightly as needed to clear the fuel level float arm.
• Let fuel drain from the pump module into the tank before lifting it fully out.
• Place the old module into a fuel-safe drain pan.
• Remove the old fuel pump seal/O-ring from the tank opening by hand.

Step 10: Install the New Seal

• Use clean shop towels to wipe the tank sealing surface.
• Install the new fuel pump tank seal/O-ring by hand into the groove at the tank opening.
• Make sure the seal sits flat and is not twisted.
• Tip: A twisted seal causes fuel smell.

Step 11: Install the New Fuel Pump Module

• Use both hands to lower the new fuel pump module into the tank.
• Guide the fuel level float arm in carefully so it does not bend.
• Align the pump with the mark you made earlier.
• Press the pump module down evenly against the new seal.

Step 12: Reinstall the Lock Ring

• Start the lock ring by hand to avoid cross-threading or misalignment.
• Use the fuel pump lock ring tool and 3/8-inch ratchet to turn the ring clockwise until fully seated.
• If using a brass drift punch and rubber mallet, tap the lock ring clockwise until it reaches the locked stop.
• Make sure the lock ring tabs are fully engaged.

Step 13: Reconnect Fuel Lines and Electrical Connector

• Push each fuel line straight onto its matching fuel pump fitting by hand until it clicks.
• Use your hand to gently pull back on each line to confirm it is locked.
• Install new fuel line retaining clips if any clip is loose, cracked, or missing.
• Push the electrical connector onto the fuel pump module until the lock clicks.

Step 14: Reconnect Battery and Prime the Fuel System

• Use a 10mm socket and 3/8-inch ratchet to reconnect the negative battery cable.
• Torque to 5-6 Nm (44-53 in-lbs)
• Reinstall the fuel pump fuse or relay using needle-nose pliers.
• Turn ignition ON without starting the engine for 5 seconds, then turn it OFF.
• Repeat this ON/OFF cycle 3 times. This fills the fuel lines with pressure.

Step 15: Check for Leaks Before Reassembly

• Use safety glasses and inspect the pump top area with a flashlight.
• Look and smell for fuel leaks around the fuel lines, lock ring, and seal.
• Start the engine and let it idle for 1-2 minutes.
• Turn the engine OFF immediately if you see wet fuel or smell strong fuel vapor.

Step 16: Reinstall the Access Cover and Rear Seat

• Use your hands to press the access cover back into place.
• Use a trim removal tool to tuck the carpet or insulation back neatly.
• Set the rear seat cushion back into position.
• Use a 12mm socket and 3/8-inch ratchet to reinstall any rear seat bolts.
• Torque to 39-54 Nm (29-40 ft-lbs)
• Push the front of the cushion downward until the clips snap into place.

---

✅ After Repair

• ✅ Start your Tucson and let it idle for several minutes.
• ✅ Check again for fuel leaks or fuel odor around the access cover area.
• ✅ Road test gently for 5-10 minutes, then recheck for leaks.
• ✅ If the engine cranks longer than normal at first, cycle the ignition ON/OFF a few more times to prime the system.
• ✅ If a check engine light appears, scan for fuel pressure or fuel level sender codes.
• ✅ Dispose of fuel-soaked towels safely according to local hazardous waste rules.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$500 (parts only)

You Save: $430-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
